Simplex EE1000 Series Simplex Entry and Egress Pushbutton Lock Knob

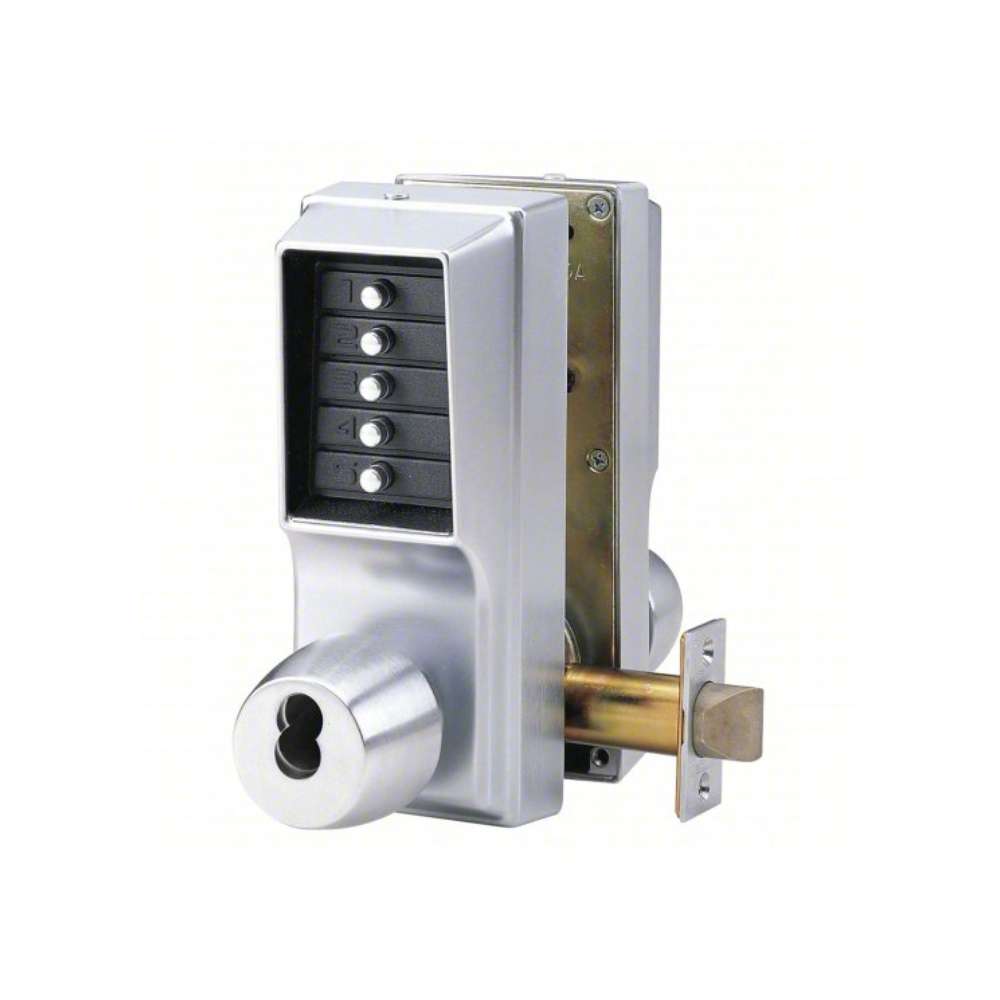

EE1000 Series Pushbutton Lock with Knob by Simplex / Unican
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.
The Simplex EE1000 Series provides interior and exterior access by combination. This mechanical lock, with knob option, elimates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
Access Control: Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides interior and exterior access by combination.
No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements.
Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors.
Number of Codes: Single access code - one easy-to-manage code for all users.
Programming: Lock is easily programmed via keypad without removing lock from the door.
Handing: Factory-handed for left-hand doors; easily field reversible.
Economical: A cost effective access control solution.
Door Thickness: 1-3/4" to 2-1/4". Modified lock for more than 2" (specify when ordering).
Strike: Standard strike plate; ASA strike plate.
Backset: 2-3/4" backset.
Finish: Brass (US3), Antique Brass (US5) & Satin Chrome 26D (626).
Key Override (Optional): Key Override models (EE1021) accept removable core cylinders.
** All Simplex Key Override models are sold Less Cylinder.
Operation Modes:
- 1011 - Combination Entry, No Key Override.
- 1021 - Combination Entry with Key Override. Choose Keyway: Schlage (EE1021S), Best (EE1021B), Corbin Russwin (EE1021C), Sargent (EE1021R), and Medeco-Yale (EE1021M).
