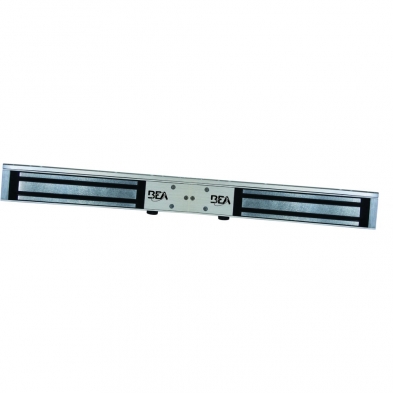

BEA 10MAGLOCK6ULDS Electromagnetic Lock, 600 Lbs.
BEA 10MAGLOCK6ULDS Double Electromagnetic Surface Mount Lock, UL / ULC Listed, LED Status, Lock Status Sensor / Door Status Sensor, 0 to 90 S Hold Open Timer (Relock), 12 / 24 VDC (UL Listed Power Supply Required), 600 lbs. Holding Force
BEA’s 600 LB MAGLOCKS WITH DS provide a standards-compliant solution as part of an access control system for retail, healthcare, financial, education or storage facilities. The 600 lb holding force is ideal for mid- to high-level traffic in commercial buildings. The door status sensor can be used to monitor the door position, eliminating the need for a separate door switch.
BEA’s electromagnetic locks provide reliability and durability in areas for authorized individuals or doorways leading to an emergency exit. Common applications include access control or egress doors using a sensor or a switch to release the locking device.
The 600 LB MAGLOCKS WITH DS can be used on hollow metal, wood, aluminum, glass and composite door materials and are available in surface mount single or double door configurations. Additionally, the adjustable zero to 90 second relock time delay and the lock (bond) status sensor allow configuration of the settings as needed.
Specifications
- Lock: Double
- Input Voltage: 12 or 24 VDC
- Bond Status Relay (when powered): 1.0 A @ 24 VDC resistive
- Relay Power Factor: 1
- Reed Switch Power Factor: 1
- Door Status Switch: Dry Contacts: 3W (switching contact 0.25 amps max, switching voltage 30VDC max; resistive load)
- Power Consumption: 500 mA @ 12 VDC - 250 mA @ 24 VDC
- Dimensions: 9.84” (W) × 1.65” (H) × 1.04” (D)
- Certification: UL294 (up to 500 lb static strength)
- Operating Temperature: 32 – 120 °F
- Operating Humidity: 0 – 85%
