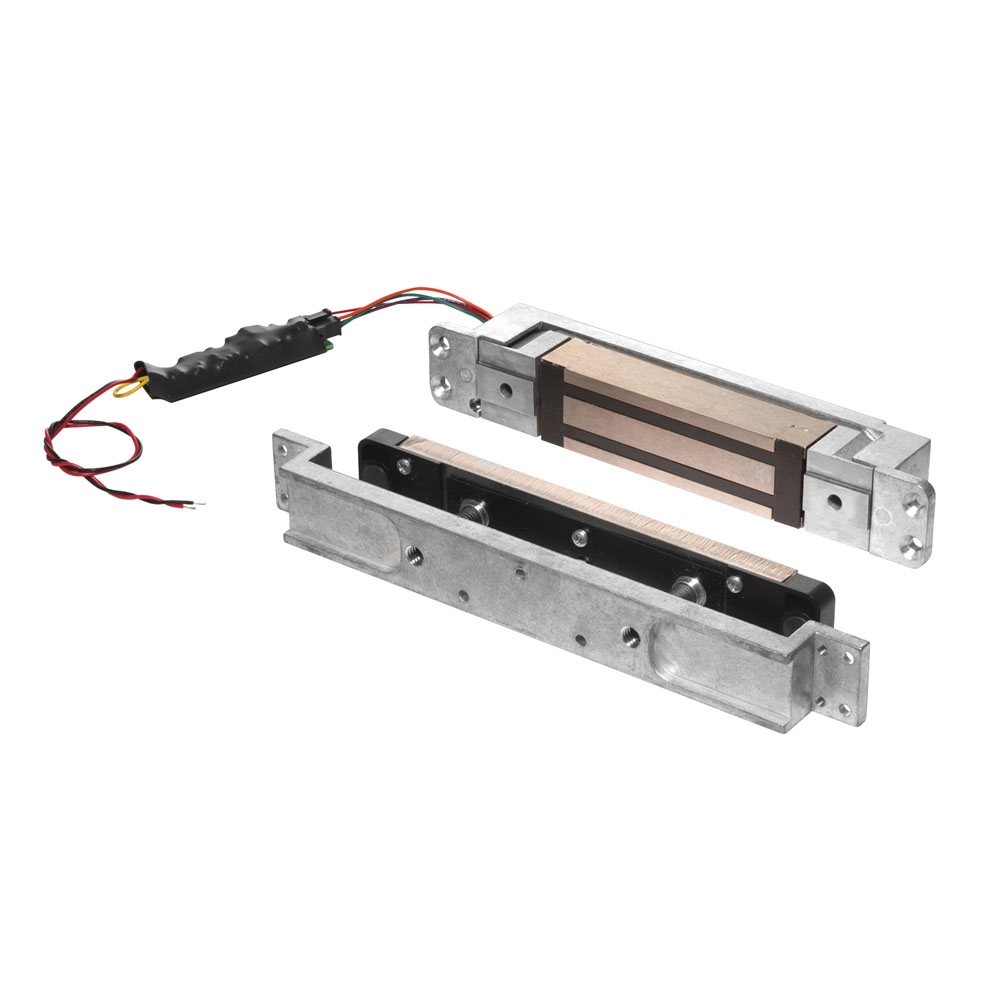

Schlage Electronics GF3000-DSM-MBS Mortise Shear Lock

SKU # LN/GF3000-DSM-MBS

The Schlage Electronics GF3000-DSM-MBS Mortise Shear Lock is a Mortise Shear Lock with Door Status Monitor/Magnetic Bond Sensor. GF3000 Series shear locks feature a patented design, offering advances over any shear lock in the market. A microprocessor-based control module provides advanced electronic features. This circuitry automatically senses and adjusts input voltage, allowing for operation from 12 to 24 volt DC power sources. These mortise shear locks offer the advantage of a totally concealed locking mechanism, providing superior security and appearance while allowing for normal door movement. The patented design incorporates locking "tabs" on the magnet assembly with mating grooves in the armature plate.

Features include:

  • GF3000 DSM/MBS -
    • Door Status Monitor/Magnetic Bond Sensor
    • Armature mounts into top of door or top rail and magnet mounts into header or frame.
    • Air gap adjustment is from top edge of door.
    • Vertical mounting of magnet and armature is also an option.
  • 3000 lb. hold force rating
  • Fully concealed shear lock mortise design
  • Automatic voltage selection (AVS) 12/24 VDC (filtered)
  • Built-in automatic relock switch
  • Adjustable time delay on relock, 0-30 seconds
  • Low temperature operation
  • Microprocessor controlled
  • ANSI/BHMA 156.23, UL 10C, cUL, and CSFM certifications
US$1,234.82

Description:

Description:

Schlage Electronics GF3000BRD-DSM/MBS Mortise Shear Lock


The Schlage Electronics GF3000BRD-DSM/MBS Mortise Shear Lock is a high-security electromagnetic lock designed for bottom rail mounting, ideal for commercial-grade doors. Here are its key features and specifications:

Key Features:

  • High Holding Force: The GF3000BRD offers a holding force of 3000 lbs, ensuring robust security for high-risk areas.
    Advanced Electronics: Features a microprocessor-based control module that automatically senses and adjusts input voltage (12/24 VDC), supports auto-relocking, and includes an adjustable relock time delay (0-30 seconds).
  • Concealed Locking Mechanism: The lock is designed to be mortised into the bottom rail of the door, providing a concealed and secure installation that is aesthetically pleasing and secure.
  • Door Status Monitoring: Includes a Door Status Monitor (DSM) to sense the open/closed position of the door, and a Magnetic Bond Sensor (MBS) to monitor the secure/not secure condition of the lock
  • Compliance and Certification: Meets UL 10C for positive pressure fire tests, ANSI/BHMA A156.23 Grade 1, cUL, and CSFM standards, making it suitable for fire-rated door assemblies.
  • Power Requirements: Operates at 0.90 amp at 12VDC and 0.45 amp at 24VDC.
  • Dimensions: Lock length of 9.5 inches, height of 1.5 inches, and depth of 1.5 inches.
  • Materials: Anodized aluminum housing for durability and compatibility with various door materials.
  • Temperature Range: Suitable for low-temperature operations, enhancing its application in diverse environments.

The GF3000BRD-DSM/MBS is particularly suited for installations where aesthetic and security considerations are paramount, such as commercial buildings and high-security facilities. Its bottom rail mounting option makes it ideal for doors without a top rail, providing a versatile solution for various door types.
