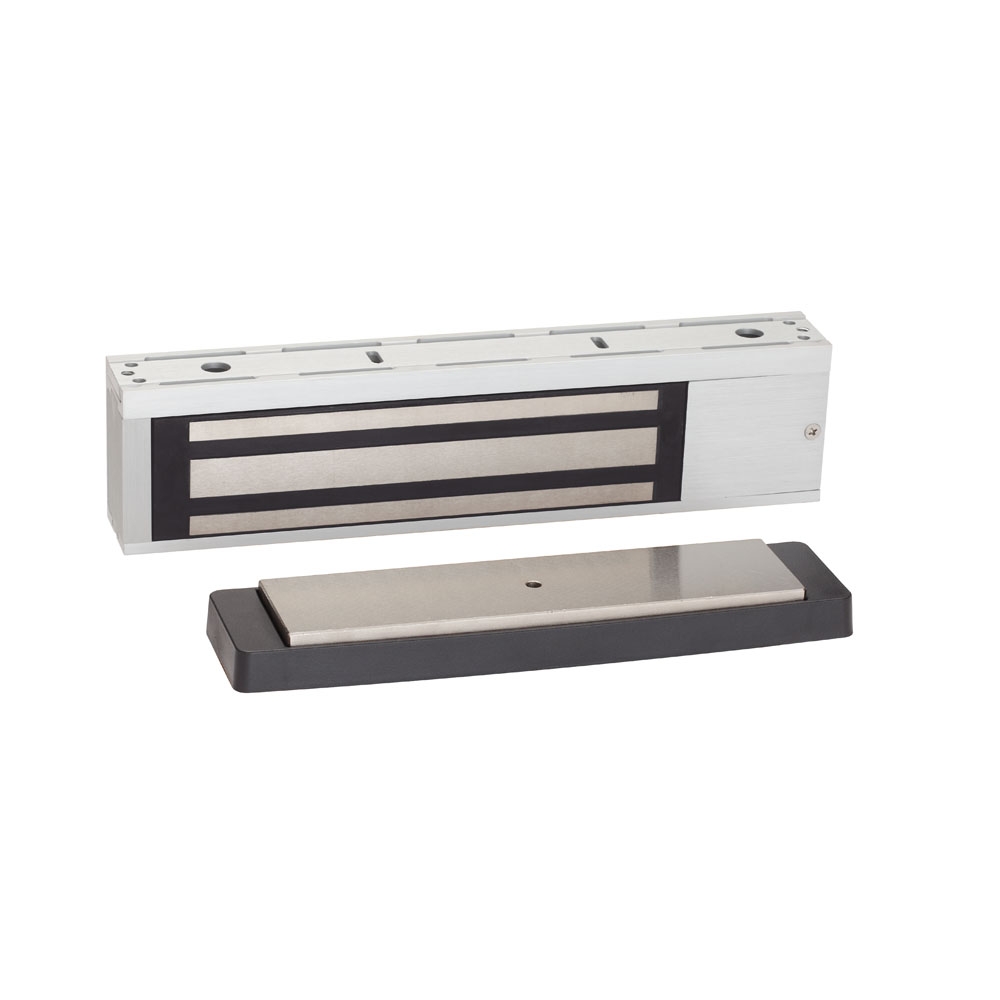

Schlage Electronics M490 Electromagnetic Lock

SKU # LN/M490

The Schlage Electronics M490 Electromagnetic Lock is an Electromagnetic Lock. The M400 Series electromagnetic locks from Schlage are designed with the customer in mind to be robust, easy-to-install, and secure. The unique bayonet mounting feature makes installation easier, allowing the installer to have their hands free during the mounting process. All M400 Series electromagnetic locks are symmetrical with field-selectable handing, allowing optimum placement of the magnet, no matter the application. They are designed to provide automatic voltage sensing for 12 and 24 volts along with polarity protection to make wiring less complex.

Features include:

Height - 3"
Length - 12 1⁄2"
Depth - 1 3⁄4"
Weight (approximate) - 14 lbs
1500 lb. hold force per door leaf rating for maximum security applications
Single Door
Automatic voltage selection (AVS)
Symmetrical design with field-selectable handing for optimum placement
Bayonet mount simplifies installation by eliminating the need to hold lock overhead while securing
Armature mount pivot feature compensates for slight opening imperfections
Optional mounting kits available for top jamb mount, double door and Herculite glass doors
Aluminum housing in 628 satin finish
ANSI/BHMA 156.23 Grade 1, UL 1034, UL 10C, UL 294, cUL, CFSM certifications

US$618.86

Qty:

Description:

Schlage Electronics M490 Electromagnetic Lock

The Schlage Electronics M490 Electromagnetic Lock is designed to provide high security with robust performance and ease of installation. This lock is part of the M400 Series, known for its reliable and user-friendly features, making it ideal for various high-security applications.

Key Features and Specifications

Holding Force: The M490 offers an impressive holding force of 1500 pounds, ensuring strong security for single doors.
Voltage and Power: The lock features automatic voltage selection, operating on both 12VDC and 24VDC. The current draw is 0.65A at 12VDC and 0.35A at 24VDC, making it versatile and efficient.
Bayonet Mounting: This unique feature allows for hands-free installation, simplifying the setup process and making it more efficient for installers.
Symmetrical and Non-Handed Design: This design allows the lock to be installed in any orientation without the need for door handing adjustments, providing flexibility and ease of use.
Integrated Features:
- Magnetic Bond Sensor (MBS): Monitors the strength of the magnetic bond between the lock and the armature, ensuring the door is securely locked.
- Door Position Switch (DPS): Provides real-time status updates on whether the door is open or closed.
- Relock Time Delay (RTD): Adjustable from 0 to 30 seconds, allowing for customized relocking timing based on security needs.
Certifications: The M490 meets or exceeds several industry standards, including UL1034 for burglary-resistant electronic locking mechanisms, UL10C for positive pressure fire tests, and ANSI/BHMA A156.23 Grade 1. It is also cUL and CSFM listed.
Dimensions and Weight: The lock measures 12-1/2 inches in length, 3 inches in height, and 1-3/4 inches in depth, with an approximate weight of 14 pounds.

Applications

The M490 is ideal for securing single outswinging doors in various settings, such as commercial buildings, healthcare facilities, educational institutions, and government buildings. It integrates seamlessly with electronic access control systems, enhancing overall security and monitoring capabilities.
