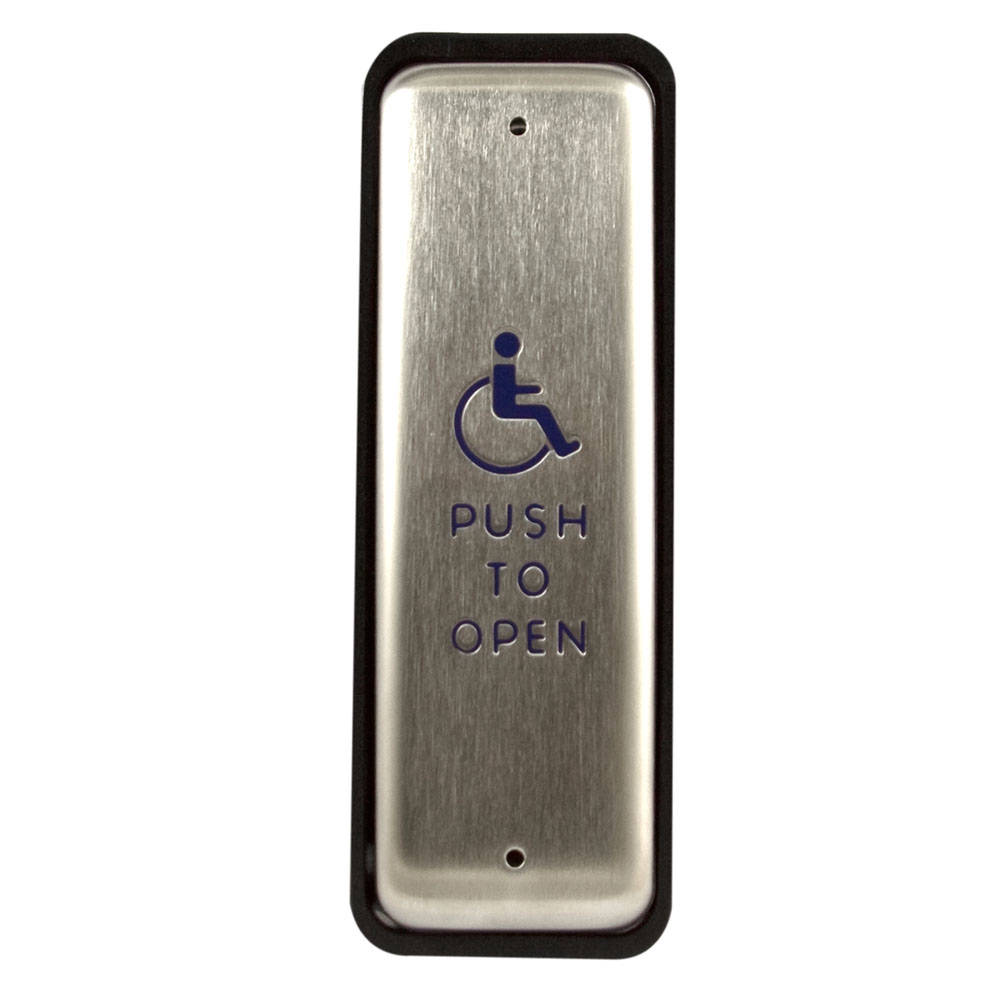

BEA 10PBJ1 Stainless Steel Push Plate

BEA 10PBJ1 Stainless Steel Push Plate

Grade 304 stainless steel maximizes corrosion resistance and reduces rusting. Resistant to scratches and scuffing. Stainless steel materials are 100% recyclable and environmentally friendly. Available in hard wired and wireless options (RF 433, 390 and 300 MHz). Beveled edges provide a tamper and vandal resistant solution. Activation across the entire surface area of the push plate. Graphics are abrasive etched onto the surface to maximize durability. Standard weather boot protects the cherry switch from harsh environments.

Product Highlights:

• Jamb style push plate designed for guide rail applications, door jamb mounting or other applications where mounting space is limited (1.5" x 4.75")
• Blue Handicap logo & "Push to Open" text
• Grade 304 stainless steel reduces rust and resistant to corrosion, scratches and scuffs
• Stainless steel materials are 100% recyclable and environmentally friendly
• Hardwired or wireless options include 433, 390 or 300 MHz frequencies
• Tamper/vandal resistant beveled edges
• Activation across the entire surface area of the push plate
• Abrasive etched graphics for maximum durability
• Standard weather boot protects cherry switch from harsh environments

Technical Information:

• Faceplate Material: 16 gauge, 304 2B Stainless Steel
• Backplate Material: 1/8-inch-thick, Aluminum
• Mounting Screws: Stainless Steel
• 6-32 x 1 in & 8-32 x 1 in
• Allen Head Size: 5/64
• Cherry Switch: Single-pole, 15A, COM/NO/NC, UL Recognized
• Compatible Wireless Frequencies: 900, 433 or 300 MHz
