Camden CX-WC13AXFM Restroom Control Kit Flush Mount

Camden CX-WC13AXFM Restroom Control Kit Flush Mount

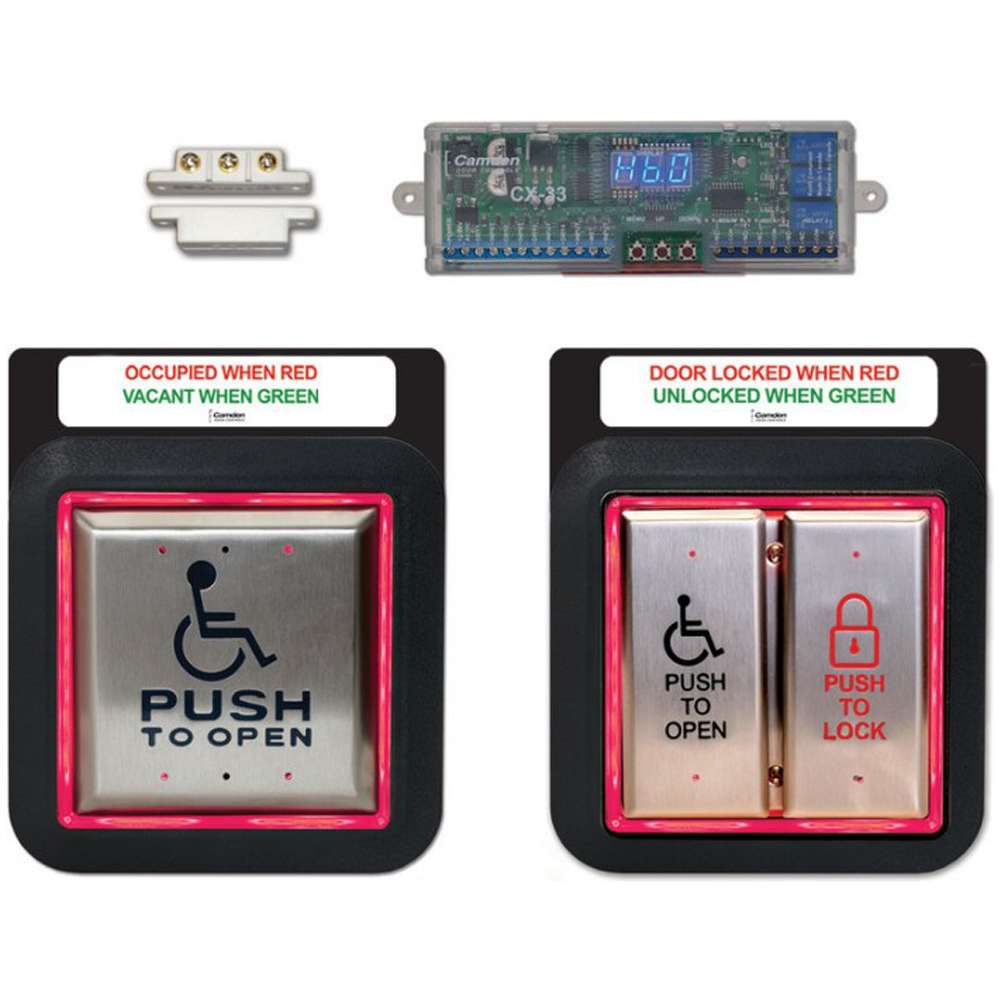

The Camden CX-WC13AXFM is a push restroom control kit with a 'Push to Lock' button as well as an 'Occupied When Lit' single gang LED indicator. The kit consists of a CX-33 advanced logic relay controller, a CM-2520/4855SE1 Combo switch, 2" x 4" 'PUSH TO OPEN' & 'PUSH TO LOCK', Flush mount AURA™ illuminated enclosure and sign, a CM-45/455SE1 4-1/2" Push Plate switch, wheelchair & 'PUSH TO OPEN' with Flush mount AURA™ illuminated enclosure and sign, a CX-ED2079 Grade 2 ANSI electric strike with 3 faceplates, and a CX-MDA magnetic door contact.

CX-WC Series barrier free restroom control kits include everything needed for a complete installation, including control relay, activation switches, annunciation, electric strike and power supply.

Camden kits also feature exclusive products not available elsewhere, including single gang LED annunciators with white-out text, Aura™ illuminated push plate switch enclosures, the option for touchless switches and a pre-wired power supply cabinet.

CX-WC13AXFM Application: Restroom Control Kit w/ Aura Illuminated, Flush Mount w/ CM-2520 Bilingual.

Features and Benefits:

- System kits updated to include all components; power supply, controller, activation switches, annunciation, door contact and electric strike.
- Exclusive products and features not available elsewhere.
- The widest range of design options for one or two door restrooms, including the option for touchless switch activation.
- Compatible with Camden 'CX-WEC' emergency call systems for universal restrooms.
- Specifically designed to meet the latest requirements of Ontario Reg. 368/13 Amendment to 2012 OBC for barrier free restrooms.

CX-33 Advanced Logic Relay Controller Features:

- Compact design fits in automatic door operator cabinet.
- 5 Inputs, including a 'wet' input.
- 15 Operating modes with sub-modes.

CM-2520/4855SE1 Flush 'Push To Open' Combo Push Plate Switch Illumination Features:

- Field selectable illumination (idle and active).
- Audible (sounder) confirmation of switch activation (selectable 'ON'/'OFF').

CM-45/455SE1 Flush 'Push To Open' Push Plate Switch Illumination Features:

- Field selectable illumination (idle and active).
- Audible (sounder) confirmation of switch activation (selectable 'ON'/'OFF').

CM-ED2079 'Universal' Grade 2 Electric Strike Features:

- Compatible with cylindrical locksets with 1/2" - 5/8" latch projection.
- 'Universal' 12/24V, AC/DC, operation, fail safe/fail secure.
- 3 Stainless steel faceplates included.

CX-MDA Magnetic Door Contact Features:

- Surface, SPST contact.
- 15/16" (23mm) gap.
