HES HTD-Option Faceplate for HES 1006 Series Electric Strike

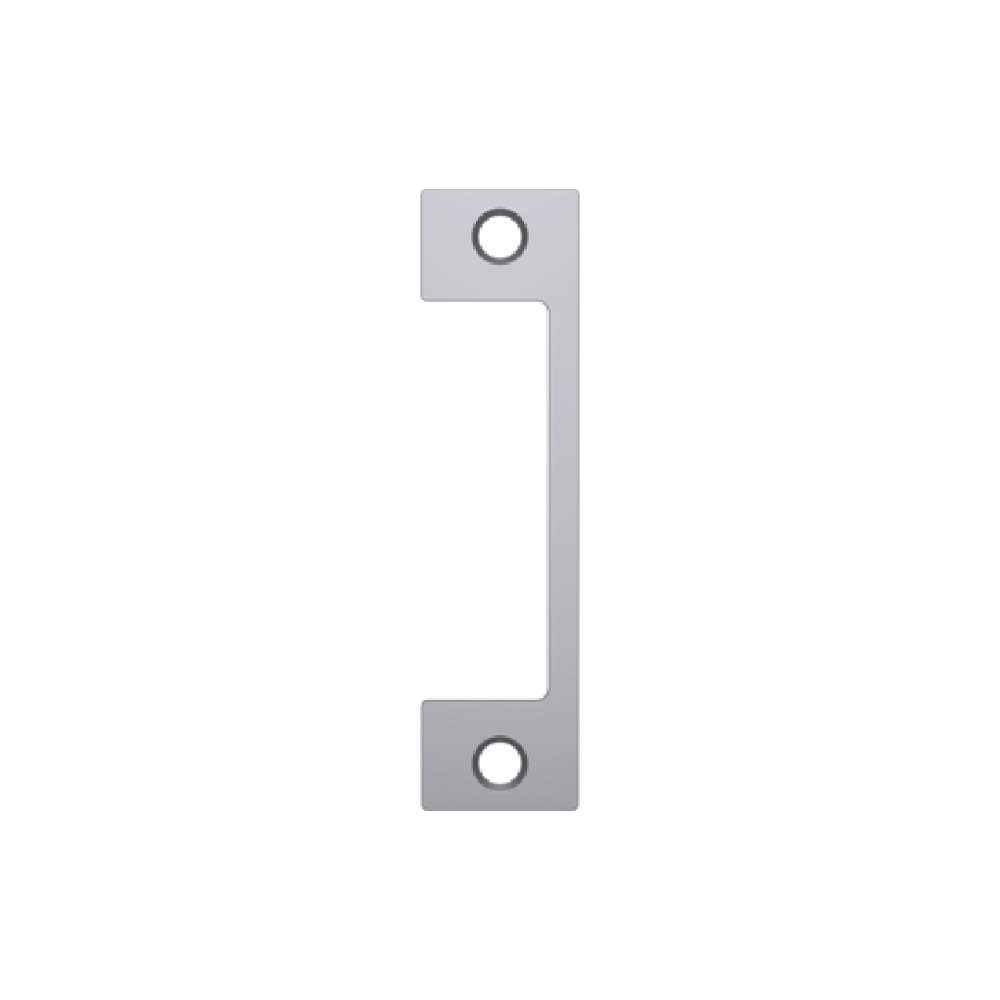

HES HTD-630 Faceplate

The 1006 series faceplate is perfectly designed for use with Mortise locksets with a 1" deadbolt and a center-lined deadlatch. Also the Strike will not release when deadbolt is extended. Its operation is such that the electric strike will not release if the deadbolt is extended. The deadbolt is retracted during traffic hours and the latchbolt is retracted by the keeper, whereas the keeper returns to the locked position. The HTD Series faceplate is to customize the functionality of the 1006 series electric strike.

Benefits and Features:

• Satin Stainless Finish
• Stainless Steel material
• It is recommended for use with Mortise locksets with a 1" deadbolt and a center-lined deadlatch
• ANSI/BHMA Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333
• Dimensions: 4-7/8" x 1-1/4"
• Compatible with Sargent (7700 & 8100 series), Yale (8700) type locksets
• Faceplate for 1006 Series
• The HTD Series faceplate is to customize the functionality of the 1006 series electric strike
