Schlage Electronics 7766 Magnetic Door Position Switch

Schlage Electronics 7766 Magnetic Door Position Switch

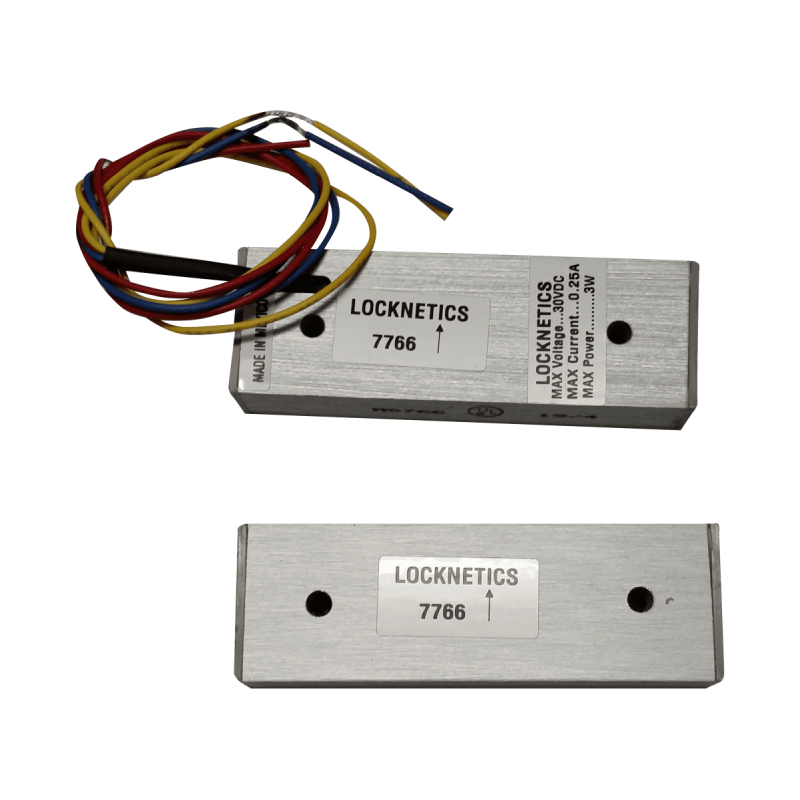

The Schlage Electronics 7766 Magnetic Door Position Switch is a reliable and versatile component used for monitoring the open or closed status of doors. Here are the key features and specifications:

1. Surface Mount Design: The 7766 switch is designed for surface mounting, making it easy to install on a variety of door types, including aluminum, wood, and hollow metal doors.

2. SPDT Contacts: The switch features Single Pole Double Throw (SPDT) contacts, allowing it to reliably detect and relay the door status to a control panel, ensuring accurate monitoring in security systems.

3. Electrical Specifications: It operates at a maximum current of 0.25 amps at 30 VDC, making it suitable for low-voltage applications and ensuring energy efficiency.

4. Compliance: The 7766 is UL10C and CAN-ULC-S104 listed, meeting stringent safety and performance standards for reliable operation in various environments.

5. Application: This switch is ideal for use in monitoring door positions, roof hatches, gates, and other openings where status detection is crucial for security and access control systems.

Downloadable Resources:

• Allegion Electronic Access Catalog

• Schlage 7766 Installation Sheet
