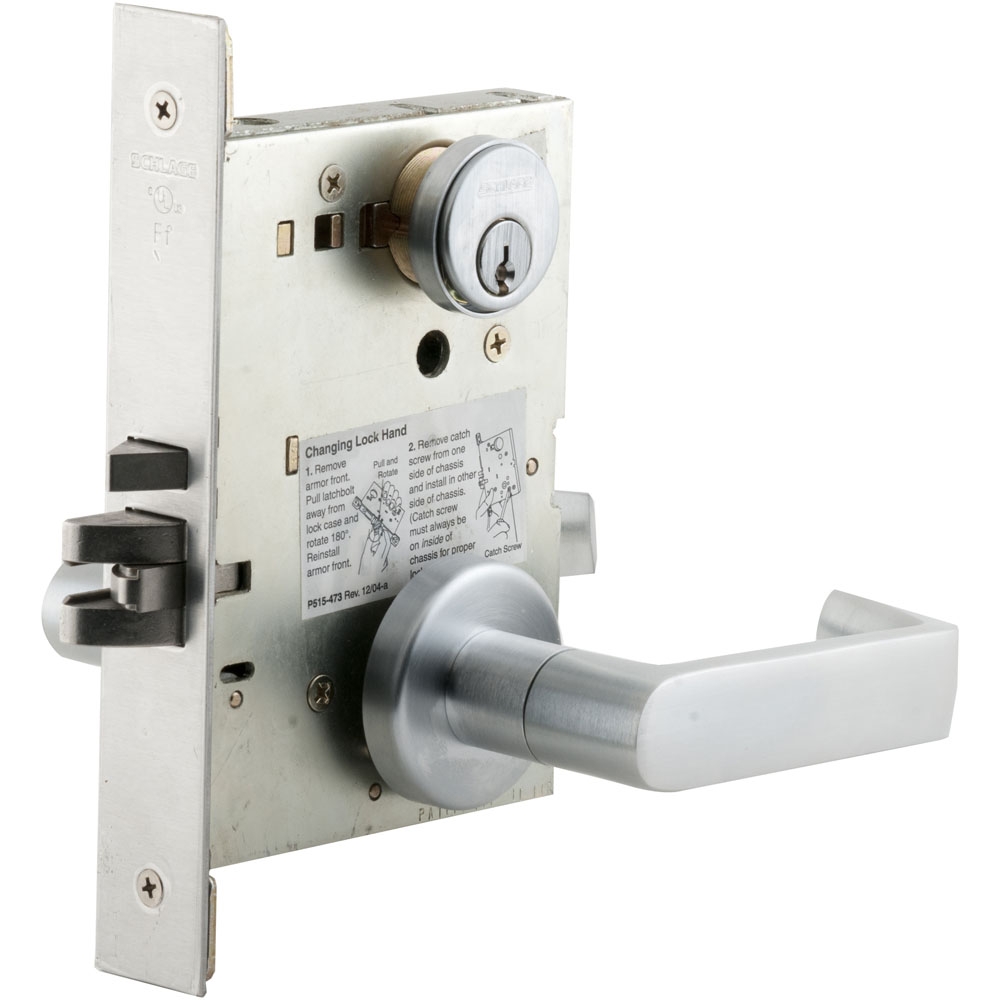

Schlage L9480LB-RH-134 Storeroom Mortise Lock, Body Only

SKU # SC/L9480LB-RH-134

Schlage L9480LB-RH-134 Storeroom Mortise Lock, Body Only

The Schlage L9480LB-RH-134 Storeroom Mortise Lock, Body Only is a Storeroom Mortise Lock, Body Only, Right Handed. The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application.

Features include:

  • Storeroom (Single Cylinder Deadbolt Function) Mortise Lock
  • Body Only
  • Handing: Right Hand
  • Storeroom lock with deadbolt - Latchbolt retracted by outside key or inside knob/lever. Outside knob/lever always fixed. Deadbolt actuation by outside key or inside thumbturn. Inside knob/lever actuation retracts both deadbolt and latchbolt. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever always free for immediate egress.
  • Door thickness 1 3⁄4" (44 mmm)
G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$312.60

Description:

Description:

Schlage L9480LB-RH-134 Storeroom Mortise Lock, Body Only

Nothing is tougher.
At Schlage we know that every product you specify has to stand up to constant use and abuse. Your building's locking systems face an additional challenge - keeping people and other assets safe while delivering constant, reliable performance. Schlage L Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail.

We don't compromise on security.
The safety and security of your buildings is something we take very seriously. That's why every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level:
- Cycle tests            - Warped door tests
- Resistance tests    - Bolt strength tests
- Door impact tests

Function: The Schlage L-Series Levers are available in Passage (L9010), Privacy (L9040), Entry/Office (L9050), Keyed Entry (L9453), Classroom (L9070), Storeroom (L9080), Single Dummy (L0170), and Dummy Pair (L0172) function.
Finish: The Schlage L-Series Levers come in Satin Chrome (626) finish.
Lever Design: The Schlage L-Series Levers come in 03 Design (A Rose), 06 Design (A Rose), 07 Design (A Rose), and 17 Design (A Rose) design.
Escutcheon: The L-Series Lever comes in Full Face Escutcheon (L) with 2-1/8 (54mm) diameter Wrought Rose (A).

All Schlage L-Series Locks come standard with Square Corner 2-3/4 Backset Latch and Square Corner Strike (10-072).

Special Order Information: For pricing on any function or finish of the Schlage Commerical L-Series Levers not found on this page please contact Taylor Security direct via e-mail (sales@taylorsecurity.com) or call us toll-free at 1-800-676-7670.

Specifications:
