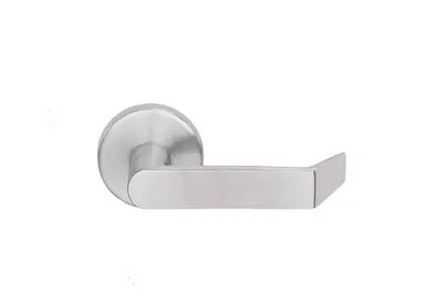

Schlage L9496J-06A-626 Faculty Restroom Mortise Lock

SKU # SC/L9496J-06A-626

Schlage L9496J-06A-626 Faculty Restroom Mortise Lock

The Schlage L9496J-06A-626 Faculty Restroom Mortise Lock is a  Faculty Restroom Mortise Lock, Less Full Size Interchangeable Core (FSIC). The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application.

Features include:

  •  Faculty Restroom (Single Cylinder Deadbolt Function) Mortise Lock with Deadbolt
  • J -  Less full size interchangeable core (FSIC)
  • Lever Style - 06
  • Rose A - 2-1/8" Diameter
  • Handing: Field-reversible
  • Faculty Restroom/ Privacy with 09-611 “OCCUPIED” indicator for rose trim - Latchbolt retracted by knob/ lever from either side. Deadbolt actuation by outside key or inside thumbturn. Thrown deadbolt displays “OCCUPIED” message and locks outside lever. Inside knob/lever retracts both deadbolt and latchbolt and unlocks outside lever. Inside lever always free for immediate egress.
  • Satin Chrome Finish
G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$856.80

Description:

Description:

Schlage L9496J-06A-626 Faculty Restroom Mortise Lock

Nothing is tougher.
At Schlage we know that every product you specify has to stand up to constant use and abuse. Your building's locking systems face an additional challenge - keeping people and other assets safe while delivering constant, reliable performance. Schlage L Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail.

We don't compromise on security.
The safety and security of your buildings is something we take very seriously. That's why every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level:
- Cycle tests            - Warped door tests
- Resistance tests    - Bolt strength tests
- Door impact tests

Function: The Schlage L-Series Levers are available in Passage (L9010), Privacy (L9040), Entry/Office (L9050), Keyed Entry (L9453), Classroom (L9070), Storeroom (L9080), Single Dummy (L0170), and Dummy Pair (L0172) function.
Finish: The Schlage L-Series Levers come in Satin Chrome (626) finish.
Lever Design: The Schlage L-Series Levers come in 03 Design (A Rose), 06 Design (A Rose), 07 Design (A Rose), and 17 Design (A Rose) design.
Escutcheon: The L-Series Lever comes in Full Face Escutcheon (L) with 2-1/8 (54mm) diameter Wrought Rose (A).

All Schlage L-Series Locks come standard with Square Corner 2-3/4 Backset Latch and Square Corner Strike (10-072).

Special Order Information: For pricing on any function or finish of the Schlage Commerical L-Series Levers not found on this page please contact Taylor Security direct via e-mail (sales@taylorsecurity.com) or call us toll-free at 1-800-676-7670.
