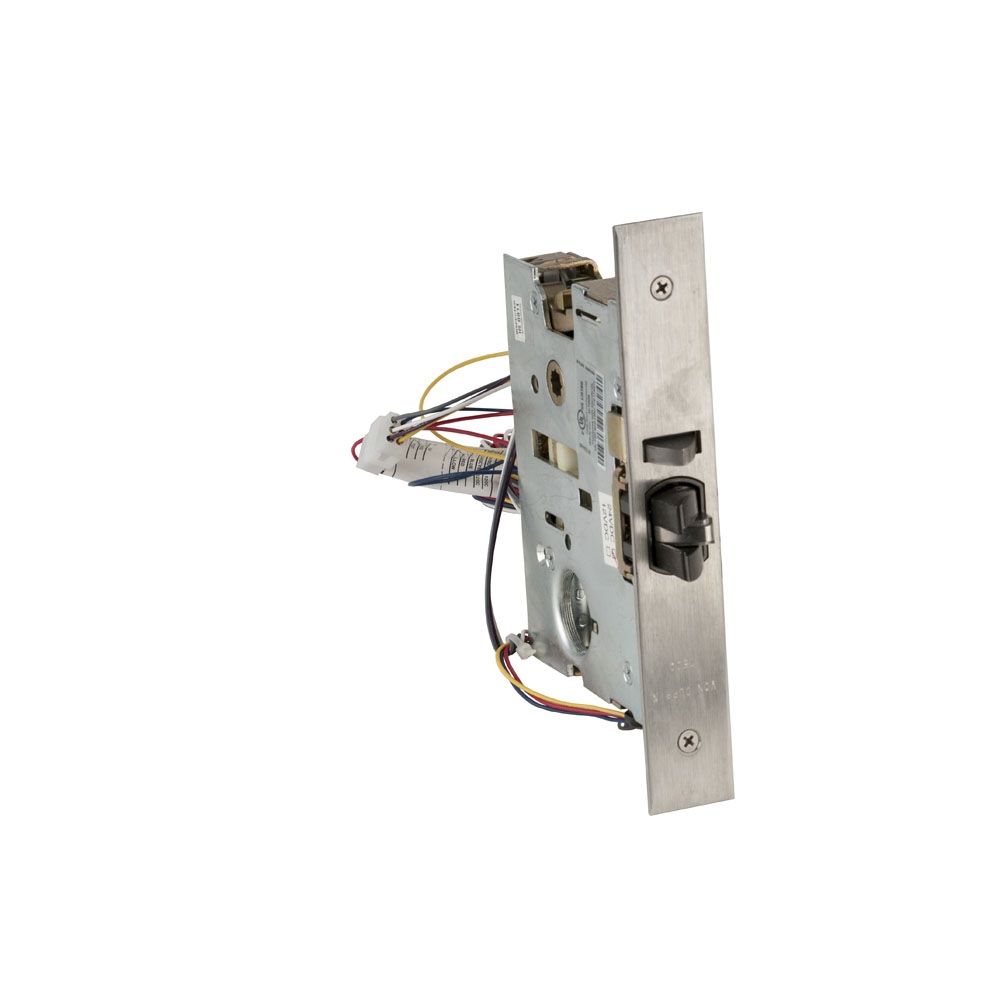

Von Duprin E7500-24V-US32D-FS Electrified Mortise Lock

Von Duprin E7500-24V-US32D-FS Electrified Mortise Lock

The E7500 controls the locking of the outside trim. When unlocked, the door remains latched, preserving the fire rating of the door and making it particularly useful where codes permit locking, but require unlocking during a fire emergency. The E7500 locks electrically and cannot be locked or unlocked mechanically. The outside trim cylinder retracts the latch bolt for mechanical override, night latch function. Available only with TP, K or L functions. 1 1???4?? (32mm) mortise cylinder with straight cam (not furnished.) (Schlage B502-191) The E7500 lock contains a SPDT signal to monitor the outside trim condition (locked or unlocked) and a second SPDT signal switch to monitor the latch bolt. The E option does not include the power transfer from door to frame, the power supply or the control operator. Features Field reversible handing 24VDC continuous duty solenoid Tamper resistant Corrosion resistant Internal solenoid Fail safe - locked when energized, unlocked when de-energized or during power failure specify with suffix FS
