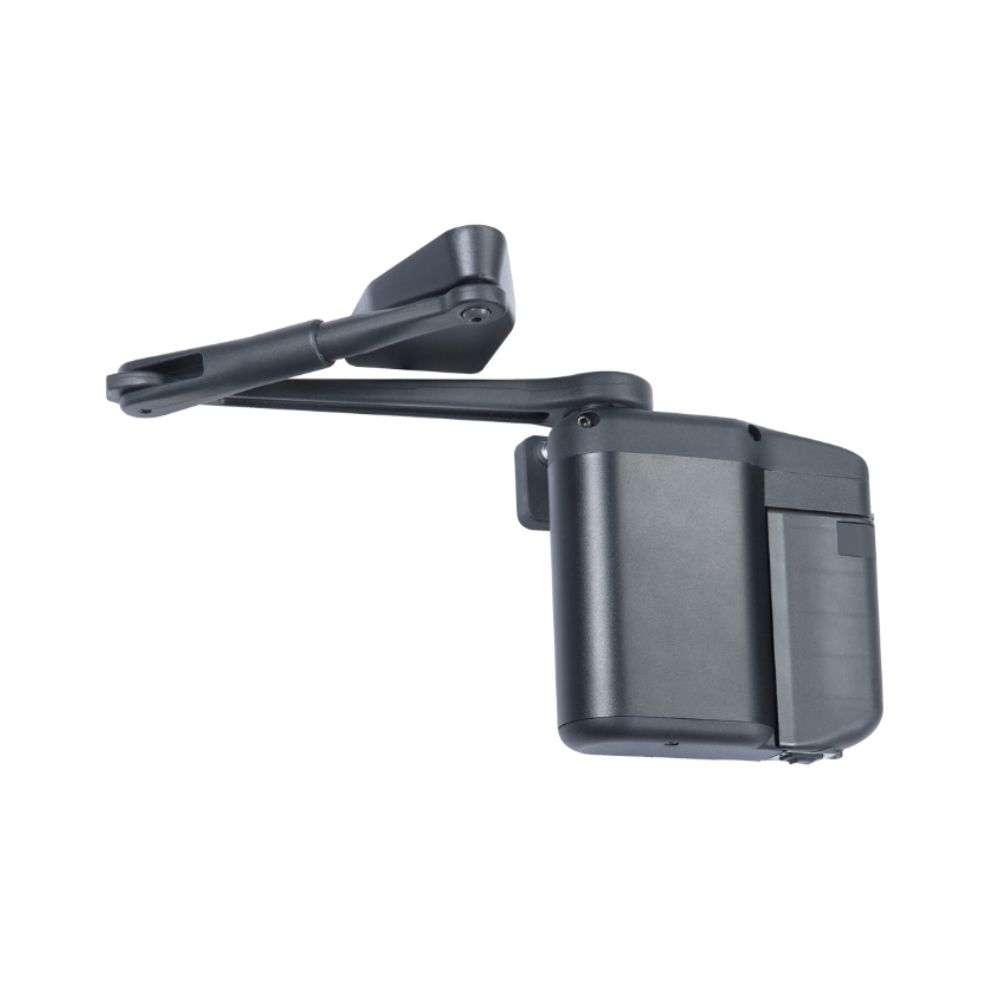

Norton Rixson 5845-WTO-689 Push Pull Alum Operator Switch

SKU # NT/5845-WTO-689

Norton Rixson 5845-WTO-689

  • Push or Pull side mounting
  • Aluminum Finish Cover
  • Wave-to-open switch
  • Regenerative drive battery captures power created by manual operation of door
  • Powered by regenerative drive or 24VDC plug-in transformer kit
  • Functions like door closer when used manually
  • Shock absorbing arm
  • Brushless DC motor/gearbox tested 10+ million cycles
  • Maximum door weight: 250lbs.
  • Door width: up to 48"
  • Americans with Disabilities Act (ADA) Compliant *Buy American Act*
  • ANSI/BHMA A156.19
  • ETL tested to UL/cUL 325 standard for automatic operators
  • Environmental Product Declaration (EPD)
  • UL 10c Fire Rated 90-minute
  • Warranty: 2-year limited warranty
  • Traffic Rating: High Traffic

Delivery: The Norton Rixson 5845-WTO-689 Push-Pull Side Mount Aluminum Operator Wave Open is Factory Ordered, please allow 1-2 business weeks' lead time.

US$3,152.10

Description:

Description:

Norton Rixson 5845-WTO-689 Push-Pull Side Mount Aluminum Operator Wave Open

Norton Rixson 5845-WTO-689 Push-Pull Side Mount Aluminum Operator Wave Open



The 5800 Series is one of the world’s only regenerative low energy operators and certified by GreenCircle® to reduce energy consumption by as much as 100 percent versus other comparable operators. The 5800 Series fits in the tightest of spaces, is simple to install and use, and is available as wireless or plug-in.



  • Regenerative power operation eliminates energy consumption
  • Unique, on-door installation fits tight spaces with little to no header space
  • Easy installation requiring no external wiring
  • When electrical power is needed, a low voltage transformer kit can be easily added to plug into common 110VAC electrical outlet
  • Wirelessly interfaces with variety of systems and devices
  • Protects door and frame from high wind and abusive environments
  • Battery back-up allows auto operation use during power failure
  • Minimal adjustments required over time
  • Reduced germ transmission and increased ease of use with activation through wave-to-open switches and radio frequency (RF) devices
  • Kits provide easy stocking and ordering for complete automated door solutions, from operator to accessories
  • Allows any model to interface with wired or wireless wall switches, wireless remote, electric lock, fire panel, access control, or outside wall switch to disable contact
