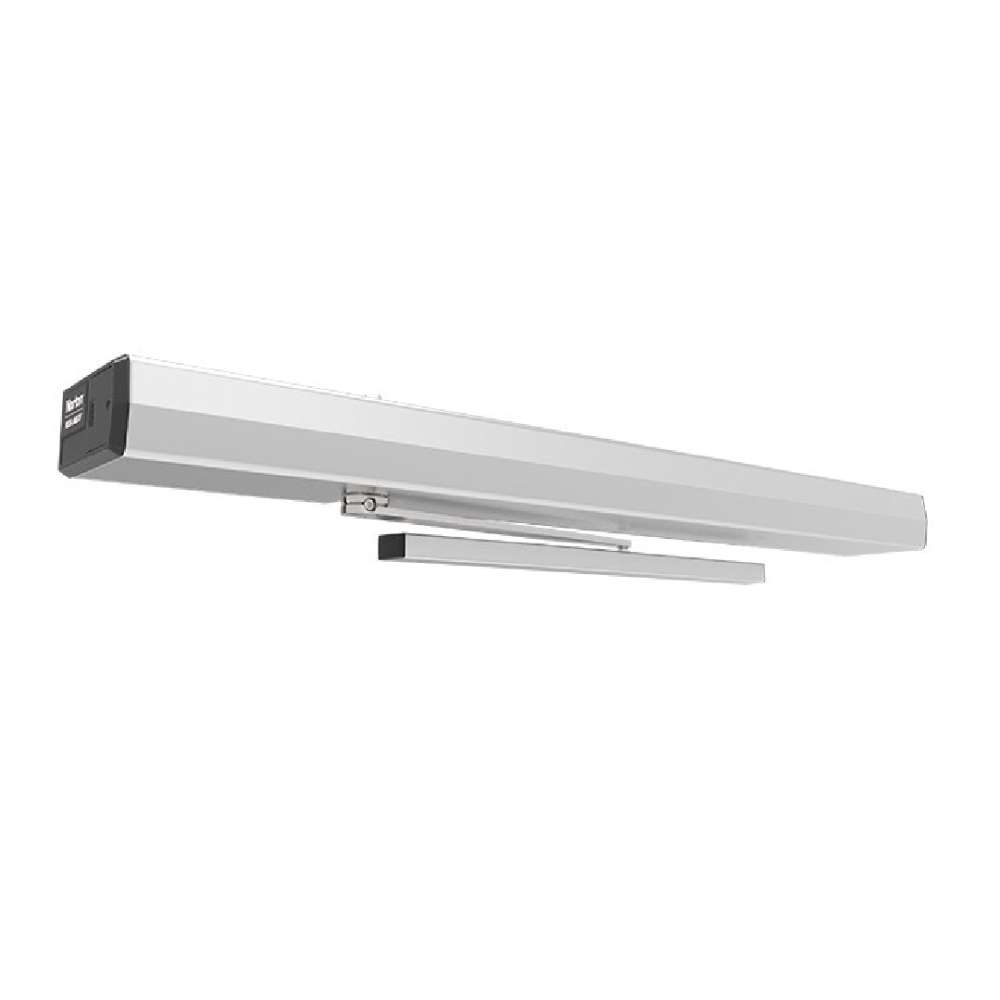

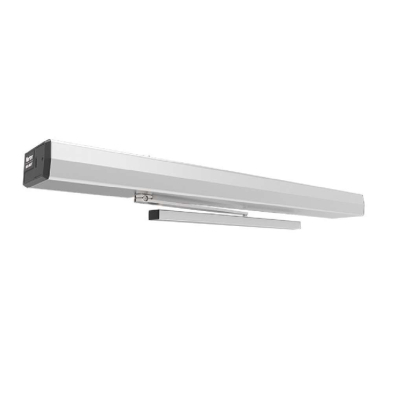

Norton Rixson 6200 Low Energy Operators Hinge Pull White
Norton Rixson 6200 Low Energy Operators Hinge Pull White
Norton Rixson 6200 Low Energy Power Operators Hing Pull Side of Door White Suede Powder
Adjustable Hold Open – Amount of time a door will stay in the full open position after an activation. Door closes and ignores any activation input until signal is discontinued. Door will hold open at set position until power is turned off. At closed position, after an activation, the door is pulled in. After the door has closed, the door is pulled in to assist with latch release/engagement. Open: door closes if it hits an obstruction while opening. Close: door will reverse to open position if it hits an obstruction while closing. Close (Selectable - stop on stall): door will stop once it hits an obstruction and will rest against the obstruction until removed.
Delays operator opening for locking hardware. When contact is closed, outside wall switch is disabled Senses the door is being opened manually and applies small amount of power to assist user in opening the door with force less than 5 lbs. Door opens only as far as it is moved manually, then closes once released. Additional force to assist door closing between 7° and 2°. Input for external sensor to detect presence at door open or close position only. As the door is manually opened, the operator "senses" movement and opens door to the full-open position. Disables signal inputs unless Blow Open is activated. Hold Activates the unit (unless blow closed is activated on 6300) to the hold open position.
