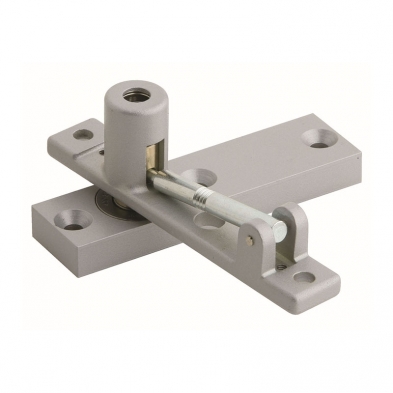

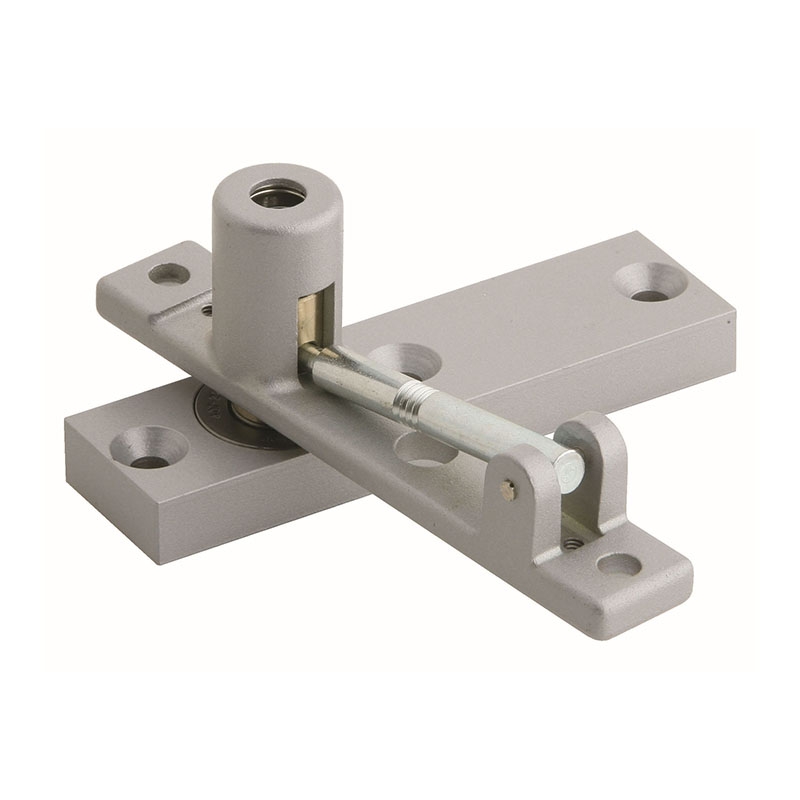

Ives-Glynn Johnson 7253-SET-US26D Pivot Set

SKU # IV/7253-SET-US26D

The Ives-Glynn Johnson 7253-SET-US26D Pivot Set is a Pivot Set in Satin Chrome.

Features include:

  • Satin Chrome Finish
  • Center hung pivot, 300lb with bottom base mount
  • Maximum door load 300 pounds
  • Recommended for use with 1-3/4" minimum door thickness
  • Not recommended for doors larger than 4'0" X 8'0"
  • Easy installation, tilt on bearing and bearing pin
  • Adjustable floor to door clearance 3/16" to 3/4", consult product support if greater than 3/4"
  • Vertical adjustment range 3/16", with positive locking
  • 7253 Set includes 7253 Top and 7253 Bottom
  • Made from cast brass
  • Meets ANSI/BHMA A156.4 C07032
  • UL Listed, 20 minute fire doors
US$307.26
