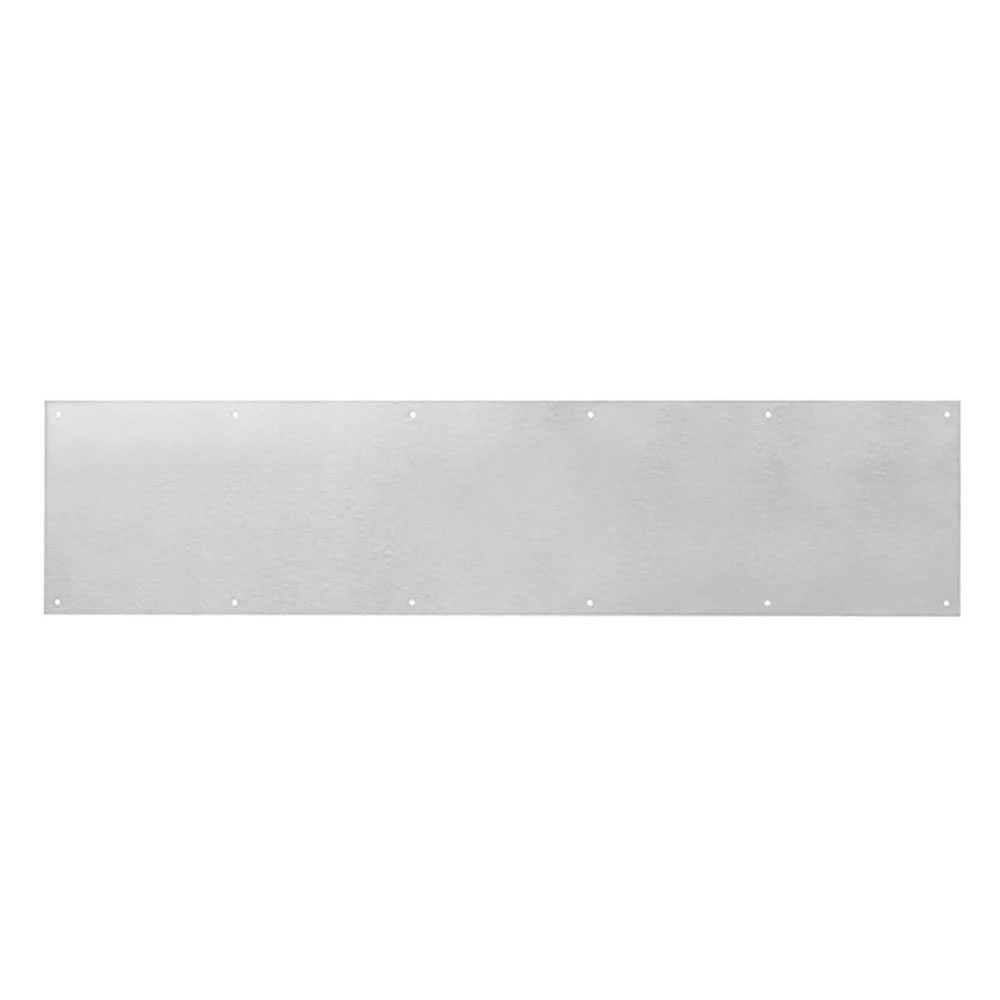

Rockwood K1050-8X34-US32D Metal Kick Plate

Rockwood K1050-8X34-US32D Metal Kick Plate

Specifications

• Base Material: Aluminum, Brass, Bronze, Stainless Steel
• Fastener: #6 x 5/8" OH SMS
• Specify height x width x finish code. Add any options.
• Material Thickness: .050"
• Finishes US26/625 and US26D/626 are only available up to 24"H
• NFPA 80 STANDARDS - 2-4.5 Protection Plates: Factory-installed protection plates shall be installed in accordance with the listing of the door. Field-installed protection plates shall be labeled and installed in accordance with their listing. Exception: Labeling is not required where the top of the protection plate is not more than 16 in. (406 mm) above the bottom of the door.
• Optional Screw mounting (K1050F) and UL listed for use on 90-mintue label wood doors and 3-hours label metal doors. Max size for UL is 54"H x 46-1-2" W.
