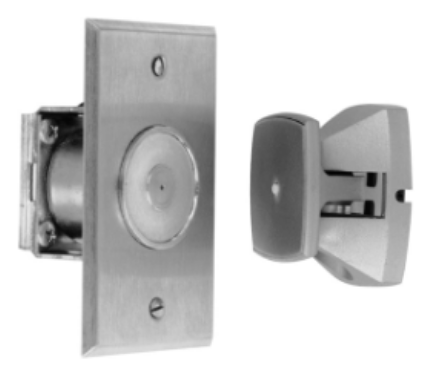

Rixson 990-689 Electromagnetic Door Holder/Release

SKU # RX/990-689

The Rixson 990-689 Electromagnetic Door Holder/Release is an  Electromagnetic Door Holder/Release. Rixson Electromagnetic Door Holders are designed for virtually any remote door release applications. They must be used in conjunction with closing devices. The Rixson 990 Door release/holder is designed for virtually any remote door release application. They are primarily used to hold fire and smoke barrier doors open until released by a remote smoke detector or other switching device.

 Features include:

  • Electromagnetic Door Holder/Release
  • Sprayed Aluminum
  • 25 to 40 pounds holding power, except where noted.
  • Fail-safe operation; power failure releases door to close.
  • Positive release button initiates closing motion.
  • Tri-volt coils (120VAC, 24V AC/DC, 12VDC).
  • Designed for use with self-closing fire and smoke barrier doors.
  • Flush to wall.
  • Total Projection: 1-13/16" (46mm).
  • Mounting Requirements: 2" x 4" x 2-1/2" (51 x 102 x 64mm) outlet box.
  • Wall must be properly reinforced and outlet box adequately fastened.
  • Applications: Wall Mount. Low Profile. Concealed Wiring. ANSI/C00011.
US$308.44
