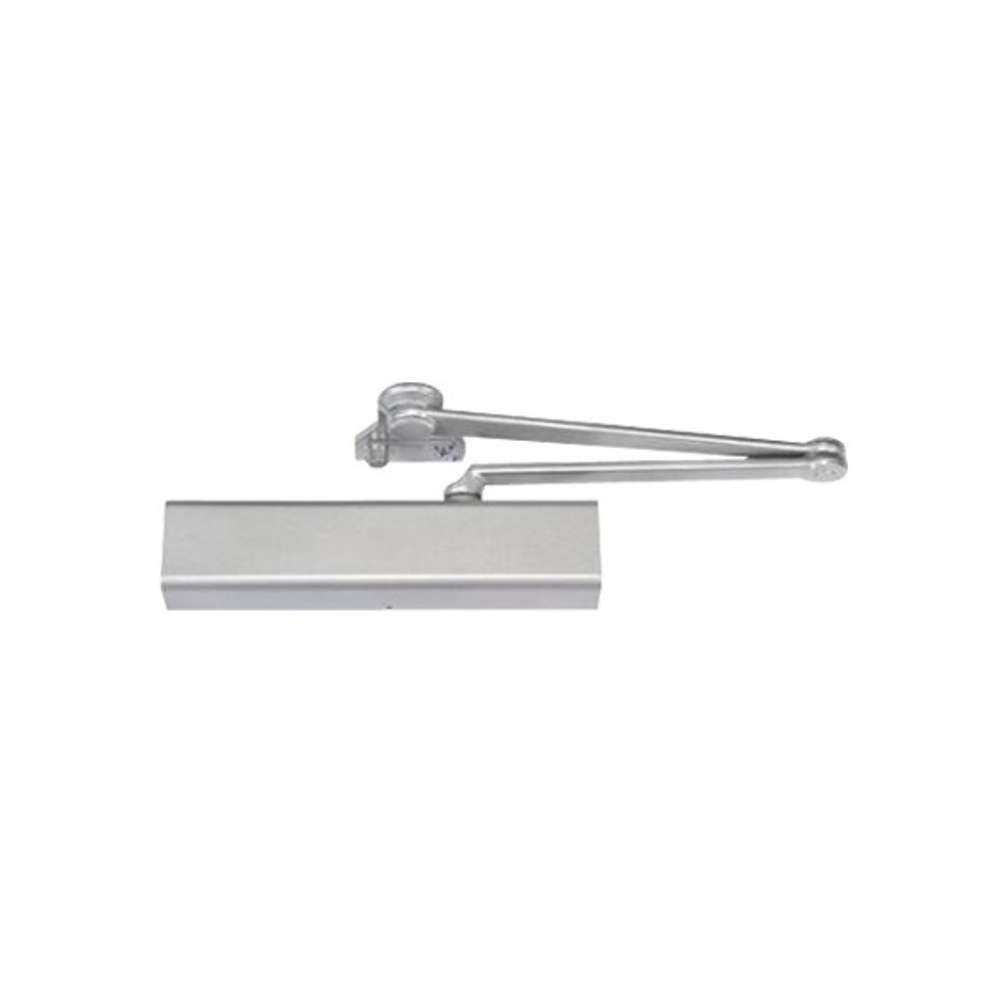

Norton CLP8501-689 Closer Plus Arm Door Closer
The Norton CLP8501-689 Closer Plus Arm Door Closer is an Aluminum, Closer Plus Arm Door Closer. The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market.
Features include:
- Aluminum
- CloserPlus® Arm Door closers have a field reversible door stop.
- Closers are provided for parallel arm installation using a forged rigid steel main arm and secondary arm
- Exceeds 15 million cycles (witnessed and verified by UL)
- Adjustable spring sizes 1 through 6
- Non-handed
- Staked valves
- Cast aluminum body
- Rack and pinion design
- 1-1/4" (32mm) diameter piston
- 5/8" (16mm) diameter pinion journals
- 2-1/8" (54mm) projection (standard covers)
- All standard arm applications (with slim, full or metal covers) allow doors to swing 180 degrees, conditions permitting
- Full size template
- Full Cover
- Slide Tracks: push or pull side mounting
- ANSI/BHMA A156.4, Grade 1 certified
- UL / cUL listed for use on fire rated doors
- UL10C listed for positive pressure fire test
- 8301 door closers are designed to comply with requirements for the Americans with Disabilities Act (A.D.A) and ANSI standard A117.1
- This product is manufactured in an ISO 9001 facility
