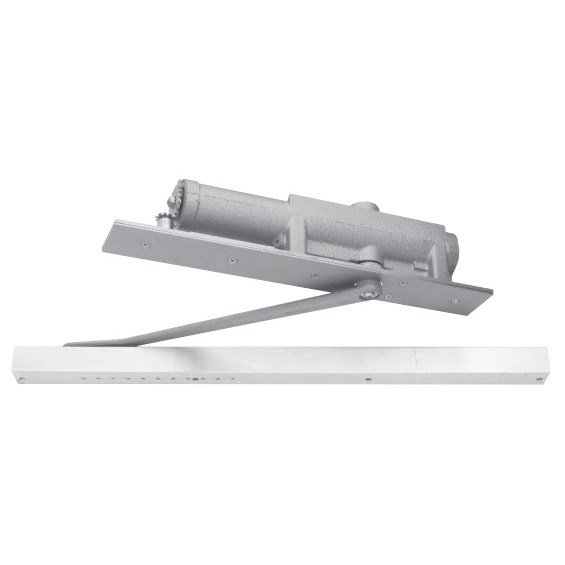

Sargent 269 Overhead Concealed Track arm Closer LH

SKU # SA/269O-EN-LH

Product Features:

  • Specially designed spring to close heavy doors.
  • Fully concealed closer body concealed in the frame head.
  • Track fully concealed in door. Arm is only visible when door is open.
  • 1-3/4" (44mm) min. door thickness.
  • Arms are forged steel with bearing roller.
  • Aluminum track.
  • Metal closer faceplate furnished standard.
  • Closing force adjustable from size 4 through 5.
  • Auxiliary door stop required.
  • Removable stop required for door widths
  • Door weights - up to 250 lbs.
  • Available in Aluminum Sprayed or Powered Coated finish (EN).
US$691.35

Description:

Description:

The SARGENT line of concealed in frame door closers provide the ultimate in aesthetics and security for door closer installations. Closers are available for interior and exterior applications, overweight doors and for doors that must ADA requirements. When security is desired the concealed nature of the 268/269 closer provides a high degree of resistance to abuse since the arm, track and closer is completely concealed when the door is closed. this caracteristic also lends itself well to high end architectural openings.

The SARGENT 269 Door Closer provides an ideal solution when a concealed door closer is required on heavy large doors opening to 180°. The closer is specially designed to provide strong closing power at opening angles beyond 100° when many concealed closers lose power.

Specifications:

Specifications:

Specification Data:

  • 1-1/2" dia. piston for superior door control.
  • Conforms with Standard UL 10C for positive pressure fire test.
  • UL and cUL listed for use on fire doors.
  • Heat treaded spindle and piston for years of reliable service.
  • Handed for right (RH) or left (LH) swinging doors.
