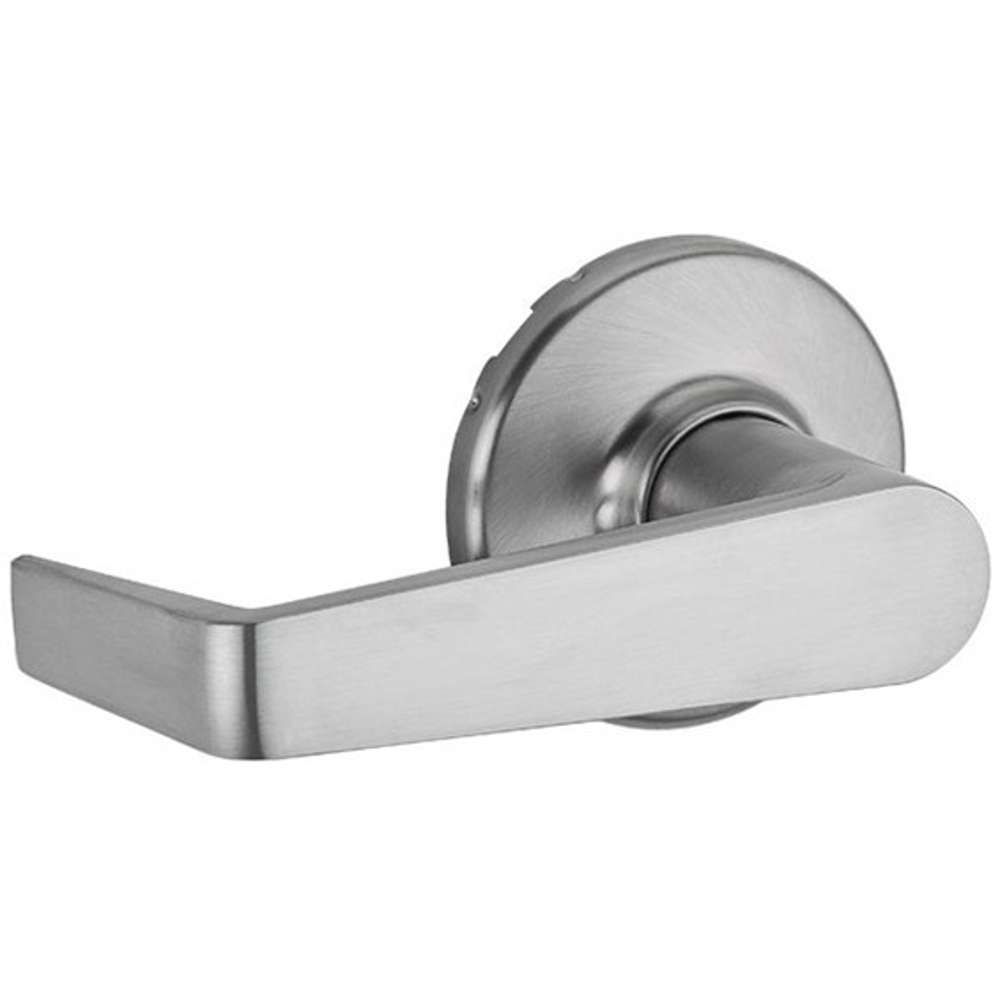

Kwikset 721KNL 26D Kingston Passage Grade 2 Lever
Kingston LeverLight Commercial
Our light commercial door locks and lever products are ANSI/BHMA certified and meet UL fire ratings and ADA requirements.
Specifications:
- ANSI/BHMA:
- Grade 3 Certified
- Door Prep:
- Crossbore 2-1/8"
- Edge Bore 1"
Backset: Adjustable to 2-3/8" or 2-3/4"
Door Thickness: 1-3/8" – 1-3/4" doors standard
Cylinder: SmartKey Security or Pin & Tumbler
Latch: Adjustable to 2-3/8" or 2-3/4"
Specify round corner or square corner, WFL
Strikes: 2-1/4" full lip UL
Specify round corner or square corner
Other options include 2-3/4" T-Strike and 4-7/8" ASA
Bolt: 1/2" throw
Door Handing: Reversible for right or left-hand doors
ADA: Lever options are in compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA)
UL: Meets UL 3 hour fire rating for all functions
Warranty: Lifetime Mechanical, 5 Year Finish
Interior Locking:
- Push button (for Kingston & Carson)
- Turn button (for Interconnect)
Functions:
- Passage/Hall/Closet: Both levers always free.
- Privacy/Bed/Bath: Both levers locked or unlocked by ADA turn button inside. Outside lever unlocked by emergency key.
- Entry: Both levers locked or unlocked by key outside or ADA turn button inside.
- Entry, Free Interior: Outside locked or unlocked by key outside or turn button inside. Inside always free.
- Storeroom/Vestibule: Outside unlocked only while key is turned. Inside always free.
- Half Dummy Trim, Surface Mounted: For doors where only a pull is required. No operation.
Finishes:
- Venetian Bronze
- Satin Chrome
- Satin Nickel
- Polished Brass
