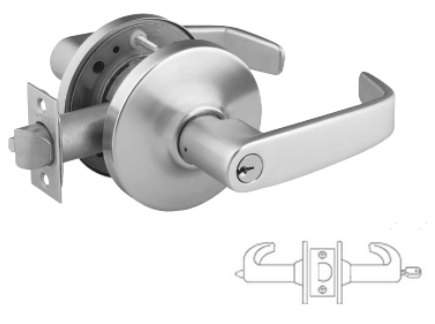

The Sargent 2860-10G05-LP-26D Entry Cylindrical Lever Lock is an Entry Cylindrical Lever Lock. The SARGENT® 10 Line is a heavy duty cylindrical key-in-lever handle lockset exceeds by nine times the ANSI 156.2 Series 4000 Grade 1 standards, at over 9 million cycles. The 10 Line is the standard for institutional applications such as medical, educational and municipal facilities As for abusive force, this lock endures more than 1.5 times the standard without allowing entry. The 10 Line trim is designed to conform to national and state fire and handicapped requirements.
- Cylindrical Lever Lock for the 10 Line
- Large format IC core - less core
- 28 - Curved Lip Strike (#808)
- Entrance or Office
- Deadlocking latch
- Latch by either lever unless outside lever is locked by push/turn button in inside lever.
- Push button released by key outside or lever inside.
- Turn button must be released manually.
- Key retracts latch when outside lever is locked
- ANSI/BHMA F109
- Rose Design L
- Lever Design P
- All levers conform to ADA requirement for barrier-free accessibility
- Satin Chrome
