Schlage F-Series F10 JAZ 619 w/ Georgian Rosette

SKU # SC/F10-JAZ-619

Schlage F10-JAZ-619 Passage Latch, Jazz Lever, Satin Nickel

The Jazz Lever is part of the Schlage F-Series

Please see Part Number to Confirm Correct Choice

Features include:

  • Non-keyed, Passage Function - Non-locking - ideal for closets and rooms where locking is not needed
  • Designed with reversible handles that are easy to switch from right to left as needed.
  • Installs easily with a screwdriver.
  • Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets.
  • ADA Compliant; Commercial Standard Certification:ANSI/BHMA A156.2-2011; Residential Standard Certification:ANSI/BHMA A156.39-2015
  • Various Finishes Available
US$43.80

Description:

Description:

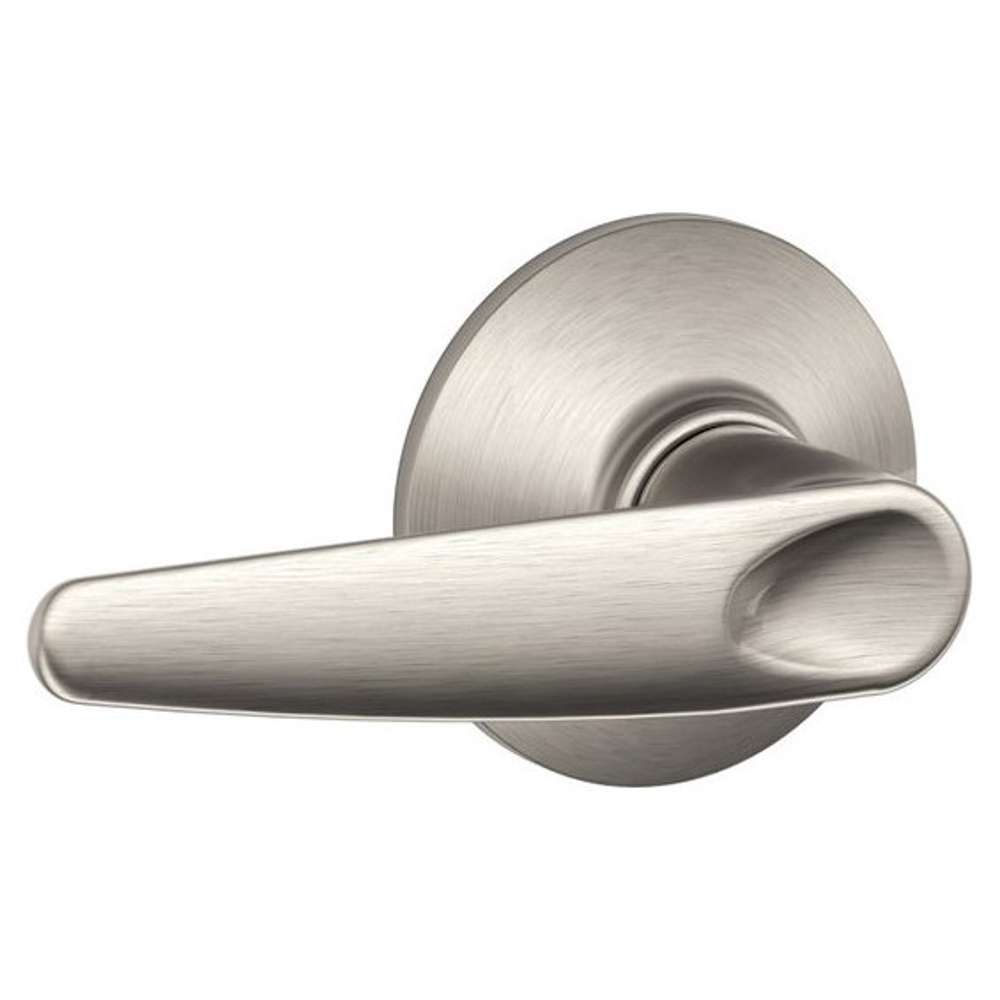

Schlage F10-JAZ-619 Passage Latch, Jazz Lever, Satin Nickel

The Schlage Jazz is a Grade 2 lever that is part of the Schlage F-Series Collection. Bold lines and contours lend a more modern look to the handle.

- Applications: Residential single-and multi-family doors.
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2.
- Schlage has transitioned their FA series knobs and levers to the F Series. This item NOW comes with the Georgian rosettes.
- Non-locking - ideal for closets and rooms where locking is not needed.
- Interior screws are not concealed.
- Easy 3-step installation, only a screwdriver needed.
- Quality materials and construction for exceptional security.
- Quality finishes coordinate with plumbing and lighting.

Function: The Schlage Jazz Lever is available in Passage (F10 JAZ) function.
Finish: The Schlage Jazz Lever comes in Satin Nickel (619) and Satin Chrome (626) finish.
Handing: The Schlage F10 Jazz Passage Lever is a non-handed (reversible) lever.

All Schlage Locks come standard with Round Corner Adjustable Latch (RCAL) and Round Corner Strike (RCS).
All Schlage Locks come standard with Drive-in Collars needed to convert standard latches into the drive-in function.

Door Range: 1-3/8" - 1-3/4" (35mm - 44mm).

BacksetDual Backset Latch; adjustable for 2-3/8" or 2-3/4" backset.
Strike: 1-5/8" x 2-1/4" Radius Corner Faceplate, 7/8" Housing Diameter, 1/2" Throw, Round Corner.
