- Applications: Residential single-and multi-family doors.
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2.
- Interior screws are concealed.
- Easy 3-step installation, only a screwdriver needed.
- Quality materials and construction for exceptional security.
- Quality finishes coordinate with plumbing and lighting.

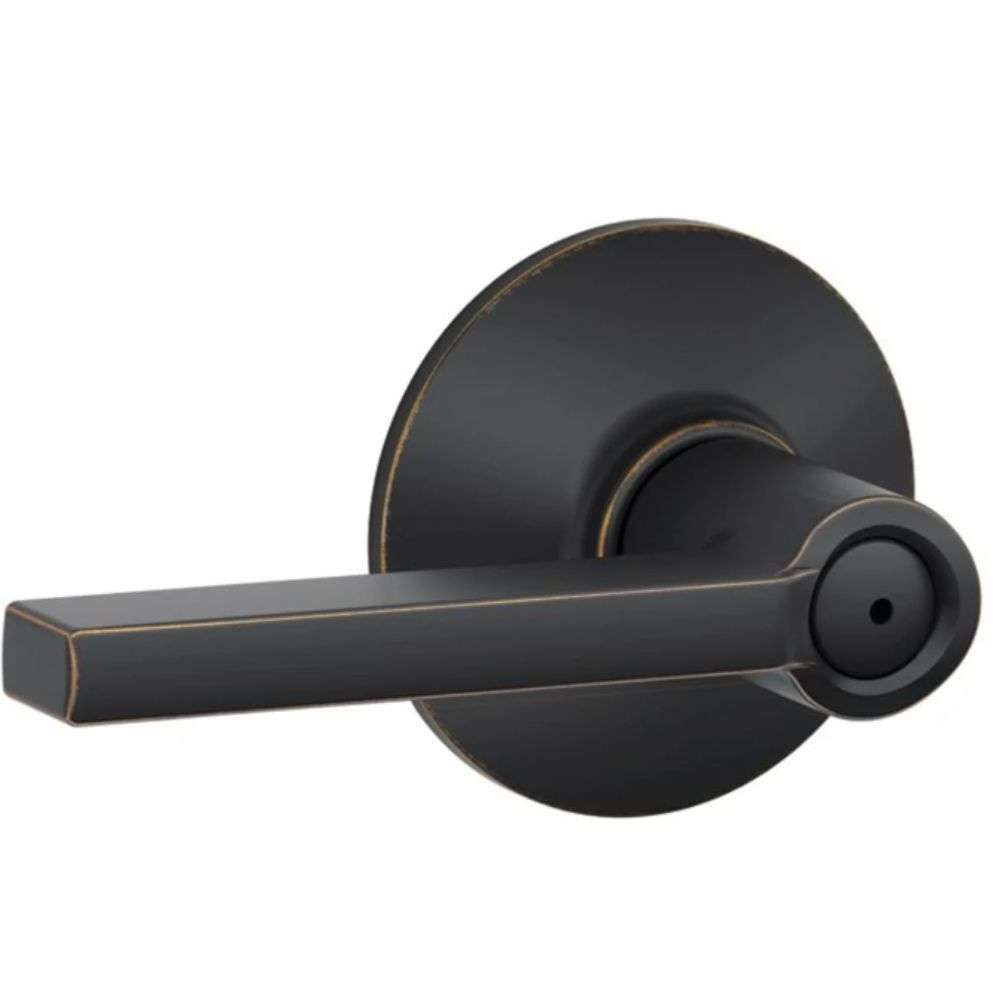

Function: The Schlage Latitude Lever is available in Passage (F10 LAT), Privacy (F40 LAT), Keyed Entry (F51A LAT), and Single Dummy (F170 LAT) function.
Finish: The Schlage Latitude Lever comes in Polished Nickel (618), Satin Nickel (619), Matte Black (622), Polished Chrome (625), Satin Chrome (626), and Aged Bronze (716) finish.
Handing: The Schlage Latitude Lever is a non-handed (reversible) lever.
Come standard with Triple Option (Round Corner, Square Corner, Drive-in) Spring Latches (16-210) and Dead Latches (16-211).
Door Range: 1-3/8" - 1-3/4" (35mm - 44mm).
Backset: Dual Backset Latch; adjustable for 2-3/8" or 2-3/4" backset.
Strike: 1-5/8" x 2-1/4" Radius Corner Faceplate, 7/8" Housing Diameter, 1/2" Throw, Round Corner.
