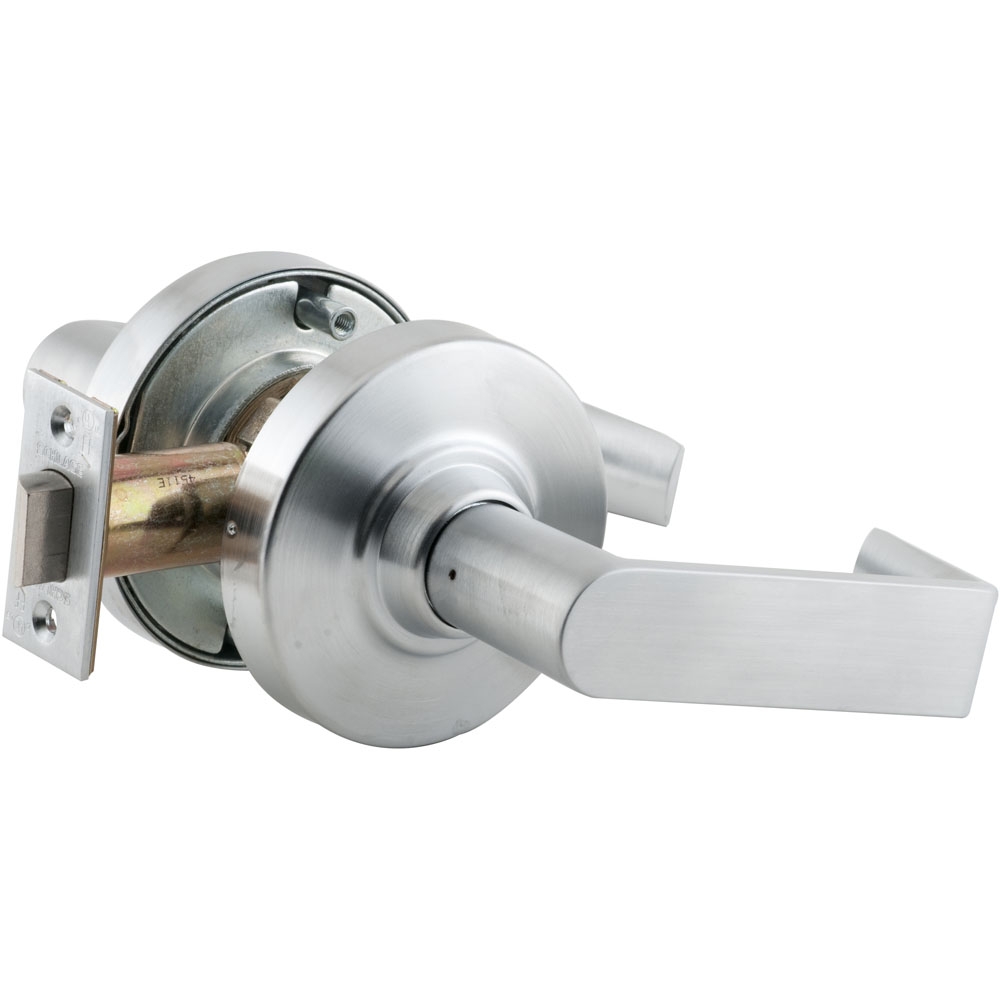

Schlage ND12D-RHO-626 Exit Function, Cylindrical Lock
The ND-Series has long been one of Schlage’s best selling mechanical locks for good reason - it’s tough, durable, Grade 1 rated and fits a wide variety of applications. Now we’ve made our trusted ND-Series lock even better by making it easier to install. We’ve added these enhancements because we know that a lock installed correctly the first time will last longer and perform better. And the longer the lock lasts, the lower the cost of ownership over the life of the lock. We’ve also increased our warranty to provide 10 years of coverage. The result: greater peace of mind that every door is safe and secured with a lock built to last.
So not only do you get our toughest Grade 1 cylindrical lock, that is ideal for use in schools, hospitals, offices, retail spaces, colleges, universities and other applications.
The safety and security of your clients’ buildings is something we take very seriously. That’s why every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level:
-Cycle tests
-Resistance tests
-Door impact tests
-Warped door tests
-Bolt strength tests
We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our ND-Series locks meets ANSI Grade 1 standards for safety.
The Schlage ND Series is the toughest cylindrical lock we make. That means you get premium durability and performance in a lock that’s also easy to service and maintain. And because we test our locks beyond the standards required by ANSI, you know that you’re getting a product you can count on to withstand the use and abuse that come with heavy duty commercial applications.
-Tested to at least 3 times the 1,000,000-cycle ANSI Grade 1 requirement
-Exceeds ANSI A156.2, Series 4000 Grade 1 locked lever torque requirements
-The only cylindrical lock available with our exclusive Vandlgard® technology
Door Handing
All ND levers are reversible. Hand information is necessary to ensure proper cylinder orientation in keyed functions, and finish of latchbolt and strike for locks that are to be installed on reverse bevel doors. Follow the diagram to correctly determine the hand of the door.
ADA-Compliant Products
In compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilities. The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with disabilities with access equal to, or similar to, that available to the general public.
Specifications
- Handing: All ND-Series lever locksets are non-handed.
- Door Thickness: 1 5/8” to 2 1/8” (41mm–54mm) standard including Vandlgard® functions. 1 3/4” - 2” for function ND85. See accessories for spacers required for 1 3/8” doors.
- Backset: 2 3/4” (70 mm) standard. 2 3/8”, 3 3/4” and 5” (60 mm, 95 mm, 127 mm) optional.
- Faceplate: Brass, bronze or stainless steel. 1 1/8” x 2 1/4” (29 mm x 57mm) square corner, beveled.
- Lock Chassis: Zinc plated for corrosion resistance.
- Latch Bolt: Steel, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors.
- Exposed Trim: Levers: Pressure cast zinc, plated to match finish symbols. Roses: Brass, bronze or zinc.
- Strike: ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center standard. Optional strikes, lip lengths and ANSI strike box available.
- Warranty: Ten-year limited for all functions including Vandlgard.
