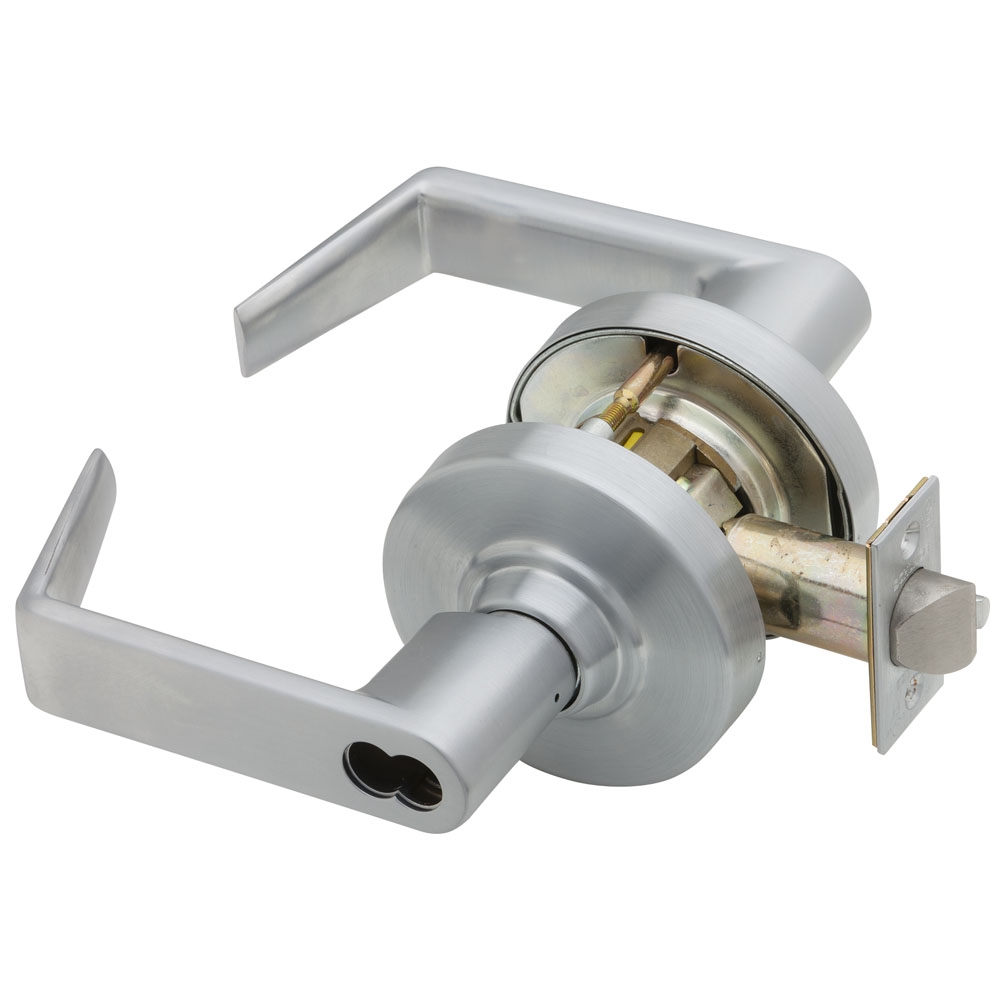

Schlage ND66JD-RHO-626 Grade 1, Cylindrical Lock

SKU # SC/ND66JD-RHO-626

Schlage ND66JD-RHO-626 Grade 1, Cylindrical Lock

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

ND66 – Key in either lever locks or unlocks both levers.

Caution: Double cylinder locks on any door, in any structure, which is used for egress can create a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

Significantly exceeds ANSI/BHMA Grade 1 requirements
Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
The strongest cylindrical lock Schlage has ever built

This item is available on our
GSA contract # 47QSWA19D001W

US$574.20

Qty:

Description:

Schlage ND66JD-RHO-626 Grade 1, Cylindrical Lock

The Schlage ND66PD-RHO-626 series of Rhodes heavy-duty commercial cylindrical lock very easily stand up to constant use and abuse while keeping people and property safe. Our ND-Series locks have an ANSI Grade 1 rating and come in a choice of styles and finishes that fit your building's design. Every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level as we believe the safety and security of your buildings is something that should be taken very seriously. Schlage lock ND Series locks are the toughest cylindrical lock that gives you premium durability and performance in a lock which is easy to service and maintain.

Features and Benefits:

Satin Chromium Plated finish
Rhodes (RHO) Lever
Pressure cast zinc lever; wrought brass rose construction material
ANSI: F91
Standard keys are included
Store Lock: Key in either Lever locks or unlocks both Levers
Strike: 1-1/4" x 4-7/8" ANSI type
Backset: 2-3/4"(70mm) standard
Rose Diameter: 3-7/16"
Projection: 2-1/2"
Lever Length: 4-7/8"
Door Thickness: 1-5/8" - 2-1/8" (41mm - 54mm) standard
UL listed hardware for up to three-hour fire door
Strike: 1-1/4" x 4-7/8" ANSI type
ANSI/BHMA A156.2-2011, series 4000 Grade 1 certified
Latch: 1-1/8" x 2-1/4", square corner faceplate, 1" housing diameter, 1/2" throw
6-Pin Everest 29 S123 keyway standard cylinder
Very easy installation
