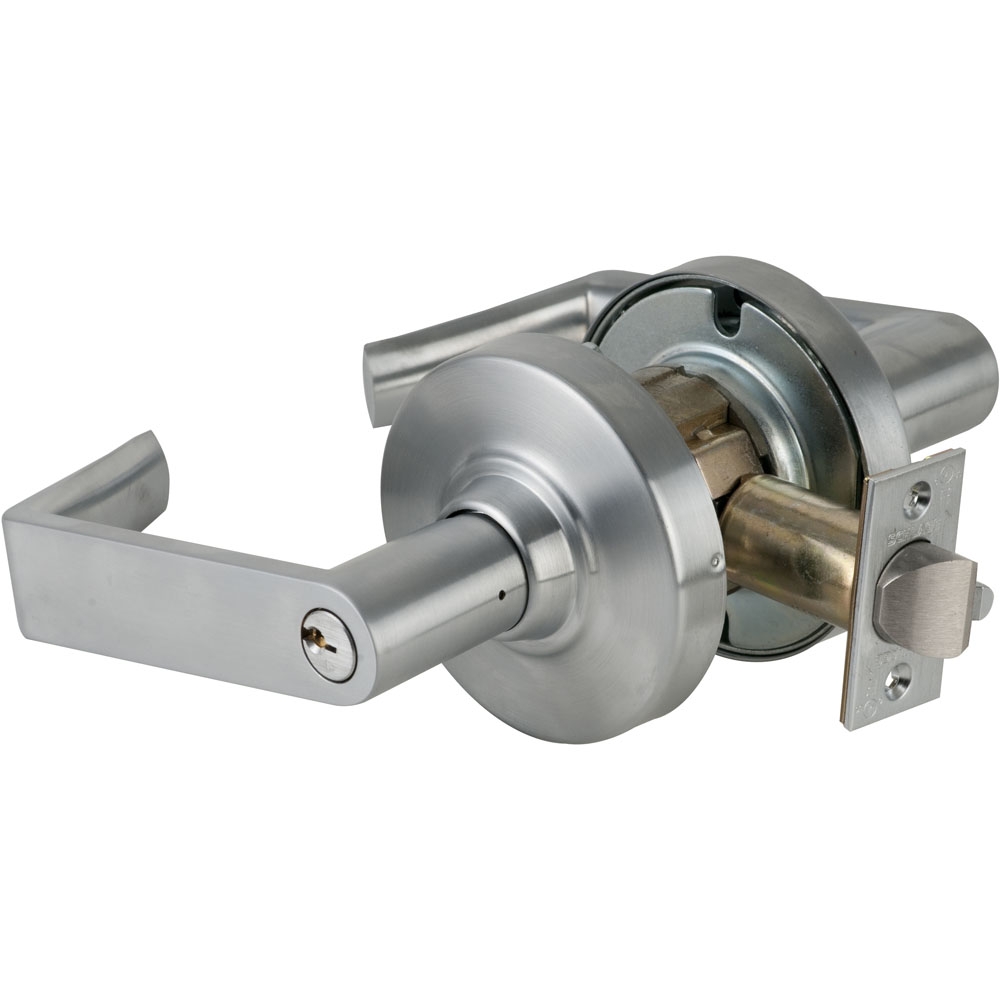

Schlage ND66PD-RHO-626 Grade 1, Cylindrical Lock

SKU # SC/ND66PD-RHO-626

Read Review(s) | Log in to Review

Schlage ND66PD-RHO-626 Grade 1, Cylindrical Lock

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

ND66 – Key in either lever locks or unlocks both levers.

Caution: Double cylinder locks on any door, in any structure, which is used for egress can create a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
  • Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built
G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$609.00

Description:

Description:

Schlage ND66PD-RHO-626 Grade 1, Cylindrical Lock

The Schlage ND66PD-RHO-626 series of Rhodes heavy-duty commercial cylindrical lock very easily stand up to constant use and abuse while keeping people and property safe. Our ND-Series locks have an ANSI Grade 1 rating and come in a choice of styles and finishes that fit your building's design. Every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level as we believe the safety and security of your buildings is something that should be taken very seriously. Schlage lock ND Series locks are the toughest cylindrical lock that gives you premium durability and performance in a lock which is easy to service and maintain.

Features and Benefits:

  • Satin Chromium Plated finish
  • Rhodes (RHO) Lever
  • Pressure cast zinc lever; wrought brass rose construction material
  • ANSI: F91
  • Standard keys are included
  • Store Lock: Key in either Lever locks or unlocks both Levers
  • Strike: 1-1/4" x 4-7/8" ANSI type
  • Backset: 2-3/4"(70mm) standard
  • Rose Diameter: 3-7/16"
  • Projection: 2-1/2"
  • Lever Length: 4-7/8"
  • Door Thickness: 1-5/8" - 2-1/8" (41mm - 54mm) standard
  • UL listed hardware for up to three-hour fire door
  • Strike: 1-1/4" x 4-7/8" ANSI type
  • ANSI/BHMA A156.2-2011, series 4000 Grade 1 certified
  • Latch: 1-1/8" x 2-1/4", square corner faceplate, 1" housing diameter, 1/2" throw
  • 6-Pin Everest 29 S123 keyway standard cylinder
  • Very easy installation

Specifications:

Specifications:

Click here for Schlage ND Catalog

Literature:

Literature:

Click here for Schlage Key Systems Catalog
