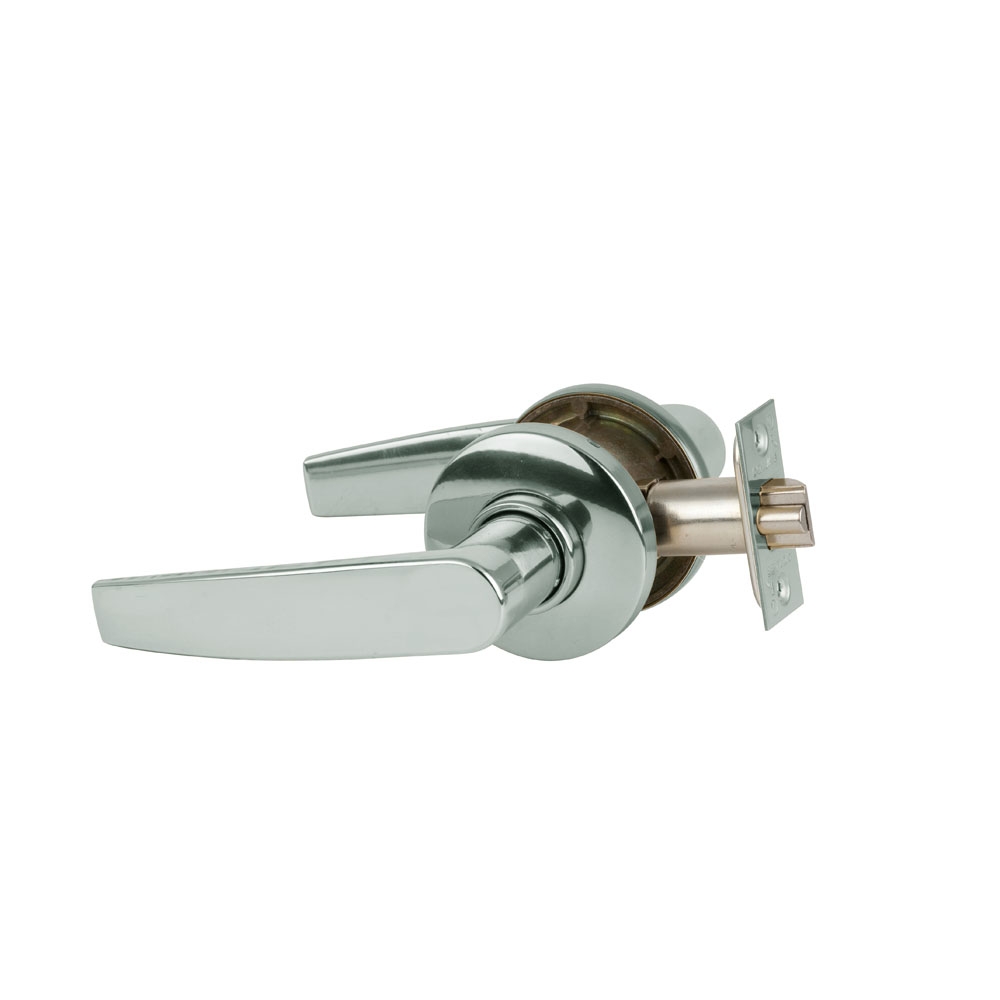

Schlage S10D-JUP-625 Tubular Lever Lock, Passage

SKU # SC/S10D-JUP-625

The Schlage S10D-JUP-625 Tubular Lever Lock, Passage is a Passage Function, Tubular Lever Lock, Jupiter Style Lever for the S Series.The Schlage S Series are interior-use, Grade 2 locks that are ideal for light commercial applications like small hotels, laboratories and office tenant space, as well as apartment buildings. Heat treated locking components add strength while Schlage solid levers in plated zinc are engineered for long life and optimum durability. The lever designs are ADA compliant.

Features include:

  • Jupiter Lever
  • Passage latch - Both levers always unlocked
  • S Series lock functions - ANSI A156.2 Series 4000 Grade 2 - Non-keyed function
  • Bright Chrome Finish
G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$189.00

Description:

Description:

Schlage S10D-JUP-625 Tubular Lever Lock, Passage

Smart security for light commercial and multi-family applications.
At Schlage, we know that every product you specify has to stand up to constant use, while meeting your needs for security at every level. Our S Series and S200 Series locks are designed to deliver constant, reliable performance in light commercial applications like small hotels, laboratories and office tenant spaces, as well as apartment buildings.


The safety and security of your buildings is something we take very seriously. That's why every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level:
- Cycle tests            - Warped door tests
- Resistance tests    - Bolt strength tests
- Door impact tests

Features and Benefits
- Engineered for long life and optimum durability.
- Heat-treated steel locking components for extra strength.
- Independent heavy-duty lever torsion springs for durability and long life.

ADA-Compliant Products
In compliance with the American National Standard Institute (ANSI A117.1) and the Americans with Disabilites Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilites.

Function: The Schlage S-Series Levers are available in Passage (S10D), Privacy (S40D), Keyed Entry (S51D), Classroom (S70D), Storeroom (S80D), and Single Dummy (S170) function.
Finish: The Schlage S-Series Levers come in Brass (605), Oil Rubbed Bronze (613), and Satin Chrome (626) finish.
Lever Design: The Schlage S-Series Levers come in Neptune (NEP) design.

All Schlage S-Series Locks come standard with Square Corner Backset Latch (Spring Latch 16-203; Deadlatch 16-203) and Square Corner Strike (10-001).
If you require Round Corner Strikes (10-004) please order from our Door Strikes Section.

Special Order Information: For pricing on any function or finish of the Schlage Commerical S-Series Levers not found on this page please contact Taylor Security direct via e-mail (sales@taylorsecurity.com) or call us toll-free at 1-800-676-7670.

Specifications:

Literature:

Product Videos:

Product Videos:
