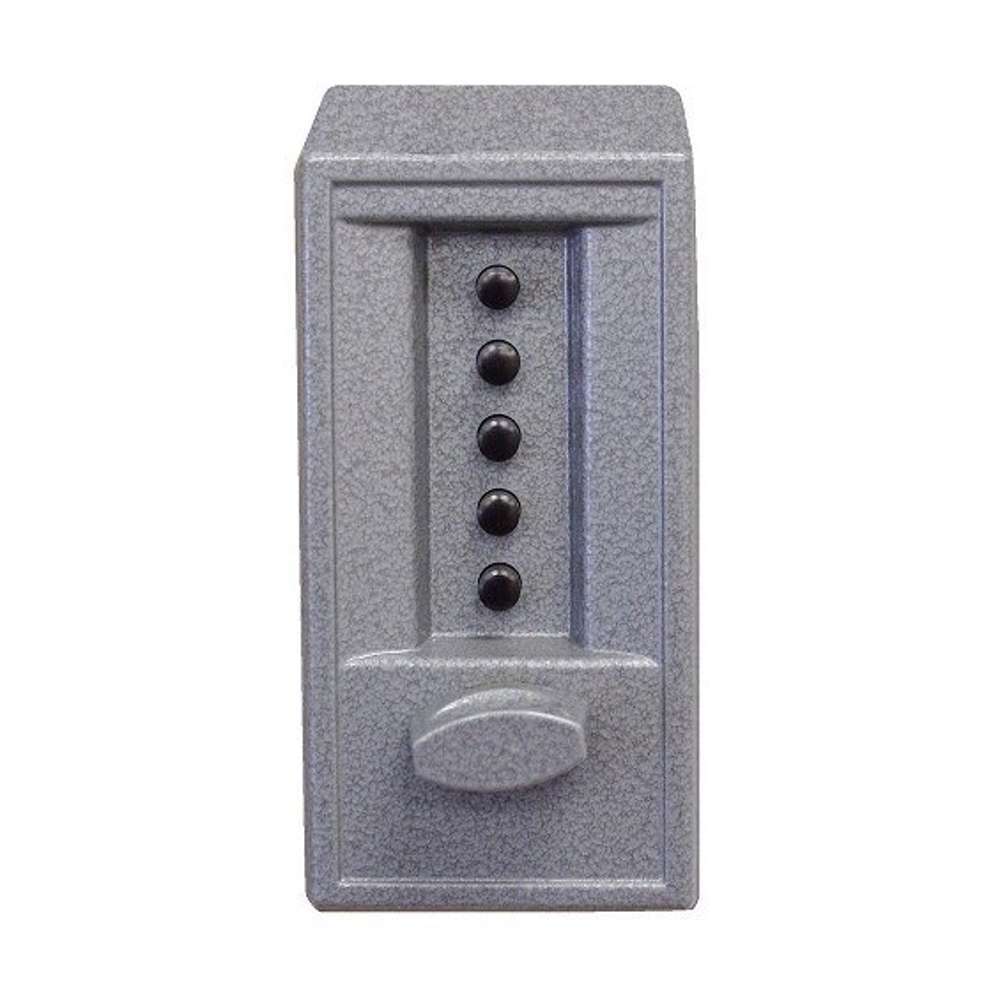

Kaba Access 6202-86-41 Cylindrical Combination Lock
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.
Simplex 6000 provides fully mechanical exterior access by combination, while allowing free egress at all times by interior knob. This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
No Battery:
Fully mechanical lock eliminates the material and labor expense of battery replacements
Locking Device:
Cylindrical latch with 3-hour UL/ULC fire rating for "A" labeled doors
Number of Codes:
Single access code—one easy-to-manage code for all users
Programming:
Lock is easily programmed via keypad without removing lock from the door
Handing:
Factory-handed left; easily field reversible
Operation Mode:
Pushbutton access
Technical Details
Construction: All metal cast front housing, force-resistant, clutch-protected exterior thumbturn, unified interior trim plate, fixed interior knob
Numeric Keypad: Vandal resistant, solid metal pushbuttons
Handing: Factory-handed left; easily field reversible
Latch: ½" (13 mm) throw latch, floating faceplate (UL listed)
Backset: 2¾" (70 mm) or 2⅜" (60 mm) backset
Minimum Stile Recommended: 5" (127 mm)
Strike: Standard strike plate
Installation: ASA 161 door preparation with two additional through bore holes. Lock can be inverted if the existing auxiliary lock obstructs installation.
Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm); wood or metal
Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
Durability: Weather resistant
