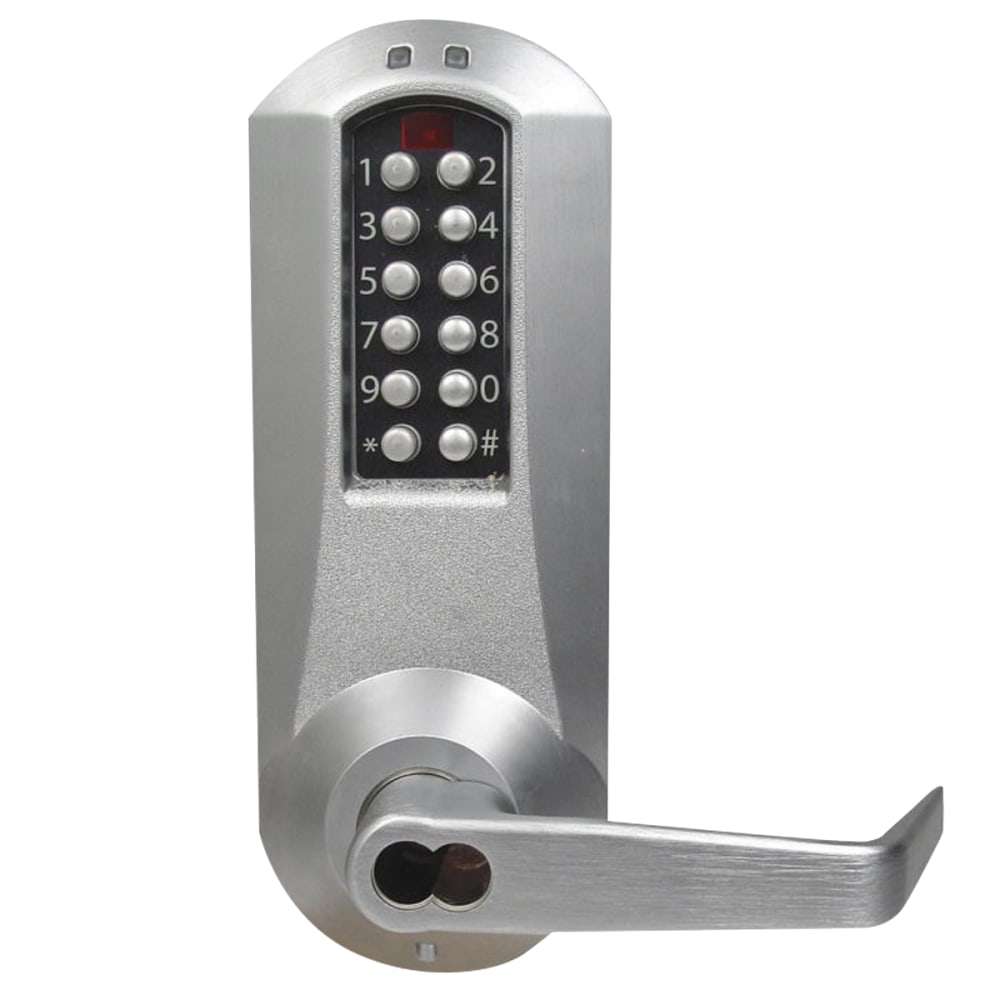

Kaba Access E5031RWL-626-41 E-Plex 5000 Cylindrical Lock

SKU # SI/E5031RWL-626

Kaba Access E5031RWL-626-41 E-Plex 5000 Cylindrical Lock

Product Features:

  • Electronic pushbutton lock - 100 access codes per door (upgrade to 300 via software).
  • Locks are programmed via keypad or with optional Microsoft Excel based software - Simplifies management of doors and users
  • Non Handed: pre-assembled for left hand door - easily changed in the field
  • Three Operation Modes: PIN access Lockout Passage can be toggled on/off or can be pre-programmed to relock after a certain number of hours
  • Audit Trail: The most recent 9,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events.
  • Batteries located in interior housing cover; offers quick and easy battery replacements (Four AA Alkaline batteries provide up to 180,000 cycles); lock data is maintained if batteries fail
  • Extra heavy-duty cylindrical lockset, solid cast housings, solid cast levers, cylindrical drive wear tested for exten- sive use in indoor and outdoor applications
  • Cylindrical latch with 3-hour UL/ULC fire rating
  • Door Thickness: 1 3/8" (35 mm) to 2 1/4" (57 mm) Pre-assembled to accommodate doors 1 5/8" (41 mm) to 2" (50 mm)
  • ANSI/BHMA A156.25, Grade 1 Certified
  • Indoor/Outdoor Approved Front Housing: -31F (-35C) to + 151F (66C) Rear Housing: -31F (-35C) to + 130F (55C)
  • Warranty: Three-year warranty from date of installation; built-in warranty counter in lock memory
G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$616.55

Description:

Description:

Kaba Access E5031RWL-626-41 E-Plex 5000 Cylindrical Lock

The Eplex E5031RWL-626-41 series of Eplex Electronic Pushbutton Lock eliminate problems and costs associated with issuing, controlling and collecting keys and cards. The E-Plex 5000 Electronic Pushbutton Lock Series provides exterior access by combination, while allowing free egress. Unican Kaba Ilco Simplex is the leader in top of the line security solutions that presents industrial strength combination lock with high quality security products for over 100 years now. For a security lock, the highly weather resistant Eplex 5000 Series earns an impressive Grade 1 rating from ANSI (American National Standards Institute) - this rating is the highest one they give out for quality. The Eplex 5000 grants entry upon successful validation of a 1 to 5 digit code that you pre-program into the lock. Being vandal protected hardware, the Eplex series of PIN based locks find widespread acceptance in high-traffic commercial, institutional, and government buildings throughout the world.

Features and Benefits:

  • Core is not included
  • Satin Chrome Finish
  • Electronic pushbutton lock
  • Extra heavy-duty Grade 1 lock with solid cast housings construction
  • Multiple Users with upto 100 Codes which can be upgraded to 300 Codes with optional software
  • ADA compliant lock
  • Cylindrical Lock function
  • With Winston lever
  • Batteries located in interior housing cover that offers quick and easy battery replacement for institutions - lock data is maintained even if batteries fail
  • Non-handed operation; pre-assembled for left-hand door installations and is easily changed in the field
  • UL/ULC fire door rating for "A" labeled doors upto 3 hours
  • Audible and visual indicators alongwith low battery visual indicator
  • Locks are programmed via keypad or with optional Microsoft Excel-based software
  • Recently 9,000 lock events are recorded in memory including use of the mechanical key override
  • Vandal resistant hardware with solid metal pushbuttons
  • It easily installs on wood or metal doors with four bolt installation and no wiring
  • Prepped for Sargent removable core
  • Very ease of installation as the LectroBolt eliminates wiring to or through the door with no risk of pinched wires
  • Floating face plate
  • Minimum Stile required: 5" (127 mm)
  • Cylindrical throw latch: 1/2 inch (13 mm) throw latch
  • Backset: 2-3/4 inch (70 mm)
  • 3-year warranty from date of installation; built-in warranty counter in lock memory

Specifications:
