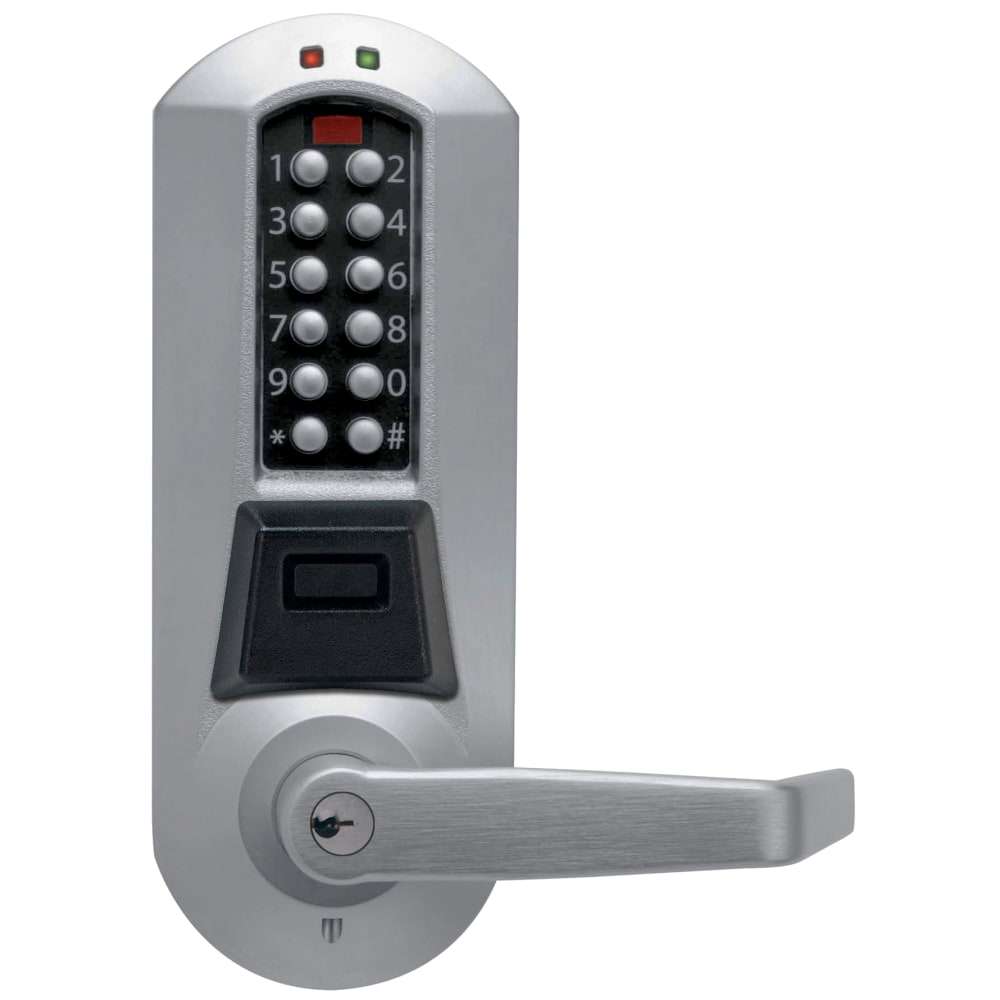

Kaba Access E5731XSWL-626-41 E-Plex Cylindrical Prox Lock

Kaba Access E5731XSWL-626-41 E-Plex Cylindrical Prox Lock

• Access Control: Electronic lock with dual credential capability—PIN and/or PROX card (HID, 125 kHz, 26 to 84-bit format). Lock is scheduled to require credentials based on security and convenience requirements.
  • PIN only
  • PROX card only
  • PIN + PROX card
• No Wires: E-Plex’s LectroBolt eliminates running wires to or through the door—no risk of damage from pinched wires that can result in costly callbacks
• Locking Device Options: • Cylindrical: Cylindrical latch with 3-hour UL/ULC fire rating
• Number of Users: Multiple Users—300 with LearnLok feature; 3,000 with optional software
• Programming: Locks are programmed simply via keypad using LearnLok Feature without any software, or with optional E-Plex Enterprise Software to manage a large number of doors and users
• Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field
• Scheduling: Access schedules—up to 16 different access schedules may be programmed into lock Holiday/Vacation—up to 32 different holiday/ vacation blocks may be programmed into lock
• Operation Modes: • PIN access • Passage—can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours • Lockout
• Battery Operation: Batteries located in interior housing cover; offers quick and easy battery replacement for institutions; four AA Alkaline batteries provide up to 120,000 cycles; 400,000 cycles with high capacity "C" battery pack. Lock data is maintained if batteries fail.
• Backset: Cylindrical: 2¾" (70 mm) backset, 2?" (60 mm) backset
• Latches: Cylindrical Models: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
• Minimum Stile Required: 5" (127 mm)
• Door Thickness: Cylindrical Model: 1?" (35 mm) to 2¼" (57 mm); pre-assembled to accommodate doors 1?" (41 mm) to 2" (51 mm); hardware kits included for thin and thick doors
• Audit Capability: 30,000 Events
• Certification and Testing:
• Accessibility Standard: Americans with Disabilities Act (ADA)
• Fire Rating: 3-hour, UL/ULC fire door rating for "A" labeled doors
• Durability: ANSI/BHMA Grade 1 Certified (A156.25, A156.2, A156.13, A156.3)
• Environmental: Indoor/Outdoor Approved Front Housing: -31 °F (-35 °C) to 151 °F (66 °C) Rear Housing: -31 °F (-35 °C) to 130 °F (55 °C)
• Warranty: Three-year warranty from date of installation; built-in warranty counter in lock memory
