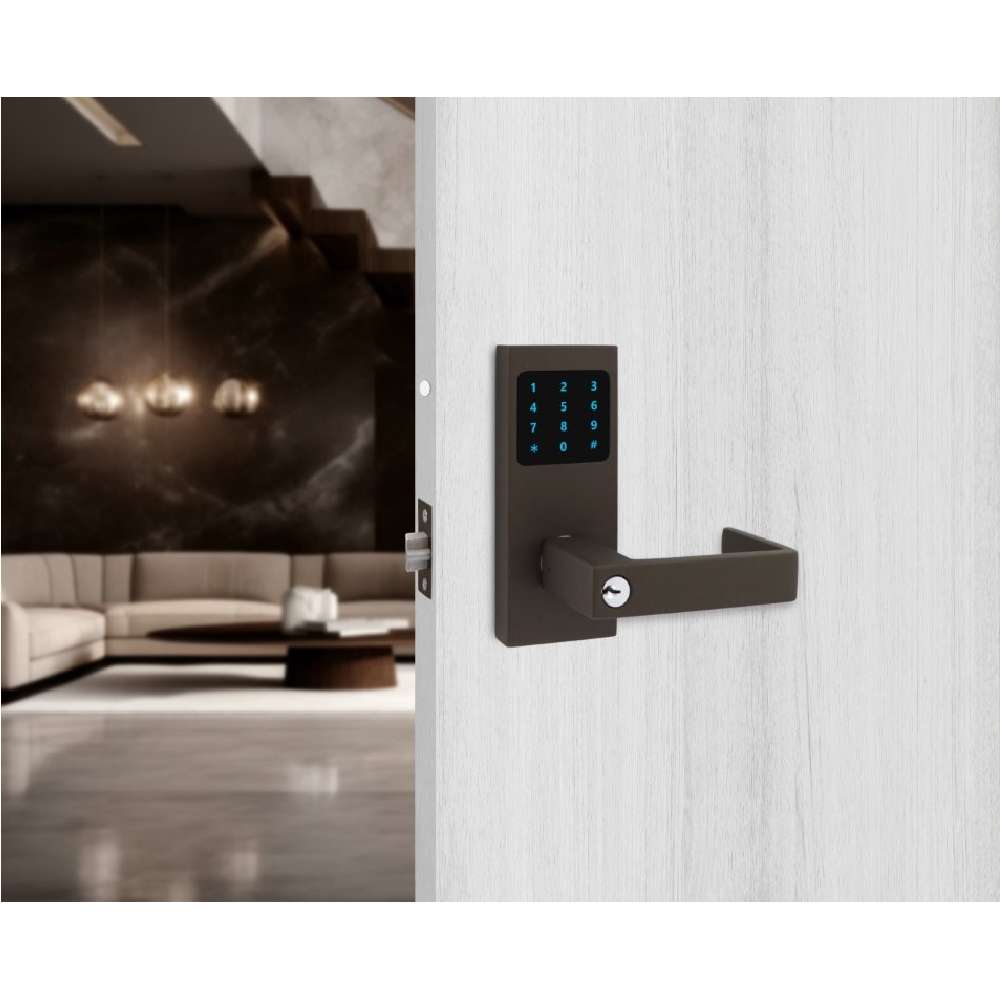

Inox ISCHPK734CY6153B626D Cyl Rdr Kobe Grd 2 Ent 2-3/8 Chm
- Grade 1 cylindrical lock with UL 3-hr fire-rated with 1/2" throw deadlatch that is completely reversible
- Intuitive mobile INOX app supports multiple users and properties with real time access management
- Entry function with easily programmable Privacy and Passage modes
- Door Positioning Sensor [DPS] with optional cloud monitoring features available on the App
- Multi-credential support: Passcodes, RFID FOB/Card/Wristband, and Smart Phone
- Remote Access and Management via Wi-Fi and Low Energy Bluetooth
- Cloud-based APP with multi-level user roles
- Customizable permissions and levels for managing e-keys, users, and devices
- Audit trails with 100,000 records shows all Lock and Unlock activities
Door Thickness 1-3/4” (45mm) and 1-3/8" (35mm)
Door Prep
- Crossbore 2-1/8” (54mm),
- Edgebore 1” (25mm),
- Latch face 2-1/4” (57mm) x 1-1/8” (28.6mm)
Backset 2-3/4” (70mm) standard
Cylinder 6-pin anti-pick, solid brass cylinder
Keys
- Two (2) keys per lock. Schlage C keyway. IC Core and Keying Service available
Handing Non-handed
Latchbolt
- 1/2” (12.7mm) throw, Stainless Steel
- 3 hour fire rated latchbolt reversible
Pin Length 4~8 digits
User Capacity
- 2000 Total
- (1000 RF/Passcode + 1000 Mobile)
Temperature -20 to 140 degrees F
Keypad Digital Touchscreen
- 26D Satin Chrome
- 19G Graphite Black
- PVD4 Satin Brass
- PVD15 Satin Nickel
- CeraMax Ceramic Coating: C19G Graphite Black,
- C19 Flat Black, CGY Stormy Grey, CDB Dark Bronze
