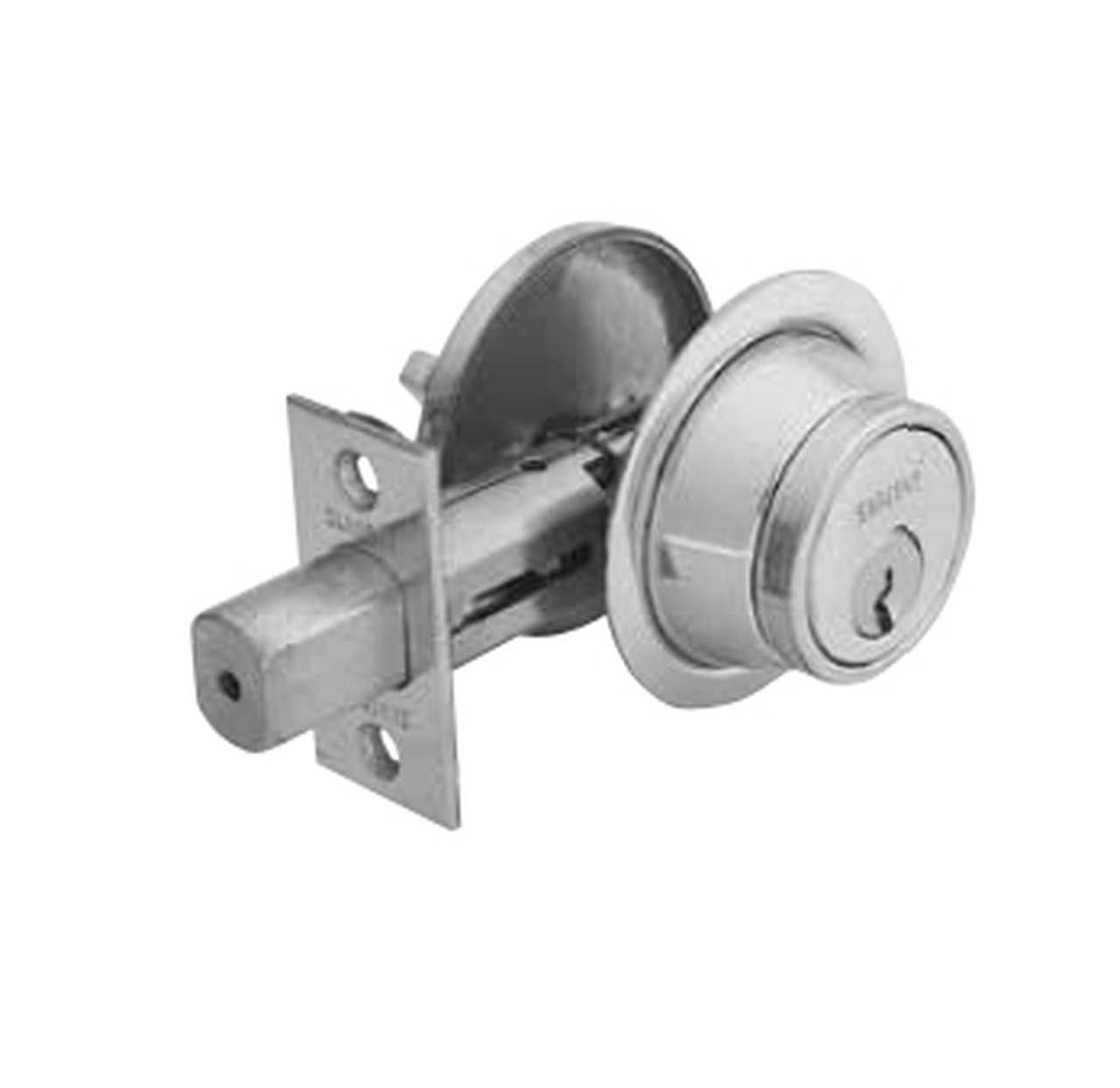

The Sargent 474-26D Double Cylinder Deadbolt is a Satin Chrome Double Cylinder Deadbolt. The 470 series is a medium grade cylindrical deadbolt which meets Grade 2 ANSI 156.5 1000 series specifications.
Features include:
- Sargent 470 Series Double Cylinder Deadbolt
- Satin Chrome
- Key from either side operates deadbolt
- Use only on rooms with more than one exit
- Backsets: 2-3/8" (61 mm) or 2-3/4" (70 mm) adjustable backset
- Strike: 406 Strike standard.
- Bolt: Brass with hardened steel pin; 5/8" (16 mm) x 13/16" (21 mm) x 1" (25 mm) throw
- Cylinder: Brass, 6 pin cylinder
- Front: Stamped brass strike 2-1/4 " (57 mm) x 1" (25 mm) wide with filler for 1-1/8" (29 mm) wide
- Hand: Universal - non handed
- Specification: Grade 2 ANSI 156.5 1000 series
