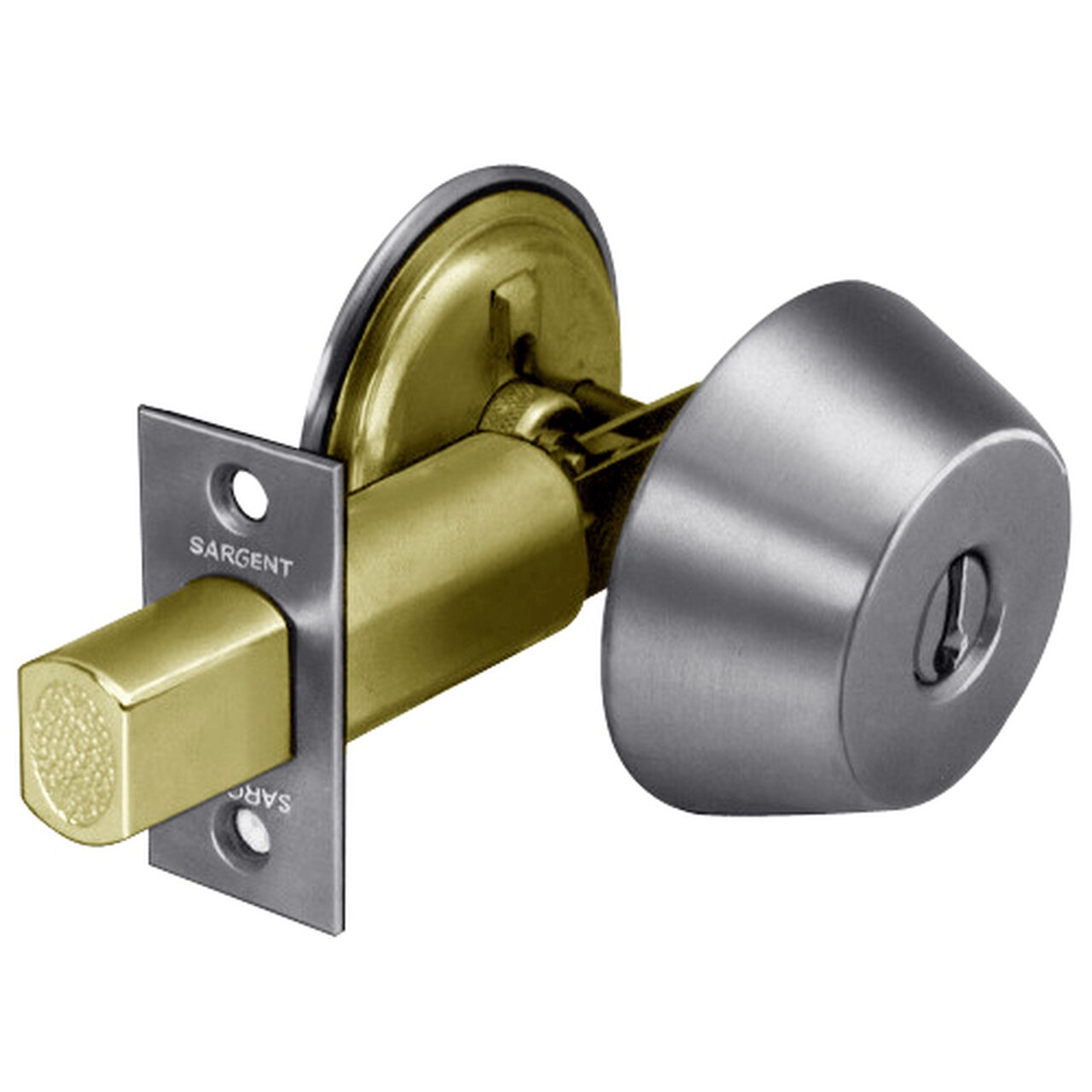

The Sargent 486-26D Single Cylinder X Blank Plate Deadbolt is a Satin Chrome Single Cylinder X Blank Plate Deadbolt. The 480 series is a high grade cylindrical deadbolt which meets ANSI A156.36 Grade 1 requirements.
Features include:
- Sargent 480 Series Single Cylinder X Blank Plate Deadbolt
- Satin Chrome
- Key outside operates deadbolt
- Blank plate by exposed screws inside. Minimum 1" (25mm) required between doors
- ANSI EO161
- *Use only on rooms with more than one exit
- Backsets: 2-3/4" (70 mm) standard.
- Strike: Stainless steel
- Bolt: Solid steel with hardened steel pin insert and nickel silver plating; 7/8" (22 mm) x 5/8" (16 mm)x1"(25mm) throw
- Cylinder: Brass, 6 pin. 2 nickel silver keys
- Specification: Meets ANSI A156.5 Grade 1 requirements with 408 or 488 strike
- Front: Stainless steel 2-1/4" (57 mm) x 1-1/8" (29mm) with fixed bevel 1/8" (3mm) in 2" (51mm) furnished standard
- Hand: Non-handed, field reversible
- UL/cUL Listed: UL listed to US and Canadian safety standards
