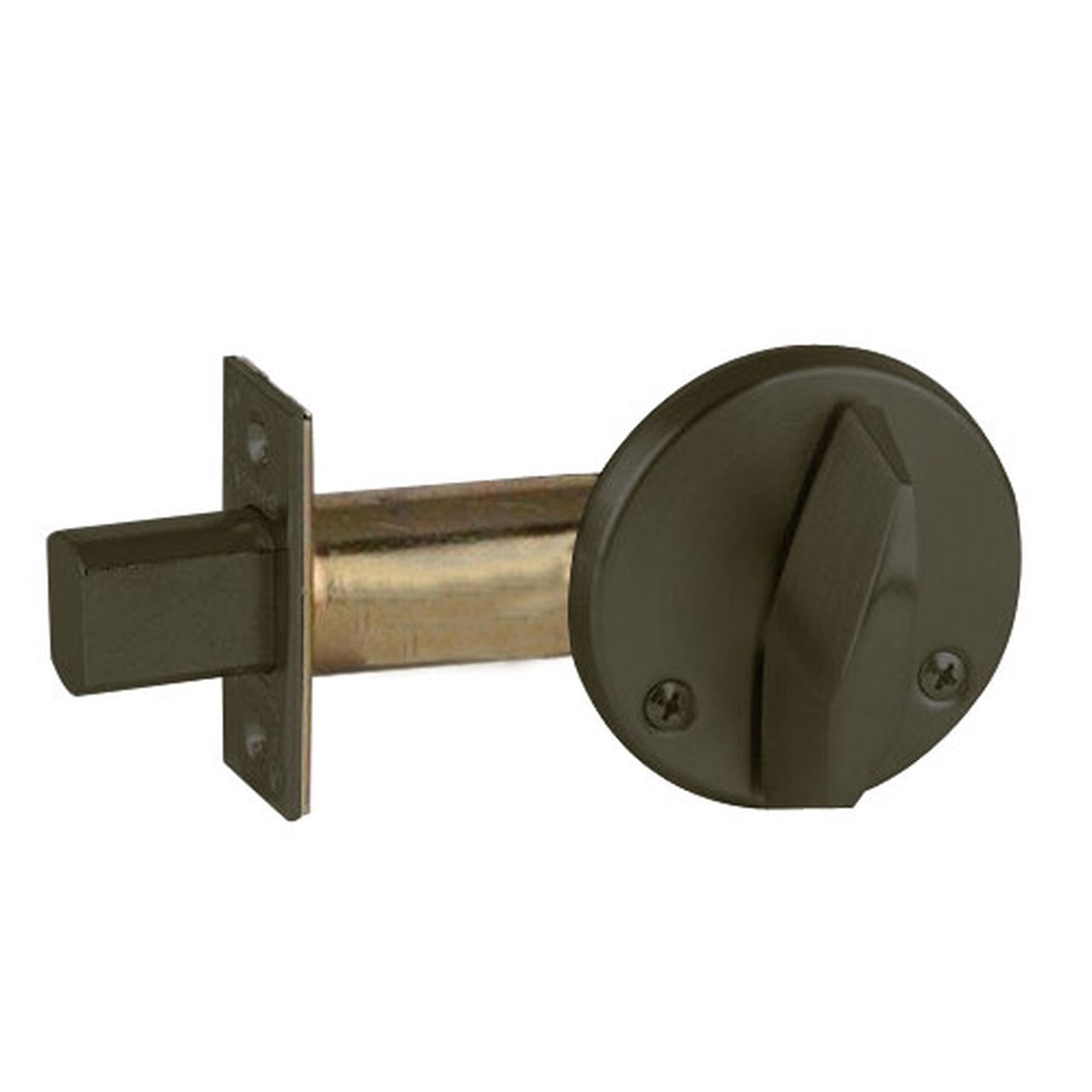

Schlage B680-613 Door Bolt
The Schlage B680-626 series are Schlage's highest grade deadbolt locks and the new industry leading deadbolt. The Schlage B600 Series is best suitable for Grade 1 security in high-traffic commercial applications. A multeity of functions and finishes makes the B600 series a versatile choice for added security. Built to withstand the demands of the toughest commercial applications, this series is also recommended for residential use. Some features include solid brass trim ring, 1/4 inch diameter through bolts and a high strength, solid steel alloy deadbolt.
- ANSI: E0191
- Deadbolt: 1-1/8" x 2-1/4", square corner faceplate, 1" housing diameter, 1" throw
- Door Bolt: Deadbolt thrown or retracted by thumbturn inside
- Trim Rings: 7/8" solid brass or bronze
- Backset: 2-3/4" standard
- Door Thickness: 1-5/8" - 2" standard cylinder
- No outside trim
- ANSI/BHMA certified A156.36-2010, Grade 1 auxiliary lock
- Strike: 1-1/8" x 2-3/4" square corner
