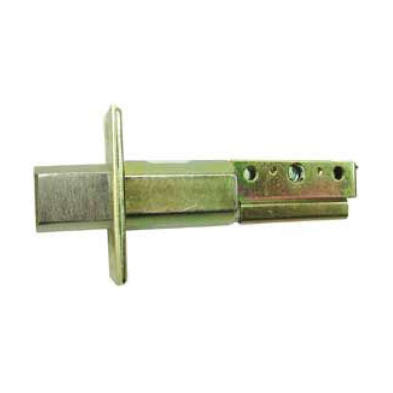

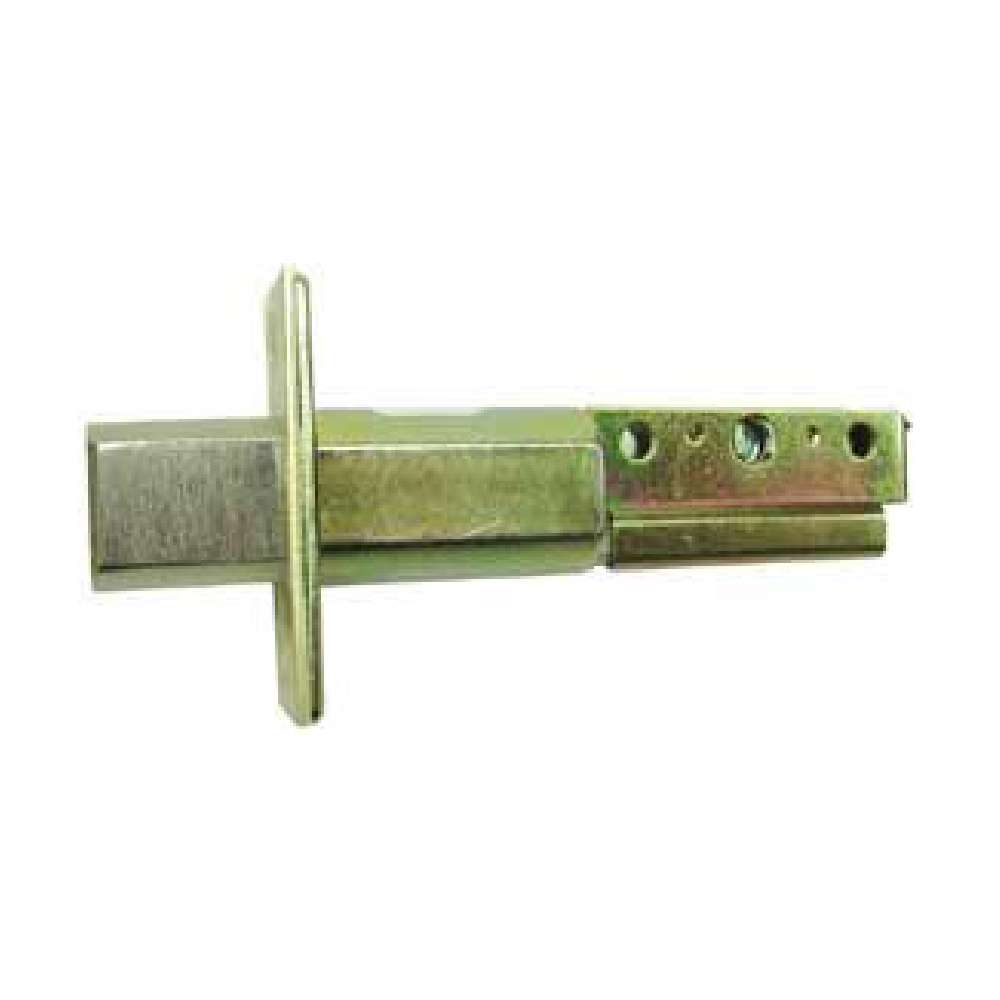

Kaba Simplex 7102 Deadbolt Assembly, 2-3/4" Backset
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.
Simplex 7100 Series provides fully mechanical primary or auxiliary pushbutton access control by exterior combination, while allowing free egress at all times by interior thumbturn. Deadbolt models must be manually relocked. Deadlocking latch models automatically relock each time the door closes.This fully mechanical lock elimates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
Product Details
No Battery:
Fully mechanical lock eliminates the material and labor expense of battery replacements
Locking Device Options:
Deadbolt—must be manually relocked
Deadlocking latch—relocks automatically when door closes
Rim locking latch—relocks automatically when door closes; also has latch holdback
Number of Codes:
Single access code—one easy-to-manage code for all users
Programming:
Lock is easily programmed via keypad without removing lock from the door
Handing:
Field reversible
Operation Modes:
Pushbutton Access
Latch Holdback (7106 only)
Technical Details
Construction: All metal cast front housing; force-resistant, clutch-protected exterior thumbturn
Numeric Keypad: Vandal resistant, solid metal pushbuttons
Handing: Field reversible
Latch:
1" (25 mm) tubular deadbolt
½" (13 mm) deadlocking latch
⅝" (16 mm) rim deadlocking latch
Backset: 2¾" (70 mm) or 2⅜" (60 mm) backset
Strike:
Models 7102 and 7108: Flat deadbolt strike plate
Model 7104: Curved lip strike plae
Model 7106: Box strike for in-swing doors and flat strike for out-swing doors
Minimum Stile Required: 4" (102 mm)
Installation:
1⅜" (35 mm) diameter through bore
1" (25 mm) diameter cross bore
¾" (19 mm) through bore
2 x ¼" through bores
Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm), wood or metal
