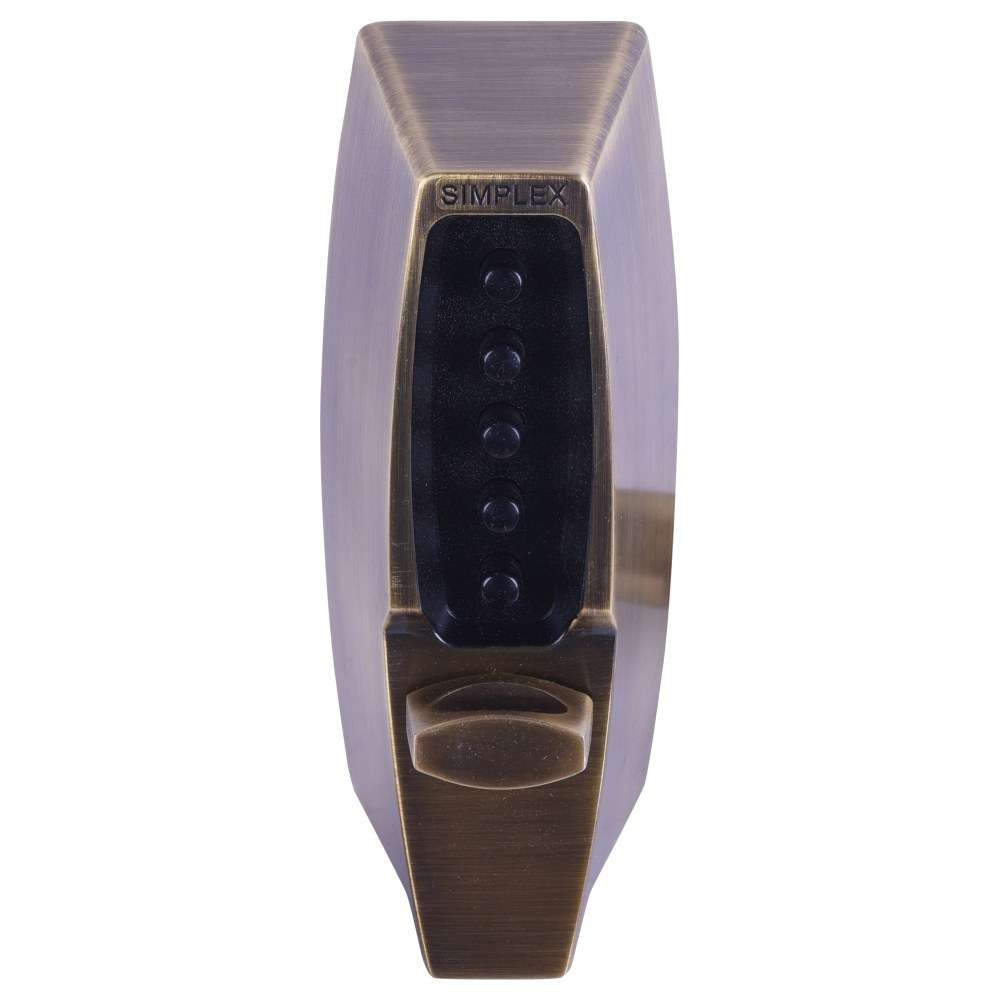

Simplex 7100 Series Mechanical Pushbutton Deadbolt Lock w/ Thumbturn
7100 Series Mechanical Pushbutton Lock with Thumbturn by Simplex / Unican
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.
The Simplex 7100 Series provides fully mechanical primary or auxiliary pushbutton access control by exterior combination, while allowing free egress at all times by interior thumbturn. Deadbolt models must be manually relocked. Deadlocking latch models automatically relock each time the door closes. This fully mechanical lock elimates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements.
Locking Device: Deadbolt - must be manually relocked. Deadlocking latch - relocks automatically when door closes. Rim locking latch - relocks automatically when door closes; also has latch holdback.
Number of Codes: Single access code - one easy-to-manage code for all users.
Programming: Lock is easily programmed via keypad without removing lock from the door.
Handing: Field reversible.
Economical: A cost effective access control solution.
Door Thickness: 1-3/8" to 2-1/4"; wood or metal.
Strike: Model 7102 and 7108: Flat deadbolt strike plate. Model 7104: Curved lip strike plate. Model 7106: Box strike for in-swing doors and flat strike for out-swing doors.
Backset: 2-3/8" or 2-3/4" backset.
Finish: Brass (03), Antique Brass (05), Black (19) & Satin Chrome (26D).
Operation Modes:
- 7102 - 1" Tubular Deadbolt, Flat Front Face Plate, 2-3/4" Backset.
- 7104 - 1/2" Deadlocking Latch, Flat Front Face Plate, Adjustable (2-3/8" to 2-3/4") Backset.
- 7106 - 5/8" Rim Deadlocking Latch, 2-3/8" Backset (for wood doors only).
- 7108 - 1" Tubular Deadbolt, Flat Front Face Plate, 2-3/8" Backset.
Special Order Information: For pricing on any function, keyway or finish of the Simplex 7100 Series not found on this page please contact Taylor Security direct via e-mail (sales@taylorsecurity.com) or call us toll-free at 1-800-676-7670.
