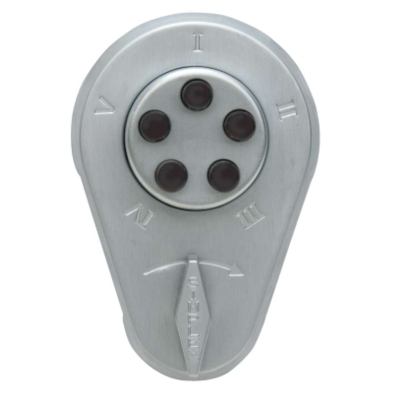

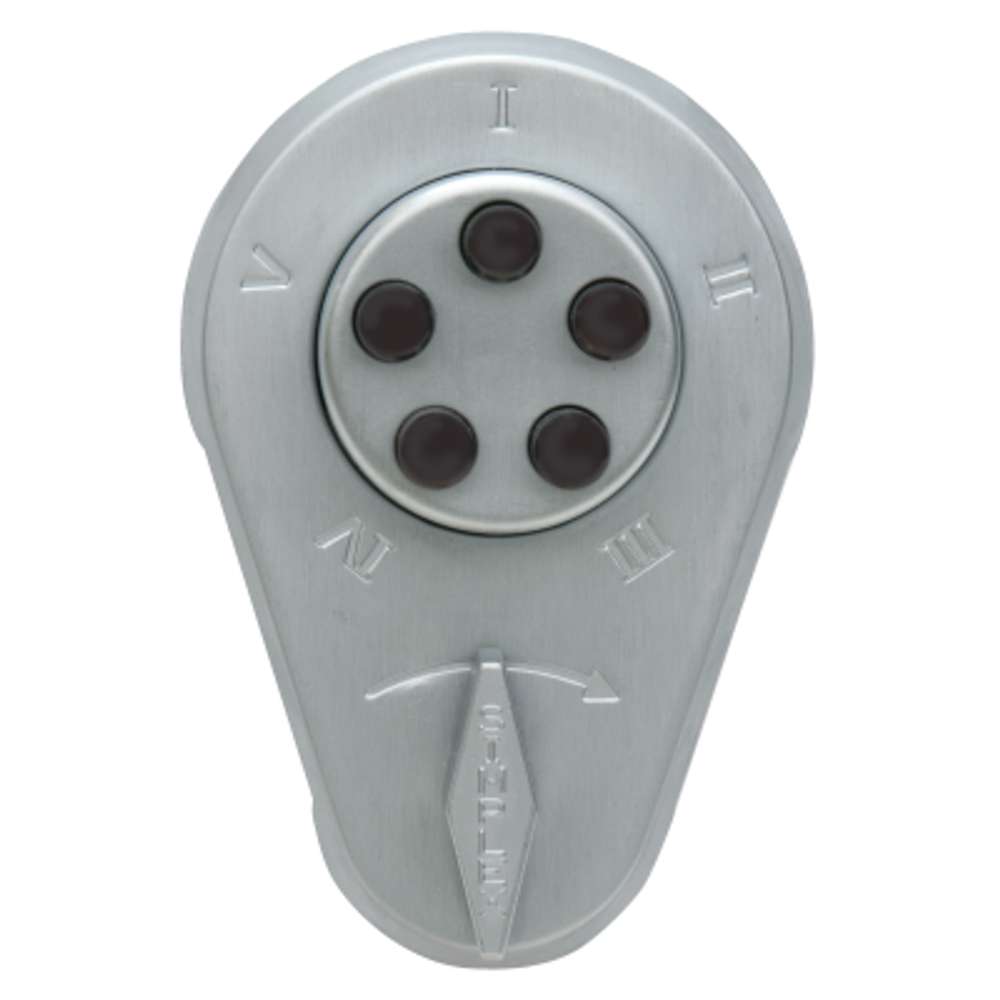

Kaba Access 9381360-26D-41 Combination Deadlatch
Access Control
Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides fully mechanical access control, while allowing free egress at all times by interior thumbturn. Deadbolt models must be manually relocked. Deadlocking spring latch models automatically relock each time the door closes.
No Battery
Fully mechanical lock eliminates the material and labor expense of battery replacements
Locking Device Options
Deadbolt—1" throw, manual relock Deadlocking Latch—⅝" throw with automatic relock
Number of Codes
Single access code—one easy-to-manage code for all users
Programming
Lock is easily programmed via keypad without removing lock from the door
Handing
Field reversible latch; invert the lock for right-hand doors; roman numerals are easily read in either orientation
Optional Key Override
Can be used to override the lock combination and gain access using a key. Allows facilities to initiate or maintain a master-keyed security system (keyed alike or keyed differently). Override models can be ordered with or without a cylinder.
Options
• Add panic bar release kit (select models)
• Keyed alike option available (select models)
• Latch holdback (select models)
• D.O.D. compliant (select model)
• Substitute a 2½" (64 mm) lever in place of the standard inside thumbturn (select models)
Operation Modes
Pushbutton Access
- Latch Holdback—keeps latch retracted to allow access with combination (select models)
Economical
- A cost effective access control solution
