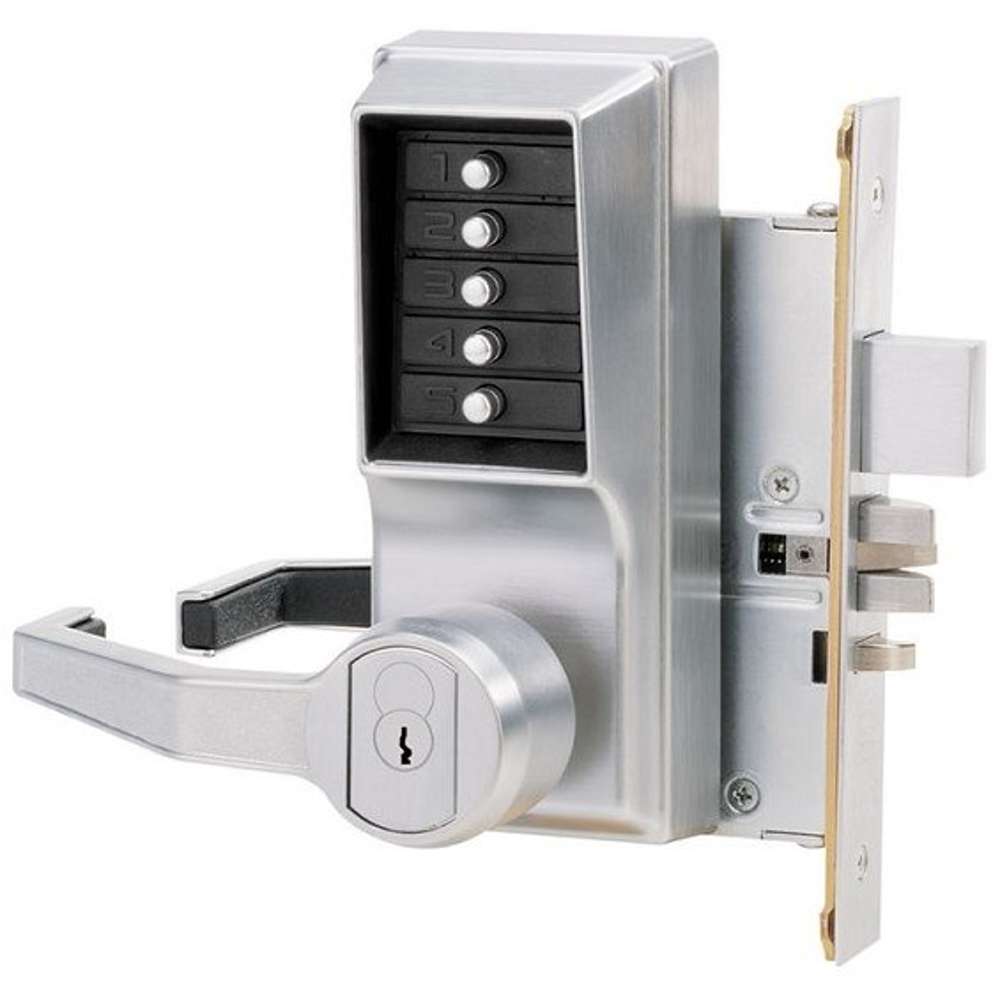

Simplex 8100 Series Pushbutton Grade 1 Mortise Combination Lock
8100 Series Pushbutton Lock for Mortise Lock by Simplex / Unican
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.
The Simplex 8100 Series Mechanical pushbutton lock, with mortise locking device options and lever handle, provides exterior access by combination, while allowing free egress. Easy to install on Wood or Metal Doors. Standard (86) Mortise Preparation.
Access Control: Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress.
No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements.
Locking Device: Mortise with 1" (25mm) deadbolt, 3/4" (19mm) two-piece anti-friction latch.
Number of Codes: Single access code - one easy-to-manage code for all users.
Programming: Lock is easily programmed via keypad without removing lock from the door.
Handing: Factory-handed; not field reversible.
Economical: A cost effective access control solution.
Passage Mode (8146 & 8148) - allows access without using the lock entry mode. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
Deadbolt (8148) - added security of 1" deadbolt. Access permitted by combination or key override.
Lockout (8146 & 8148) - disables the lock from the inside so that the entry codes cannot be used to gain access. Access is permitted using key override.
Door Thickness: 1-3/4" to 2-1/4".
Strike: 4-7/8" ANSI.
Backset: 2-3/4" backset. Finish: Satin Chrome 26D (626).
Key Override (Optional): Key Override models (8146 & 8148) accept removable core cylinders.
** All Simplex Key Override models are sold Less Cylinder. **
Operation Modes:
- 8146 - Combination Entry with Key Override & Passage Mode Capability & Lockout Mode. Choose Keyway: Schlage (8146S), Best (8146B), Corbin Russwin (8146C), Sargent (8146R), Medeco-Yale (8146M). Passage Mode: Allows access without using lock entry code, activated from inside. Lockout Mode: Disables lock from the inside so that entry codes cannot be used to gain access. Access permitted by using key override only.
- 8148 - Combination Entry with Key Override & Passage Mode Capability & Lockout Mode & Deadbolt. Choose Keyway: Schlage (8148S), Best (8148B), Corbin Russwin (8148C), Sargent (8148R), Medeco-Yale (8148M). Passage Mode: Allows access without using lock entry code, activated from inside. Lockout Mode: Disables lock from the inside so that entry codes cannot be used to gain access. Access permitted by using key override only. Deadbolt (8148 Model Only) - Added Security of 1" Deadbolt.
Special Order Information: For pricing on any function, keyway or finish of the Simplex 8100 Series not found on this page please contact Taylor Security direct via e-mail (sales@taylorsecurity.com) or call us toll-free at 1-800-676-7670.
