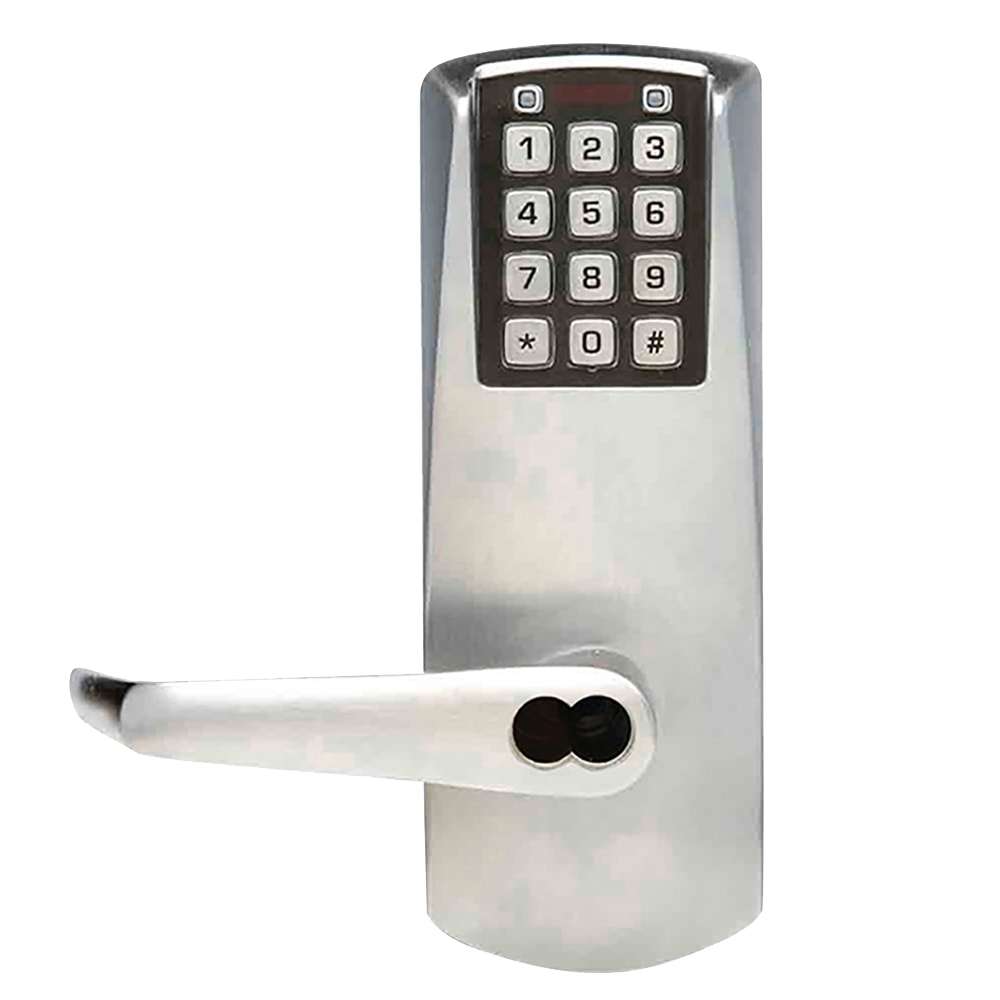

Kaba Access E2066BLL-626-41 E-Plex 2000 Mortise Lock

SKU # SI/E2066BLL-626

The Kaba Access E2066BLL-626-41 E-Plex 2000 Mortise Lock

  • Construction: Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
  • Handing: Non-handed, pre-assembled for left-hand door installation—easily changed in the field
  • Backset:
    • Cylindrical: 2¾" (70 mm) backset, 2⅜" (60 mm) backset
    • Mortise: 2¾" (70 mm) backset
    • Exit Trim Model: Varies by Exit Device
  • Latches:
    • Cylindrical Models: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
    • Mortise Models: ¾" (19 mm) latch, 1" (25 mm) deadbolt (optional)
  • Strikes: Cylindrical locks packaged standard with both ANSI A115.3 "T" Strike and A115.2 ASA Strike
  • Minimum Stile Required: 5" (127 mm)
  • Key-in-Lever Cylinder: Kaba 1539 6-pin cylinder—Schlage "C" Keyway
  • Interchangeable Core: Small format—Best and equivalent (6 or 7-pin length); cylinder not included
G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$482.90

Description:

Description:

Kaba Access E2066BLL-626-41 E-Plex 2000 Mortise Lock

Number of Codes: Multiple Users—100 Codes
Handing: Non-handed; pre-assembled for left-hand door installations—easily changed in the field
Audit Trail: The most recent 1,000 Events are recorded in memory, including the use of mechanical key override. Software is required to view audit Events.
Programming: Lock is easily programmed via keypad without removing lock from the door or with optional Microsoft® Excel®-based software

Key Override (Optional):

  • Optional Key-in-Lever cylinder in Schlage “C” Keyway with black Kaba cap
  • Small format—Best and equivalent (6 or 7-pin length)Operation Modes
  • PIN access
  • Passage—can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours
  • Lockout

Authority Levels: Five different levels allow who has access to specific lock functions, including: Service Codes—programmed for one-time access or “come-and-go” access for 1 to 24 hours

Exit Device Compatibility:

  • Arrow Rim # 3800
  • Corbin Rim # 5200
  • Detex Rim # F1001
  • Detex Surface Vertical Rod #s 20/F20
  • Dorma Rim # F9300
  • Precision Rim #s 21/FL21
  • Precision Surface Vertical Rod #s 22/FL22
  • Sargent Rim # 8800
  • Von Duprin Concealed Vertical Rod #s 9847/9947
  • Von Duprin Mortise #s 9875/9975
  • Von Duprin Rim #s 89/99
  • Von Duprin Surface Vertical Rod #s 9827/9927
  • Yale Concealed Vertical Rod # 7160
  • Yale Rim # 7100

ATTENTION: Compatibility is subject to change if modifications are made by Exit Device manufacturers
