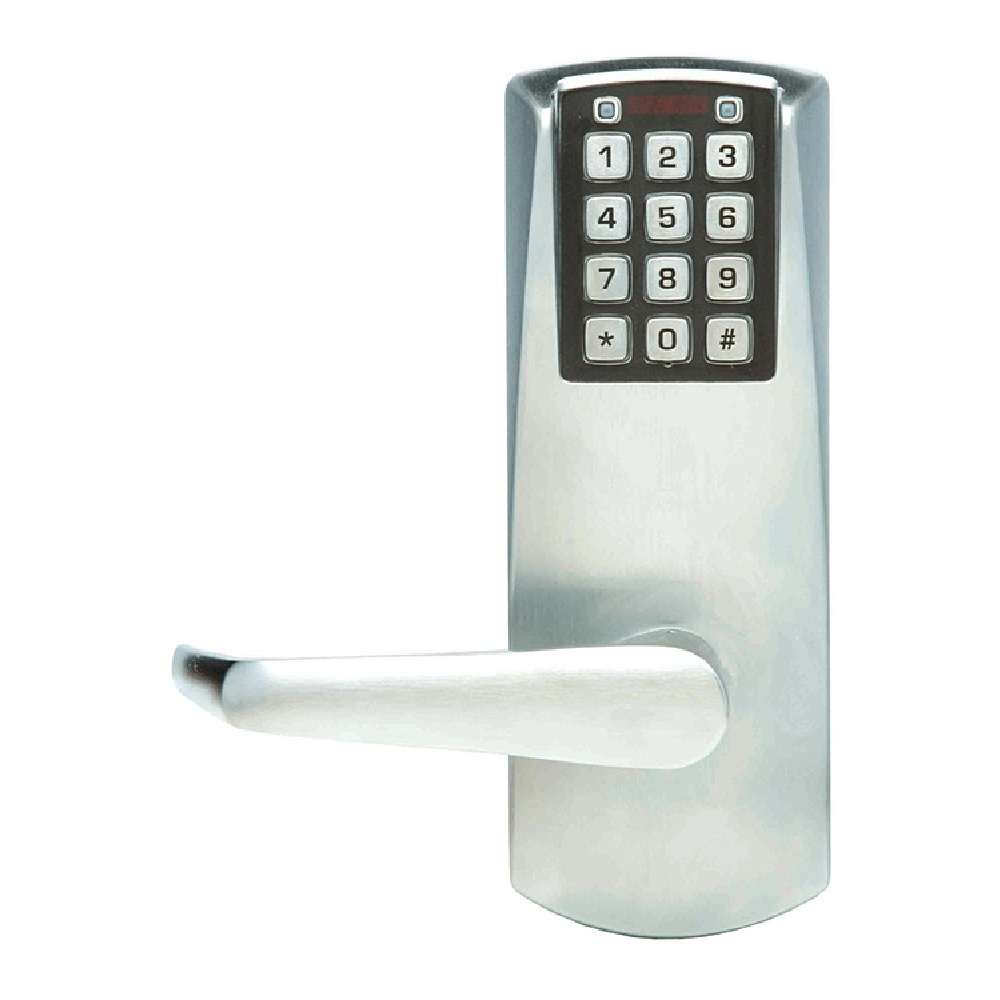

Kaba Access E2067XSLL-626-41 E-Plex 2000 Mortise Lock

Kaba Access E2067XSLL-626-41 E-Plex 2000 Mortise Lock

• Eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 access codes
• Construction: Heavy-duty commercial Grade 1 lockset, solid cast exterior housing, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
• Handing: Non-handed, pre-assembled for left-hand door installation—easily changed in the field
• Backset:
  • Cylindrical: 2¾" (70 mm) backset, 2⅜" (60 mm) backset
  • Mortise: 2¾" (70 mm) backset
  • Exit Trim Model: Varies by Exit Device
• Latches:
  • Cylindrical Models: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
  • Mortise Models: ¾" (19 mm) latch, 1" (25 mm) deadbolt (optional)
• Strikes: Cylindrical locks packaged standard with both ANSI A115.3 "T" Strike and A115.2 ASA Strike
• Minimum Stile Required: 5" (127 mm)
• Key-in-Lever Cylinder: Kaba 1539 6-pin cylinder—Schlage "C" Keyway
• Interchangeable Core: Small format—Best and equivalent (6 or 7-pin length); cylinder not included
