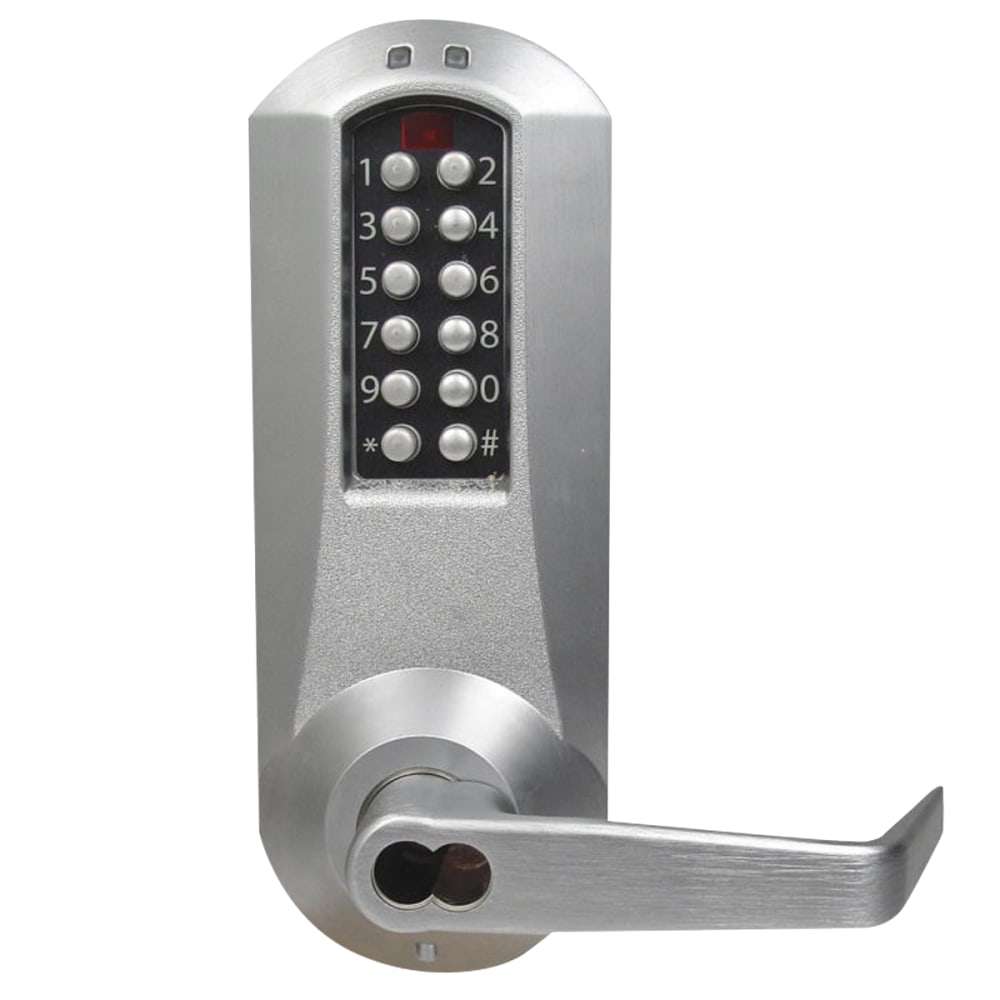

Kaba Access E5066CWL-626-41 E-Plex 5000 Mortise Lock
The Eplex E5066CWL-626-41 series of Eplex Electronic Pushbutton Lock eliminate problems and costs associated with issuing, controlling and collecting keys and cards. The E-Plex 5000 Electronic Pushbutton Lock Series provides exterior access by combination, while allowing free egress. Unican Kaba Ilco Simplex is the leader in top of the line security solutions that presents industrial strength combination lock with high quality security products for over 100 years now. For a security lock, the highly weather resistant Eplex 5000 Series earns an impressive Grade 1 rating from ANSI (American National Standards Institute) - this rating is the highest one they give out for quality. The Eplex 5000 grants entry upon successful validation of a 1 to 5 digit code that you pre-program into the lock. Being vandal protected hardware, the Eplex series of PIN based locks find widespread acceptance in high-traffic commercial, institutional, and government buildings throughout the world.
Features and Benefits:
- Core is not included
- Satin Chrome Finish
- Electronic Pushbutton Lock
- Extra heavy-duty Grade 1 lock with solid cast housings construction
- Multiple Users with upto 100 Codes which can be upgraded to 300 Codes with optional software
- ADA compliant lock
- American Steel/Mortise (ASM) access function
- With Winston lever
- Batteries located in interior housing cover that offers quick and easy battery replacement for institutions - lock data is maintained even if batteries fail
- Non-handed operation; pre-assembled for left-hand door installations and is easily changed in the field
- Audible and visual indicators alongwith low battery visual indicator
- Locks are programmed via keypad or with optional Microsoft Excel-based software
- Recently 9,000 lock events are recorded in memory including use of the mechanical key override
- Vandal resistant hardware with solid metal pushbuttons
- It easily installs on wood or metal doors with four bolt installation and no wiring
- Prepped for Corbin Russwin removable core
- Very ease of installation as the LectroBolt eliminates wiring to or through the door with no risk of pinched wires
- Std Mortise
- Minimum Stile required: 5" (127 mm)
- 1-1/4" (32 mm) face plate
- No deadbolt (non-handed)
- 3-year warranty from date of installation; built-in warranty counter in lock memory
