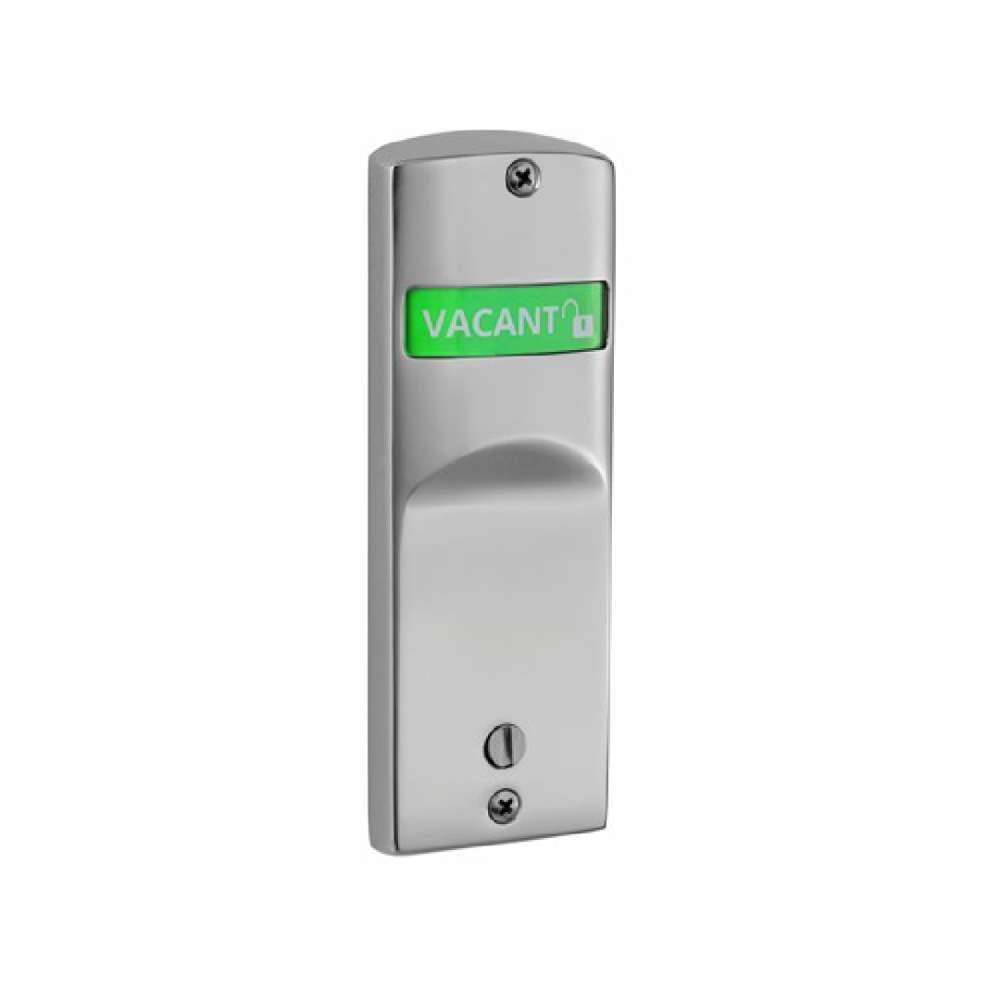

Arrow ASC194 Inside Schlage 1-3/4" Chrome 626 V20 Privacy

features include:

• Handing – Handed; field reversible. The lockset can be re-handed without disassembling the lock case.
• Door Thickness – 1-3/4" (4mm) standard.
• Backset – 2-3/4" (70mm).
• Lockcase – Heavy gauge steel, with zinc dichromate finish for corrosion resistance. 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).
• Armored Front – Heavy gauge steel, 8" (203 mm) x 1-1/4" (32mm) x 3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
• Faceplate – Wrought brass, bronze or stainless steel. Attached by machine screws to lockcase front.
• Latchbolt – Stainless steel, 2 piece mechanical with anti-friction insert. 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
• Auxiliary Latchbolt – 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.
• Deadbolt – One-piece stainless steel, 19/32" (15mm) x 1 1/4" (32mm) x 1" (25mm) throw.
• Hub – Knob: nickel steel, 5/16" (8mm) and 9/32". Lever: nickel steel, 5/16" (8mm).
• Spacing – Center to center, hub to cylinder: 3-5/8" (92mm).
• Center to center, hub to turnpiece 2-7/16" (62 mm).
