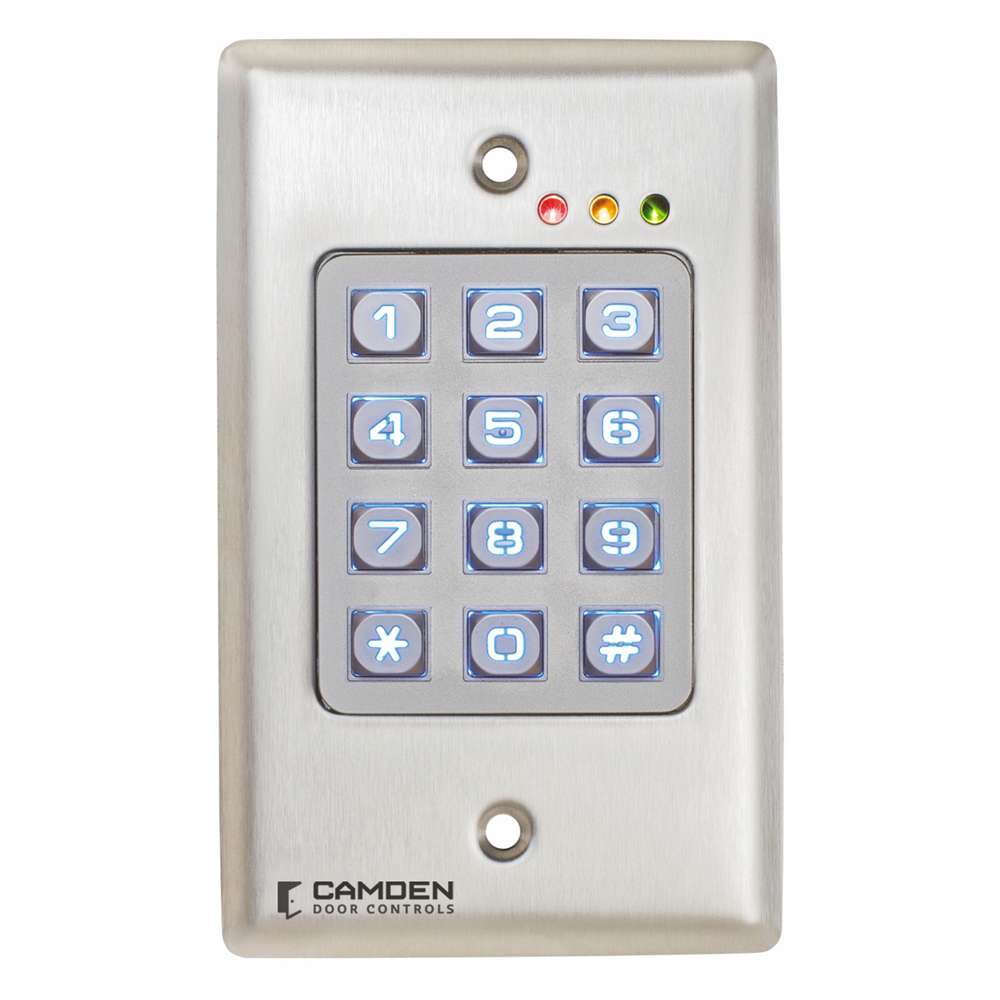

Camden CM-120WV2 Outdoor SS 999 Users Metal Backlit Keypad

Camden CM-120WV2 Outdoor SS 999 Users Metal Backlit Keypad

The Camden CM-120 Series keypads lead the industry in performance and value. ADA compliant and built to last, these rugged and versatile keypads feature stainless steel faceplates, single gang flush mounting (enclosures are available for surface mount), 12/24 VAC/DC operation and a complete range of programming features. Vandal-resistant all-metal keypad with blue backlighting for night time use.

CM-120WV2 Application: Outdoor / Vandal Resistant / Metal Backlit Keypad / 999 Users / 12/24V AC/DC.

Features and Benefits:

- Digital keypads provide audible and visual annunciation/confirmation.
- CM-120WV2 features backlit, weatherproof and vandal resistant metal keypad.
- 12/24V AC/DC Operation.
- 999 Users, 10 million possible codes.
- Variable or fixed length 1 to 8 digit codes.
- (2) 3 AMP Form 'C' Relays.
- Independent Relay Control.
- Flush mount single gang stainless steel faceplate.
- 3 LED's + PIEZO buzzer.
- 1-255 second time delay.
- Request to exit (REX) input.
- Door contact input.
- Global lock-out feature.
- Non-Volatile eeprom memory.
- Includes tamperproof screws and driver.

Specification Data:

- Voltage: 12/24V AC/DC.
- Mounting: 2 x #6-32 Machine Screws.
- Tempature: -40°F to +185°F (-40° to +85°C).
- Current Draw: 30 MA Standby, 90 MA max.
- Response Time: 0.3 Seconds.
- Relay Contact Rating: 3A @ 24VDC.
- Dimensions: 4-1/2" H x 2-3/4" W x 3/4" D.
