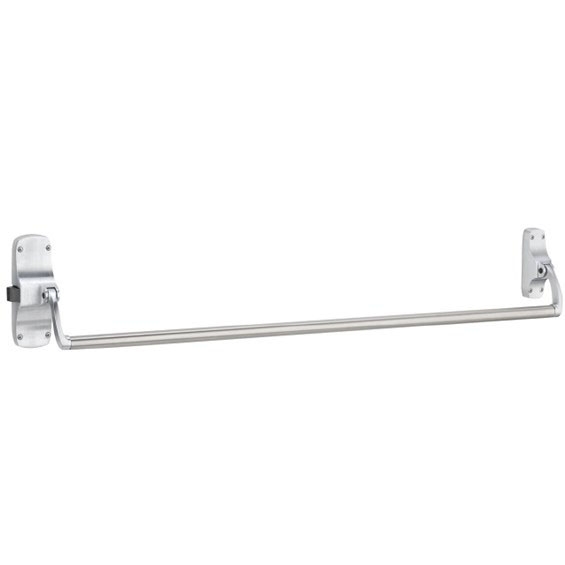

Von Duprin Rim Exit Device, Exit Only
The Von Duprin 88-Series cross bar style of exit device is a traditional crossbar design with proven service on rugged applications. Exit only, no outside operation. Trim sold separately.
Exit devices are a critical part of the Fire and Life Safety egress system and will provide safe and reliable service when properly applied and maintained. Von Duprin designs and manufactures exit devices in accordance to ISO 9001 Quality Management System and meets or exceed accepted U.S. domestic and International standards. All 88 series exit devices are UL listed for Accident Hazard or Fire Exit Hardware, and are tested in accordance to ANSI A156.3, 2008, Grade 1.
The Von Duprin 88 Rim exit device for all types of single and double doors with mullion, UL listed for accident hazard installations. Covers stock hollow metal doors with 86 or 161 cutouts. This device is field reversible.
Features and Benefits:
- Exit Only function - Trim not included.
- Device is furnished with standard 299 strike in dull black finish.
- For all types of single and double doors with mullion.
- Covers stock hollow metal doors with 86 or 161 cutouts.
- Device Functions - Ship ready for functions; EO, DT, NL, TP, L, K.
- Field reversible.
- Hex key dogging.
- 3/4" throw latch bolt.
- Available in Oil Rubbed Bronze (10B) & Satin Chrome (26D) finish.
Specification Data:
- ANSI A156.3, 1994, Grade 1.
- UL listed for Panic Exit Hardware.- UL listed for Panic Exit Hardware.
- Crossbar height to finished floor - 36-13/16".
- Crossbar projection - neutral 4-3/4", depressed 4".
- Lock stile case - 8-1/4" x 2-3/4" x 15/16".
- Hinge stile case - 6" x 1-3/4" x 15/16".
- Crossbar tubing - 1" (25mm) outside diameter.
Exit Trim Option:
880DT (Dummy Trim): Pull when dogged.
880NL (Night Latch Trim): Key retracts latchbolt. Rim cylinder not included.
880TP (Thumbpiece Trim): Key locks & unlocks. Rim cylinder not included.
373L (Entrance Lever Trim): Key locks & unlocks lever. 1-1/4" Mortise cylinder not included.
** All Von Duprin Exit Device Trims are sold Less Cylinder.**
