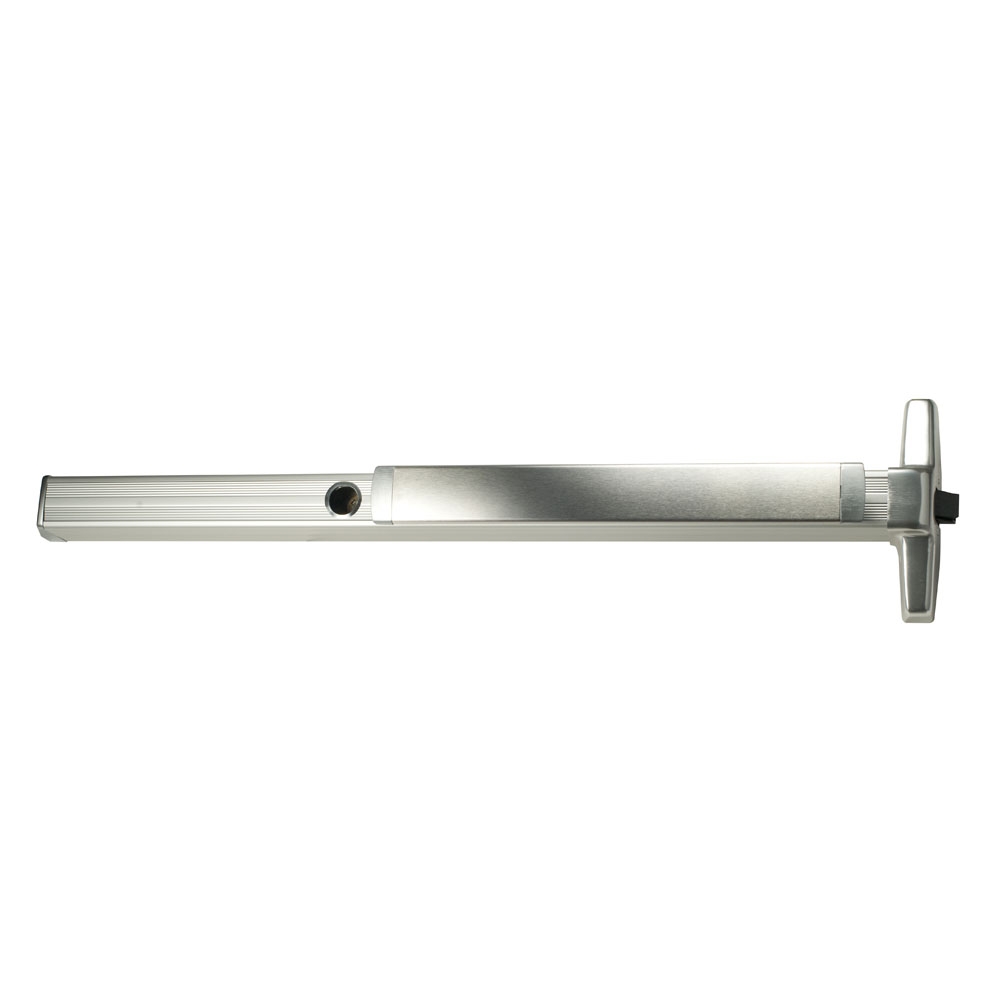

Von Duprin CD33A-EO-3-US26D Narrow Style, Rim Exit Device
The 33A Series is UL listed for Panic Exit Device Hardware and has a deadlocking latch bolt that prevents forced latch bolt retraction providing higher security for your openings.
Technical Specifications:
- Mechanical Function: Exit Only
- Base Material: Brass or Bronze
- Device Type: Rim
- Device Length: 36 In.
- Minimum Stile Size: Narrow
- Door Material: Metal or Wood
- Door Width: 26 In. - 36 In.
- Door Thickness: 1-3/4 In.
- Product Type: Rim Exit Devices
- Device Centerline from Finished Floor: 39 13/16" (1011 mm); 39 11/16" (1008 mm) with Mullion
- Center Case Dimensions: 8 3/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
- Mechanism Case Dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar Neutral – 3 13/16" (97 mm); Pushbar Depressed – 3 1/16" (78 mm)
- Latch Bolt: Deadlocking, 3/4" (19mm) throw
