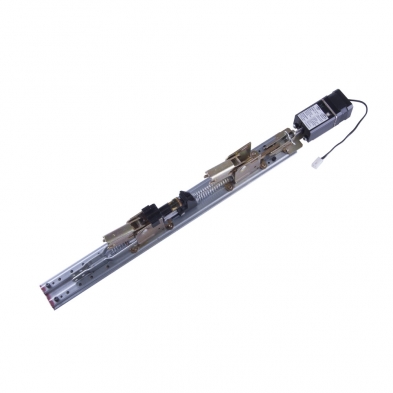

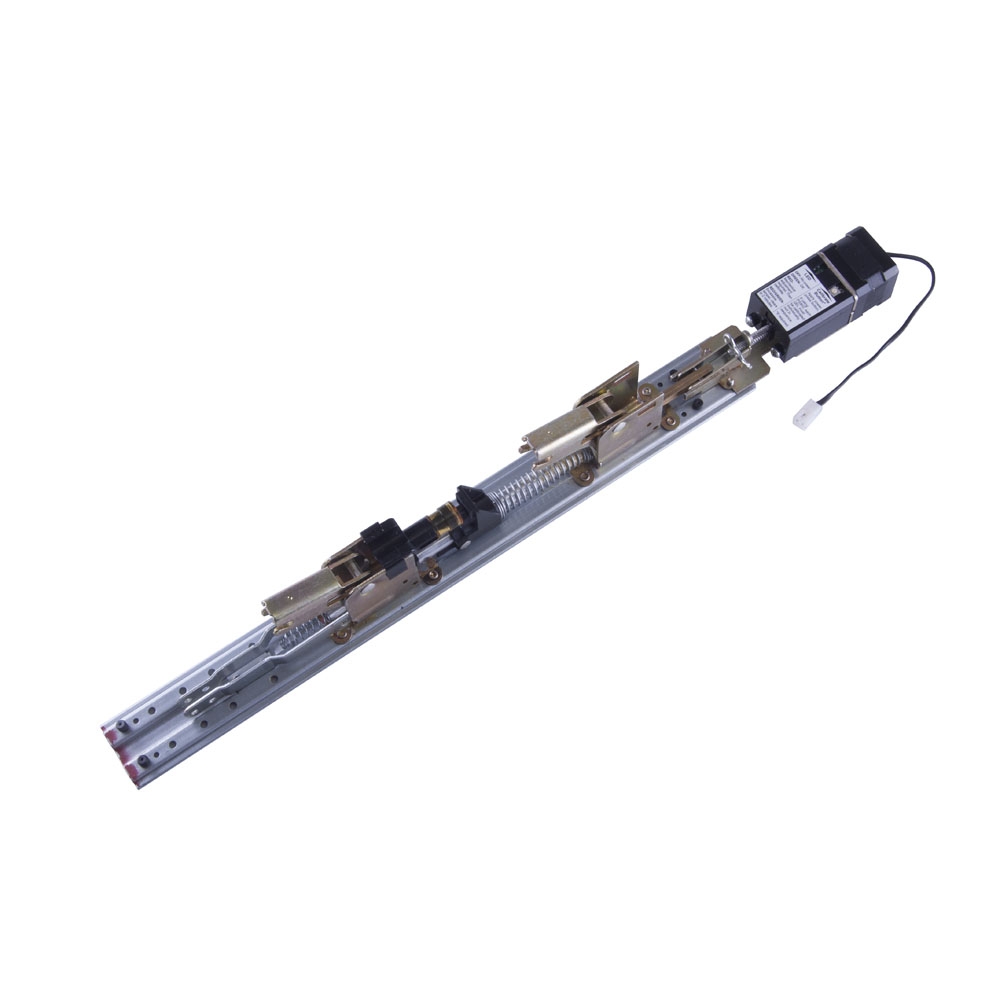

Von Duprin 958003-00 Motorized Latch Retraction Conversion
Von Duprin 958003 / 040065 Motorized Latch Retraction Baseplate Conversion Kit, For Use with 33A/35A/98/99 Devices
Quiet electric latch retraction (QEL) provides electronic control of an exit device for environments where limited operational noise is desired. The QEL option is Von Duprin’s solution of choice for hospitals, libraries, museums and theaters where ambient noise can be disruptive. The QEL can retract a latchbolt momentarily or on an extended, scheduled basis via access control system.
The baseplate QEL conversion kit was the initial conversion kit offered when Von Duprin originally launched the QEL. With the improved design of the motor assembly and availability of the modular conversion kit, the baseplate QEL conversion kit should primarily be used when converting an EL to a motor driven QEL solution.
- Energy efficient motorized latch retraction utilizes standard 2 amp power supply, enabling longer wire runs from power source
- Quiet operation in both mechanical and electronic states
- Pushbar is pulled in electronically for quieter operation when dogged
- On-board installation and troubleshooting diagnostics built into device
- For use with 33A/35A/98/99 devices
- 958003 – for 3ft devices
- 040065 – for 4ft devices
- Requires Von Duprin power supply (not included)
- Does not include the power transfer from door to frame, the power supply, or the control operator
- UL Classified under “Accessories for Single-Point Locks and Latches and Fire Exit Hardware” (UL 10C
QEL Electrical Load:
- 24 VDC voltage
- Current Inrush – 1.0 A Inrush (0.5 sec)
- Current Holding – 0.14 A Holding
