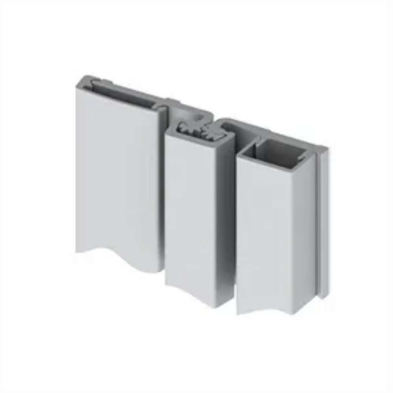

Hager 780-210HD-95-CLR Full Surface Continuous Geared Hinge

The Hager 780-210HD-95-CLR Full Surface Continuous Geared Hinge is a Full Surface Continuous Geared Hinge.

 Specifications include:

• Heavy Duty
• Full Surface Continuous Geared Hinge
• 780 Series
• Clear Anodized Satin Aluminum
• Application:  Can be used with any door and frame material
                      - Security moldings
                      - 1/32" (1 mm) inset
• Length 95 inches (2413 mm)
• Clearance: - 1/32" (1 mm) minimum recommended for hinge side - Plus standard lockside clearance
•                    - 1-5/8" (41 mm) minimum frame face required plus 3/16" (5 mm) rotational clearance
• Fasteners: - 1/4-20 x 1-1/4" Sexbolt (Screw + Post) - #12-24 X 11/16" Flat Head Self-Drill Screws
• Door Reinforcement: - None required
• Frame Reinforcement: - None required to 200 lbs. Heavier weigh use 16-gauge channel.
• Fire Rating: - Up to 3 hr. metal and 90 min. wood composite (with studs).
• Material: - Aluminum 6063-T6
