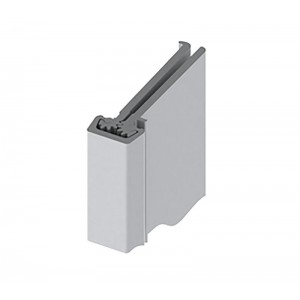

Hager 780-224HD-95-CLR Concealed Leaf Continuous Hinge

SKU # HG/780-224HD-95-CLR

The Hager 780-224HD-95-CLR Concealed Leaf Continuous Hinge is a Concealed Leaf Continuous Hinge.

 Specifications include:

  • Heavy Duty
  • Concealed Leaf Continuous Hinge
  • 780 Series
  • CLR - Clear Anodized Satin Aluminum
  • Application:  - Door edge protection lip
                         - Frame leaf alignment rib for proper hinge and door location
                         - 3/32" (2 mm) inset
  • Length 95 inches (2413 mm)
  • Certifications: - Conforms to ANSI A156.26 for A31011G
  • Clearance: - 5/16" (8 mm) hinge side
  •                   - Plus standard lockside clearance
  • Fasteners: - - #12-24 X 11/16" Flat Head Self-Drill Screws
  • Door Reinforcement: - None required to 200 lbs. Heavier weigh use 16-gauge channel.
  • Frame Reinforcement: - None required to 200 lbs. Heavier weigh use 16-gauge channel.
  • Fire Rating: - Up to 3 hr. metal and 90 min. wood composite (with studs).
  • Material: - Aluminum 6063-T6
US$125.04
