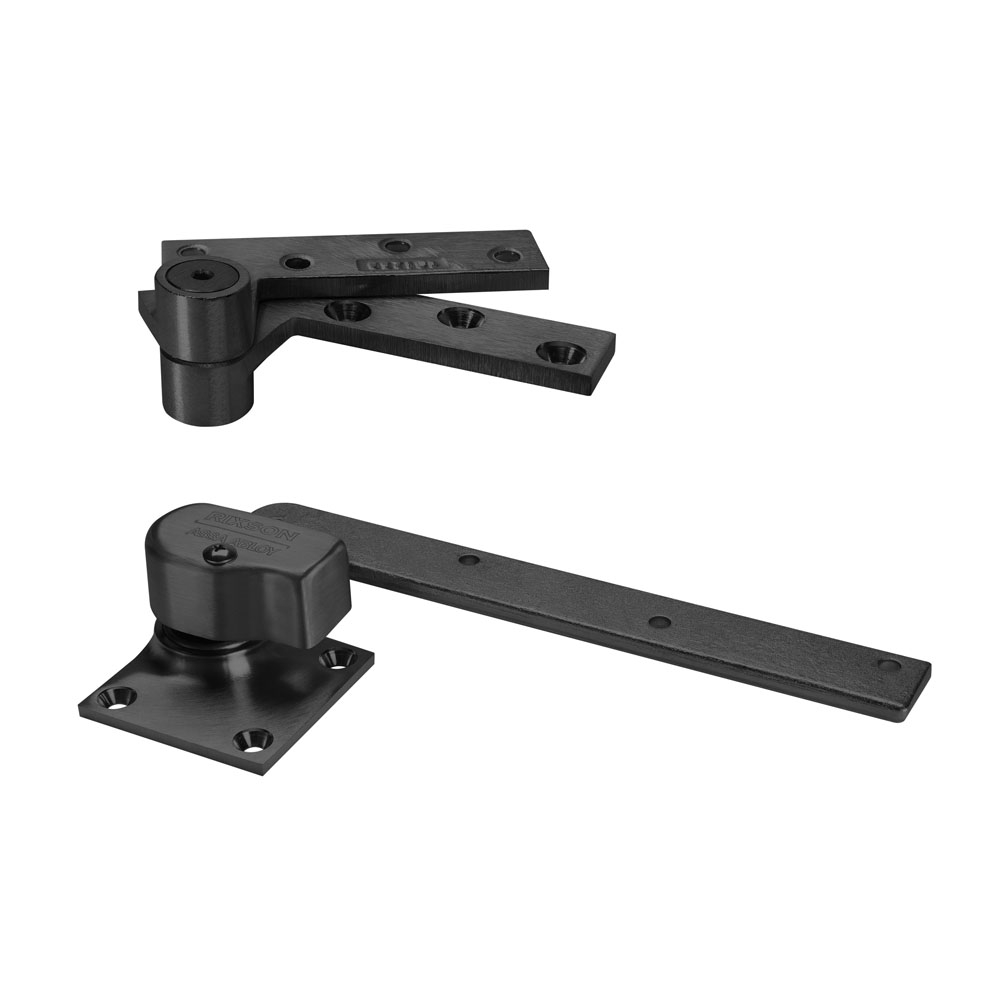

The Rixson 147-RH-613 3/4" Offset Pivot, Includes 180 Top Pivot is a Right-Handed Offset Pivot with a 180 Top Pivot. Rixson Pivot Sets provide the best possible means of hanging a door. They are designed to work with the laws of physics to provide long-lasting performance and reliability. The weight of the door is supported at the bottom by the floor, reduces stress on frame, and heavy-duty hardened steel spindles. Rixson Offset Pivots provide better weight distribution and can accommodate taller doors.
Features include:
- Offset Pivot
- 180 Top Pivot included
- Oil Rubbed Bronze
- Exterior or Interior Doors
- Weight to 600 lbs. when using the appropriate number of intermediate pivots
- Door Width up to 4'0" (1219mm)
- Right Handed
- Standard-Duty Pivot Set
- Standard top pivot 180 included
- M19 intermediate pivot required (order separately)
- Bottom pivot mounts directly to floor
- Uses same arm and cap as 27 floor closer
- Available for fire door assemblies up to three hours (ferrous material) – specify F147. Intermediate pivot required by UL. Specify FM19 (order separately)
- For 20-minute label suffix “–20” to the part number
- Non-ferrous base material
- Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot
- 3/4" (19mm) offset (measured from centerline of pivot to face of door)
- Available for 1-1/2" (38mm) offset (door weight 350 lbs.) for doors with cladding or frame molding
- Door edges must be beveled 1/8" in 2"
- Furnished with wood and machine screws
- Extended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standard
- Doors will swing 180°, trim permitting
