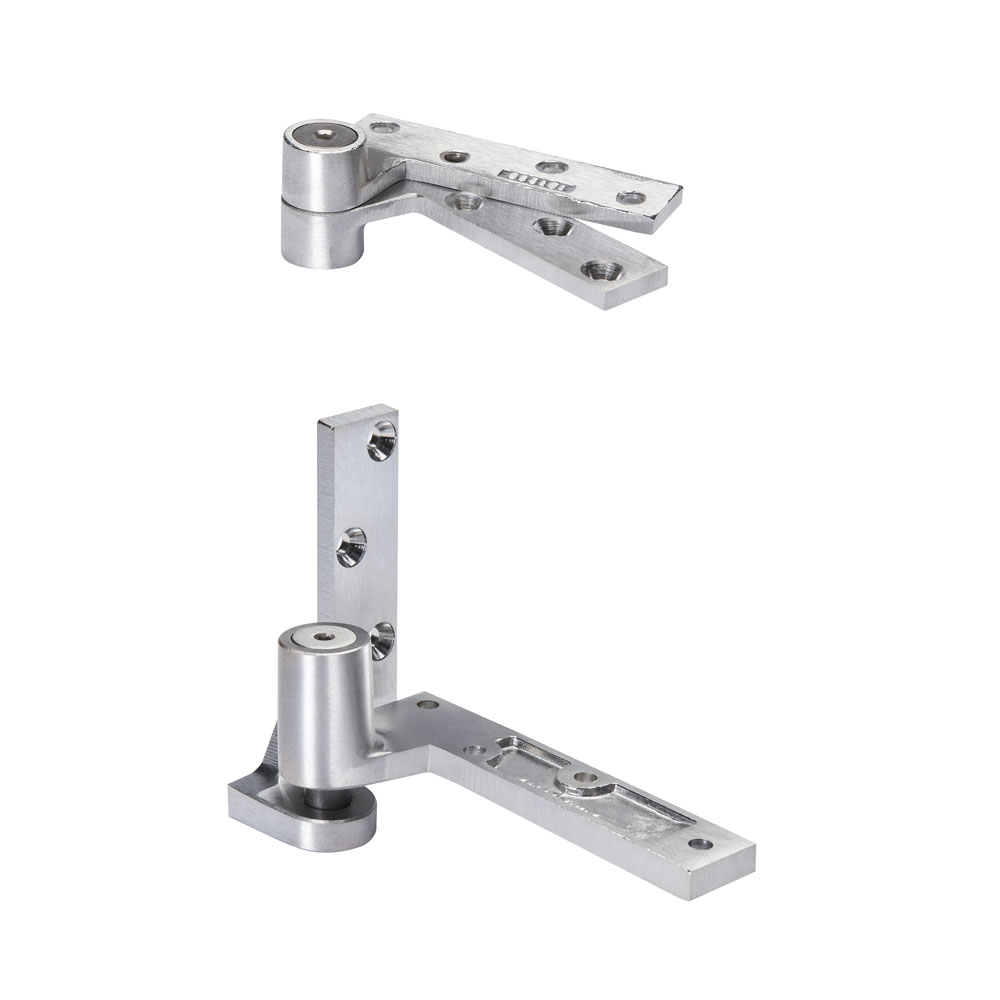

The Rixson 195-LH-626 3/4" Offset Pivot, Includes 180 Top Pivot is a Left-Handed Offset Pivot with a 180 Top Pivot. Rixson Pivot Sets provide the best possible means of hanging a door. They are designed to work with the laws of physics to provide long-lasting performance and reliability. The weight of the door is supported at the bottom by the floor, reduces stress on frame, and heavy-duty hardened steel spindles. Rixson Offset Pivots provide better weight distribution and can accommodate taller doors.
Features include:
- Offset Pivot
- 180 Top Pivot included
- Satin Chrome
- Exterior or Interior Doors
- Weight to 450 lbs. when using the appropriate number of intermediate pivots
- Door Width up to 4'0" (1219mm)
- Left Handed
- Jamb Attached Pivot Set
- Standard top pivot 180 included
- 119 or M19 intermediate pivots are recommended (order separately)
- Bottom pivot mortised into side jamb
- Pivot set can be vertically adjusted up to 3/16" (5mm) after installation without the use of shims
- Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot
- Non-ferrous base material
- Available for fire door assemblies up to three hours. Specify F195. Intermediate pivot required by UL. Specify FM19 (order separately)
- 3/4" (19mm) offset (measured from centerline of pivot to face of door)
- Door edges must be beveled 1/8" in 2"
- Weight of door is borne by floor portion
- Furnished with wood and machine screws
- Extended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standard
- Doors will swing 180°, trim permitting
