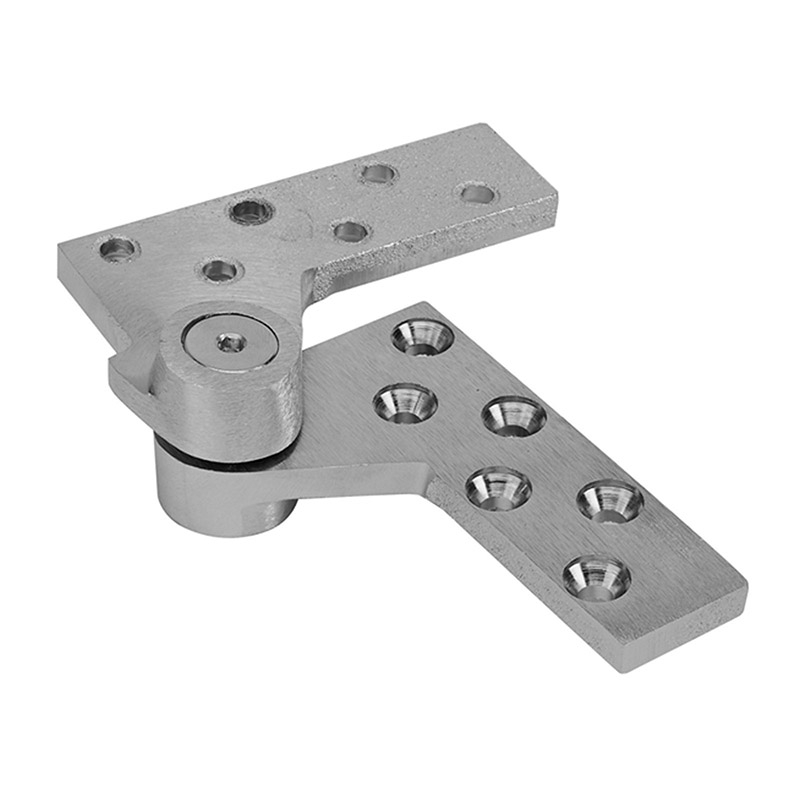

The Rixson L180-X-1-3/4-DOOR-626 3/4 Offset Hung Pivot is a Satin Chromium Plated, 3/4" Offset Hung Pivot.
- 3/4 inch Offset Hung Pivot
- Lead-Lined/Heavy/High Traffic Doors
- Full Mortise
- Non-handed
- Standard top pivot for L147, L117 pivots and L27 floor closers
- Doors with lead lining under the skin should also use this product
- Screw holes spaced to straddle lead in the middle of the door
- Accommodate lead lined door thickness: 1-3/4" (44mm)
- Non-ferrous base material
- 3/4" (19mm) offset (measured from centerline of pivot to face of door)
- Furnished with wood and machine screws
- Satin Chrome
